CGEF302TPFA 03 – BODY

CGEF302TPFA 03 – BODY

Written by

in

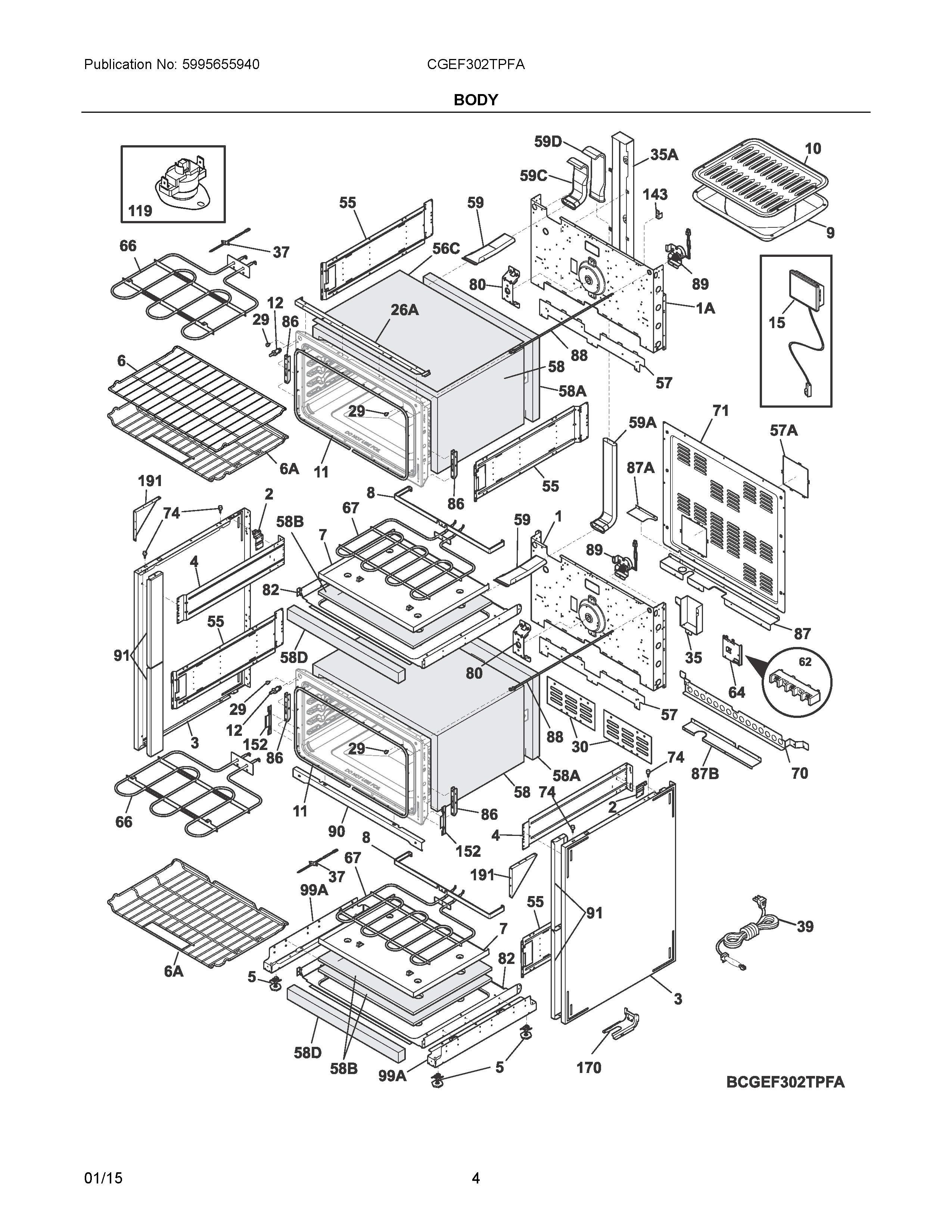

CGEF302TPFA 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIC5304436864 Frigidaire WASHER
NI807597603 Frigidaire Oven Screw
NIWCI 807705101
NIA316418900 Frigidaire Oven Screw
NIA318946400 Frigidaire Oven Bulb
NI316303501 Frigidaire Assembly Harness
NIAWCI 807504601
NIC5304536404 Frigidaire Strap
NIA316247300 Frigidaire Oven Catalyst
NIA318167300 Frigidaire Clip
NI316021109 Frigidaire Oven Screw
NIA316247900 Frigidaire Oven Spacer
NI5303289910 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NIWCI 5304500101
NIB5303311164 Frigidaire Oven Spring
NIA316001017 Frigidaire Screw
1BACK, MAIN, LOWER OVEN
1ABACK, MAIN, UPPER OVEN
2WCI 807251601
3807226106 Frigidaire Range Black Side Body Panel
4WCI 807251501
5Screw,leveling ,w/tee nut
6A139012400 Frigidaire Oven Rack
6WCI 139012100
7BOX, BAKE ELEMENT
8SHIELD, HIDDEN BAKE, REAR
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11139098502 Frigidaire Oven Seal
12316445500 Frigidaire Oven Switch
15WCI 139001800
26ABRACKET, MOUNTING, BLACK, MAINTOP
29316517600 Frigidaire Oven Spacer
305304496125 Frigidaire Shield
35WCI 318406500
35ACOVER, VENT TUBE
37SENSOR
39318113112 Frigidaire Cord
55Bracket,support ,side ,(2)
56CWCI 318641700
57AWCI 318407100
57PANEL, SERVICE
58DINSUALTION, HIDDEN BAKE, FRONT
58AINSUALTION, BACK
58BINSULATION, HIDDEN BAKE, BOTTOM
58INSULATION, WRAPPER, TOP & SIDES
59DVENT TUBE, LOWER OVEN, UPPER
59CVENT TUBE, UPPER OVEN, BLACK
59316208401 Frigidaire Oven Vent Tube
59AVENT TUBE, LOWER OVEN, LOWER
625304409888 Frigidaire Oven Terminal Block with Hardware
64WCI 318561801
665304521498 Frigidaire Element
67139211601 Frigidaire Oven Element
70WCI 318565000
71WCI 318405404
74WCI 318141910
80139021101 Frigidaire Bracket Assembly
82WCI 139024700
86318561100 Frigidaire Receptacle
87WCI 318405500
87BWCI 807544201
87AWCI 318111818
88WCI 318250207
89318095967 Frigidaire Oven Motor
90318405203 Frigidaire Oven Trim
91WCI 5304498570
99AWCI 318256210
119318004902 Frigidaire Oven Switch
143318172904 Frigidaire Bracket
152WCI 318338520
170ANTI TIP KIT, ASSEMBLY, W/TEMPLATE
191WCI 318322801
