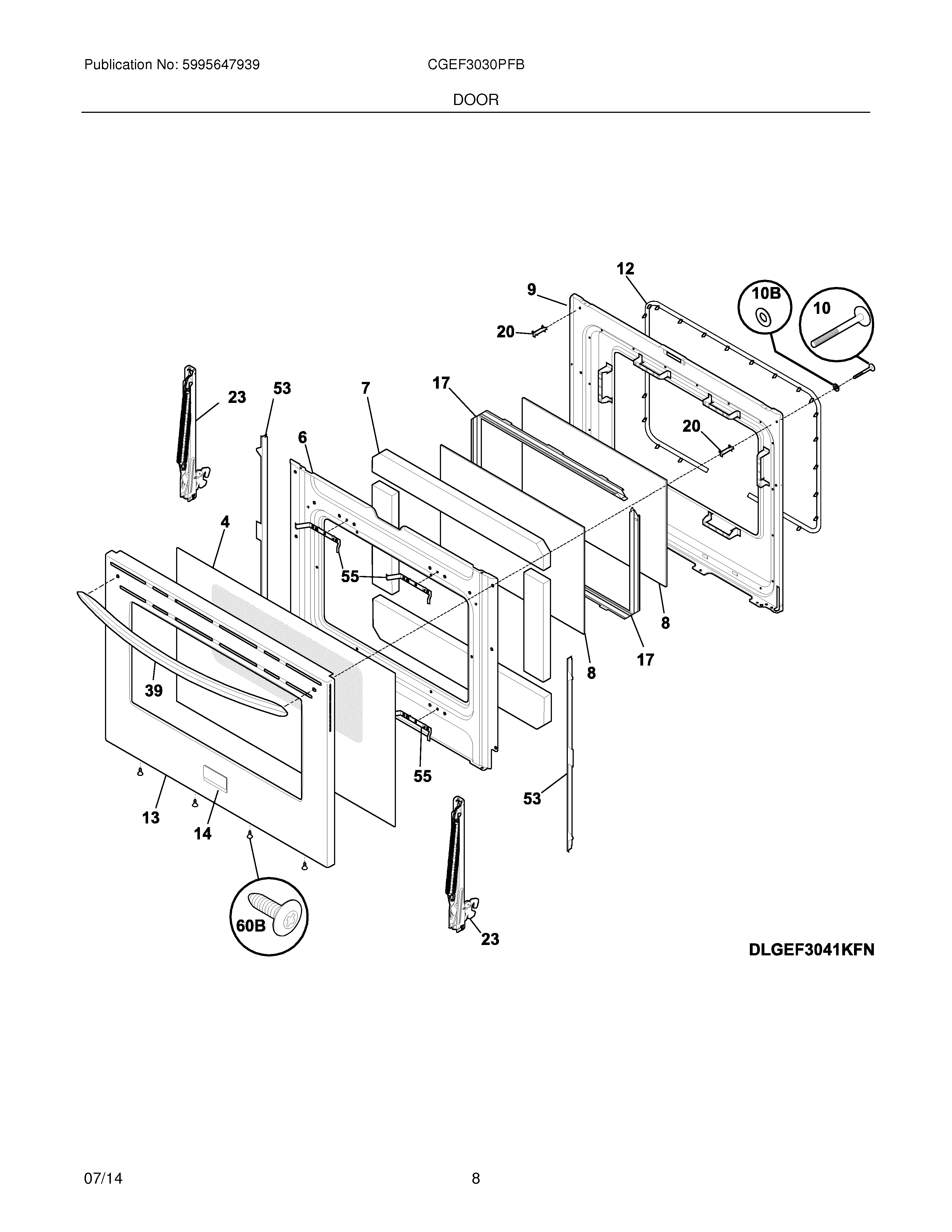

CGEF3030PFB 09 – DOOR

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316483102 Frigidaire Oven Label
NI	316418900 Frigidaire Oven Screw
4	316452758 Frigidaire Oven Outer Door Glass
6	316406328 Frigidaire Shield
7	316405600 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	WCI 316423707
10B	316008401 Frigidaire Washer P-1
10	Screw,handle mtg. ,10-24 x 1.75“ ,(2)
12	316405000 Frigidaire Oven Seal
13	WCI 316407922
14	316572700 Frigidaire Oven Nameplate
17	5304504811 Frigidaire Glass Spacer
20	316284100 Frigidaire Oven Spacer Assembly
23	316575909 Frigidaire Range Door Hinge
39	316554010 Frigidaire Stainless Steel Handle
53	5304532042 Frigidaire Shield-Filler Door
55	316408300 Frigidaire Oven Bracket
60B	316021109 Frigidaire Oven Screw
