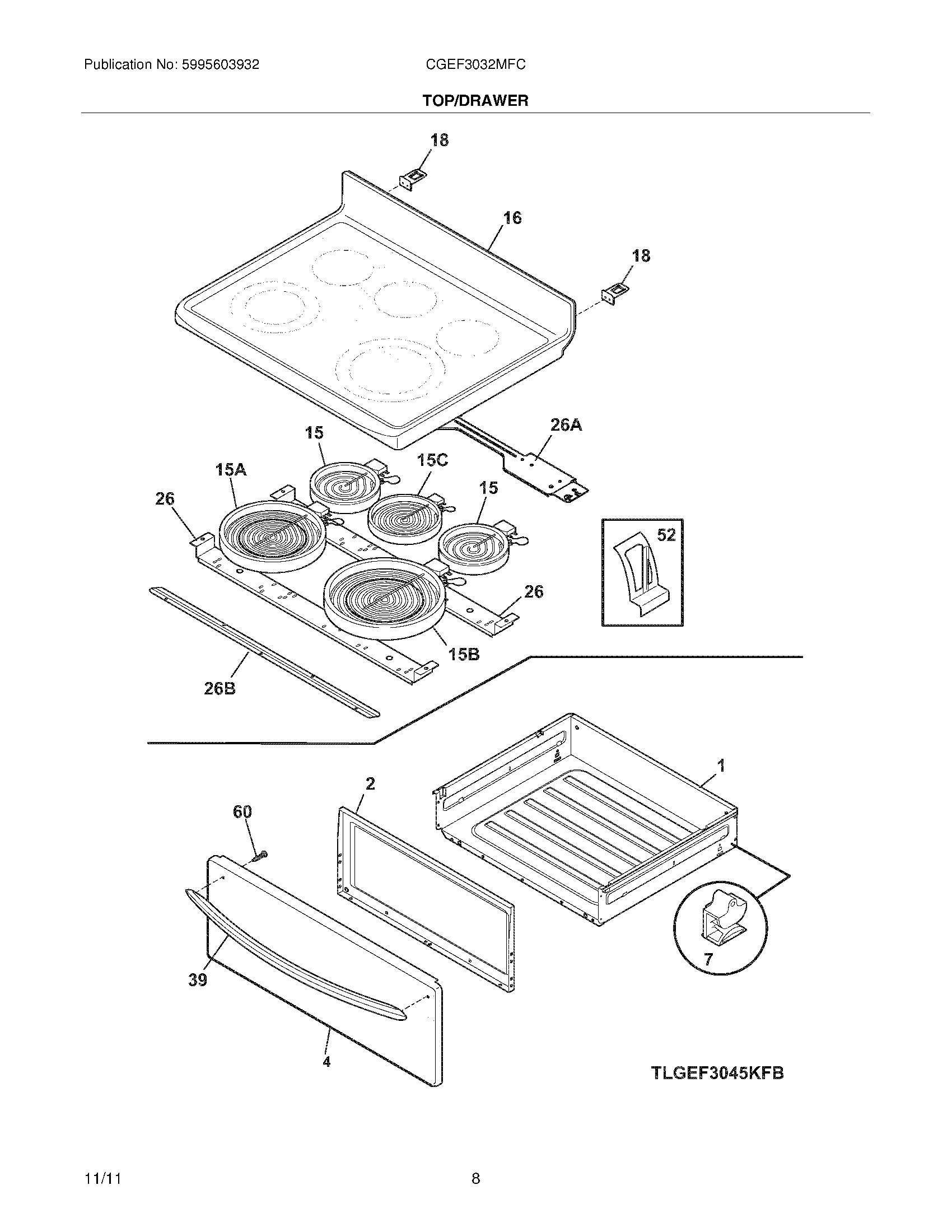

CGEF3032MFC 07 – TOP/DRAWER

CGEF3032MFC 07 – TOP/DRAWER

Written by

in

CGEF3032MFC 07 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5308014215 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316580474 Frigidaire Oven Harness
NI316021109 Frigidaire Oven Screw
NI316468101 Frigidaire Cleaner Assembly
NI5304414648 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
4WCI 316409414
7316407402 Frigidaire Range Drawer Glide
15B316282100 Frigidaire Oven Dual Surface Element Range
15318178110 Frigidaire Oven Range 6" Surface Element
15CELEMENT,RADIANT,100W,WARMER
15A5304533520 Frigidaire Element
16316531953 Frigidaire Oven Black Maintop
18316580800 Frigidaire Hinge Bracket
26BWCI 316214202
265304500986 Frigidaire Oven Channel
26A316498200 Frigidaire Oven Bracket
52316461700 Frigidaire Oven Clip Assembly
60Screw,handle mtg. ,10-24 x 1.75“ ,(2)
