CGEF3032MFC 09 – DOOR

CGEF3032MFC 09 – DOOR

Written by

in

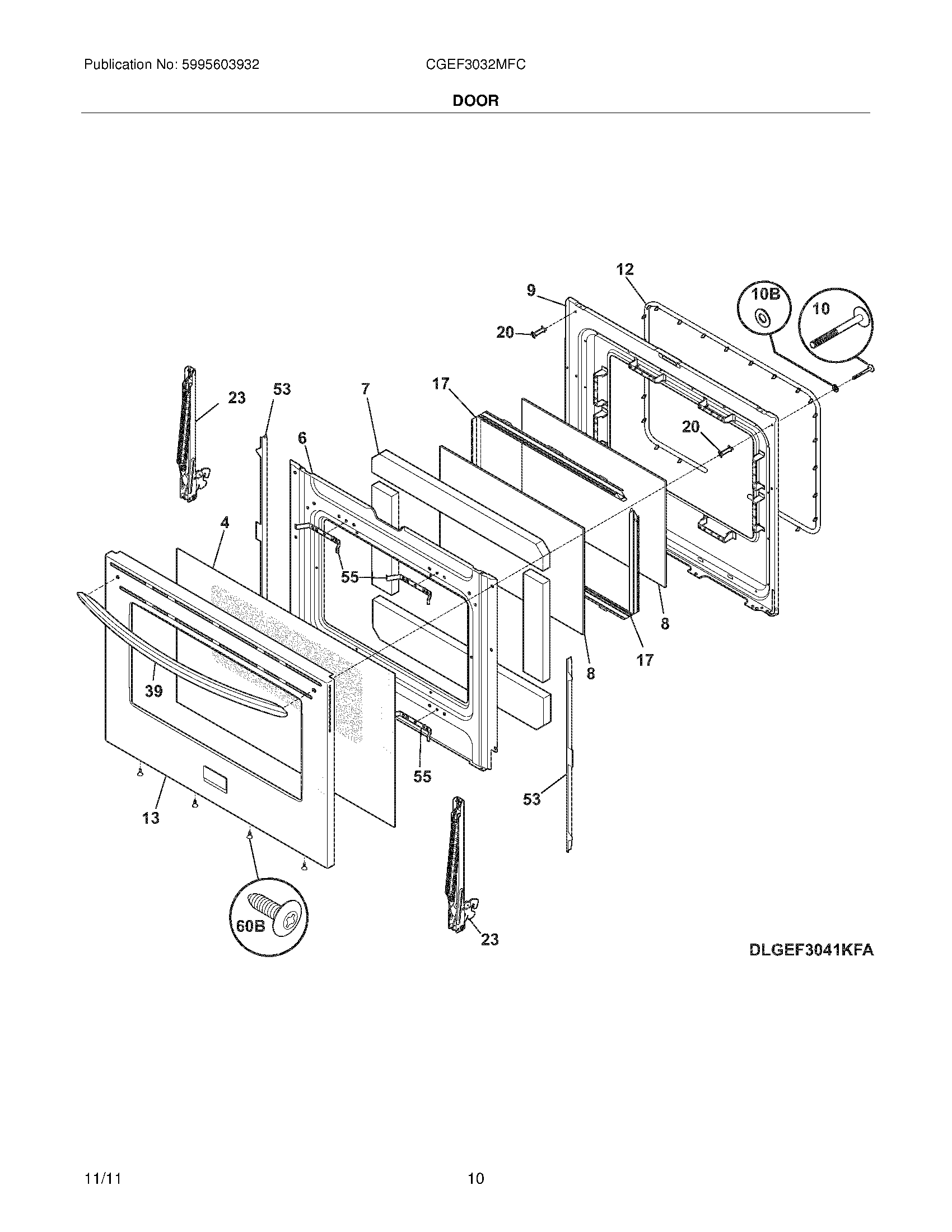

CGEF3032MFC 09 – DOOR

Products

PositionProduct
NI316418900 Frigidaire Oven Screw
NI316433603 Frigidaire Oven Label
4316452758 Frigidaire Oven Outer Door Glass
6316406328 Frigidaire Shield
7316405600 Frigidaire Insulation
85304503232 Frigidaire Oven Inner Door Glass
9WCI 316423701
10B316008401 Frigidaire Washer P-1
10Screw,handle mtg. ,10-24 x 1.75“ ,(2)
12316405000 Frigidaire Oven Seal
13WCI 316407918
175304504811 Frigidaire Glass Spacer
20316284100 Frigidaire Oven Spacer Assembly
23WCI 316456309
535304532042 Frigidaire Shield-Filler Door
55316408300 Frigidaire Oven Bracket
60B316021109 Frigidaire Oven Screw
