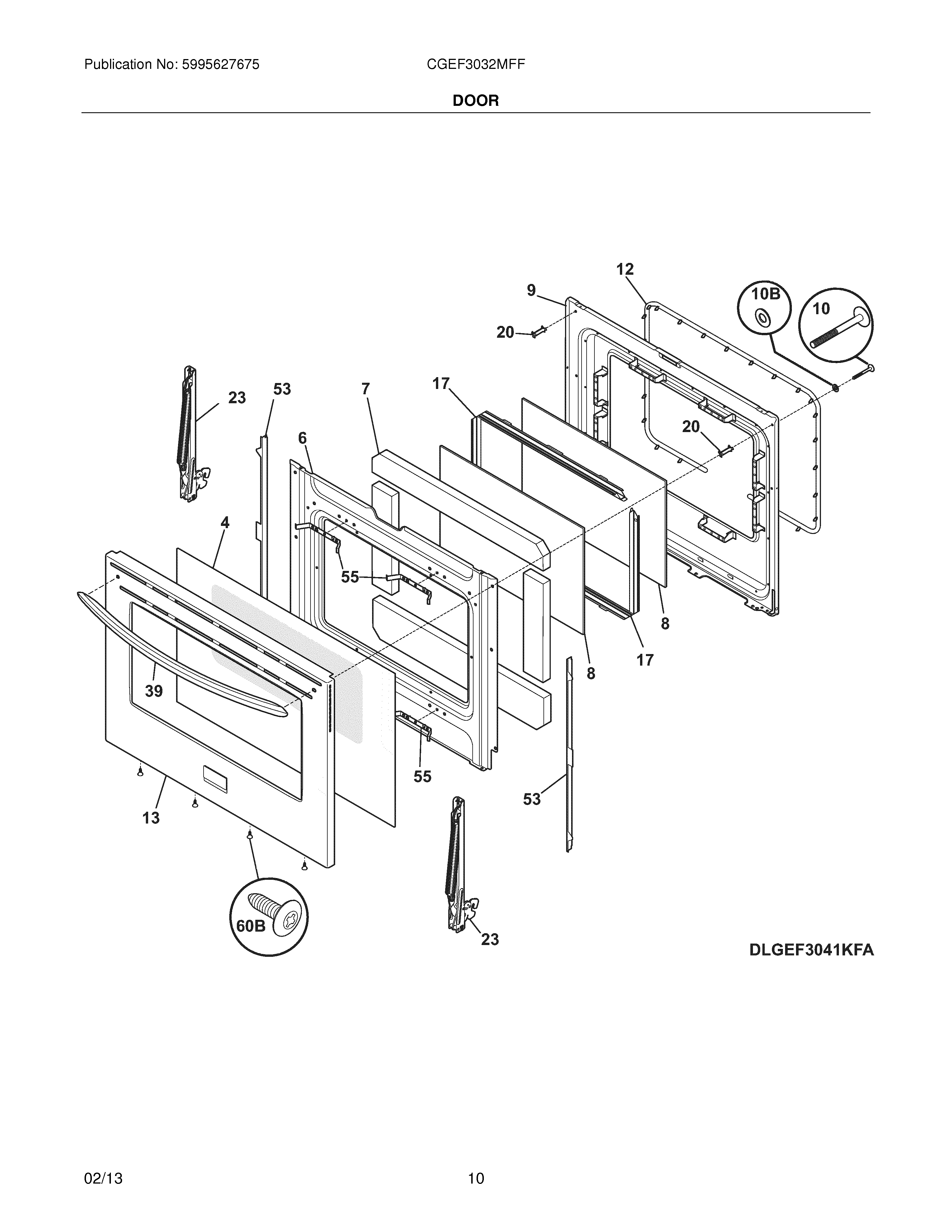

CGEF3032MFF 09 – DOOR

CGEF3032MFF 09 – DOOR

Written by

in

CGEF3032MFF 09 – DOOR

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316418900 Frigidaire Oven Screw
NI316483102 Frigidaire Oven Label
4316452758 Frigidaire Oven Outer Door Glass
6316406328 Frigidaire Shield
7316405600 Frigidaire Insulation
85304503232 Frigidaire Oven Inner Door Glass
9WCI 316423707
10Screw,handle mtg. ,10-24 x 1.75“ ,(2)
10B316008401 Frigidaire Washer P-1
12316405000 Frigidaire Oven Seal
13WCI 316407911
175304504811 Frigidaire Glass Spacer
20316284100 Frigidaire Oven Spacer Assembly
23316575909 Frigidaire Range Door Hinge
535304532042 Frigidaire Shield-Filler Door
55316408300 Frigidaire Oven Bracket
60B316021109 Frigidaire Oven Screw
