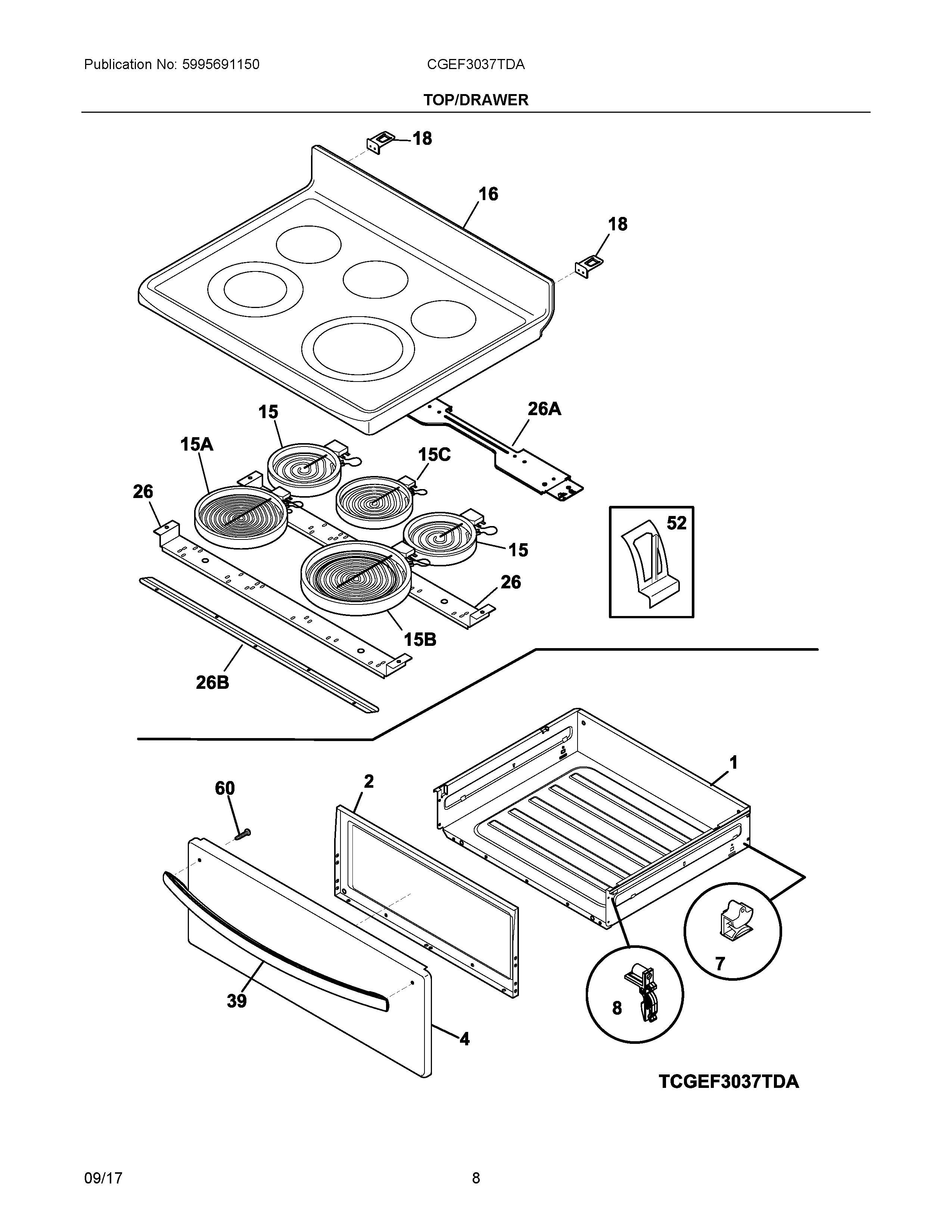

CGEF3037TDA 04 – TOP/DRAWER

CGEF3037TDA 04 – TOP/DRAWER

Written by

in

CGEF3037TDA 04 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA5308014215 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316580474 Frigidaire Oven Harness
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304516891 Frigidaire Oven Panel
7316407402 Frigidaire Range Drawer Glide
8807047202 Frigidaire Oven Glide
15A5304533520 Frigidaire Element
15318178110 Frigidaire Oven Range 6" Surface Element
15CELEMENT,RADIANT,100W,WARMER
15B316282101 Frigidaire Oven Element
16MAIN TOP, ASSEMBLY, GLASS/STEEL, BLACK
18316580800 Frigidaire Hinge Bracket
265304500986 Frigidaire Oven Channel
26B316607600 Frigidaire Bracket
26A316498200 Frigidaire Oven Bracket
39316554009 Frigidaire Oven Handle
52316461700 Frigidaire Oven Clip Assembly
605304414648 Frigidaire Oven Screw
