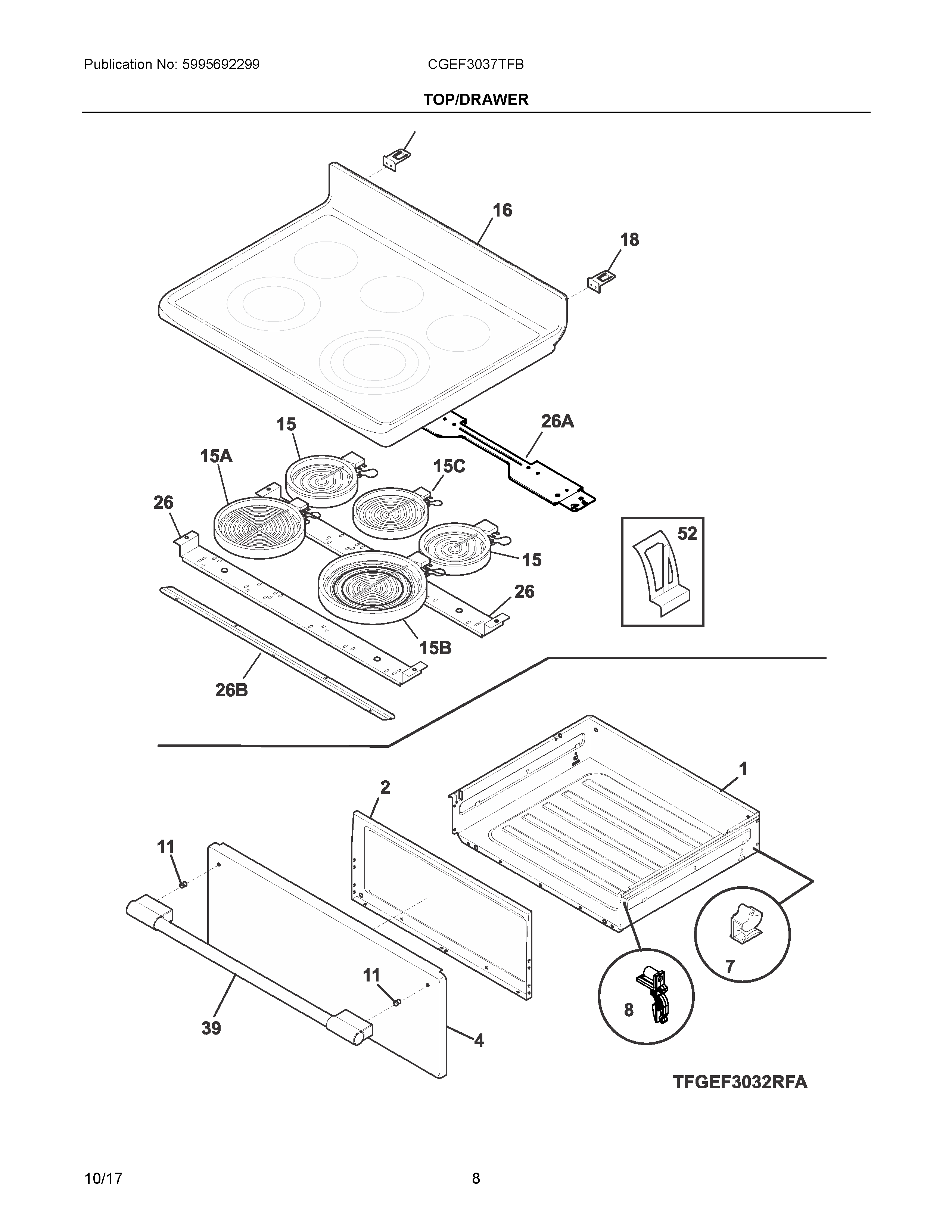

CGEF3037TFB 04 – TOP/DRAWER

Products

Position	Product
NIA	5308014215 Frigidaire Oven Screw
NI	HARNESS, SURFACE
NI	316021109 Frigidaire Oven Screw
NI	316418901 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	5304414648 Frigidaire Oven Screw
NI	316418900 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304518011 Frigidaire Oven Panel
7	316407402 Frigidaire Range Drawer Glide
8	807047202 Frigidaire Oven Glide
15C	5304521951 Frigidaire Element
15A	5304533520 Frigidaire Element
15A	318178110 Frigidaire Oven Range 6" Surface Element
15	316538904 Frigidaire Oven Lamp Light
15B	316282101 Frigidaire Oven Element
16	MAIN TOP, ASSEMBLY, GLASS/STEEL, BLACK
18	316580800 Frigidaire Hinge Bracket
26	5304500986 Frigidaire Oven Channel
26A	316498200 Frigidaire Oven Bracket
26B	316607600 Frigidaire Bracket
39	316554010 Frigidaire Stainless Steel Handle
43	5303285179 Frigidaire Oven Door Screw
52	316461700 Frigidaire Oven Clip Assembly
60	Screw,handle mtg. ,10-24 x 1.75`` ,(2)
