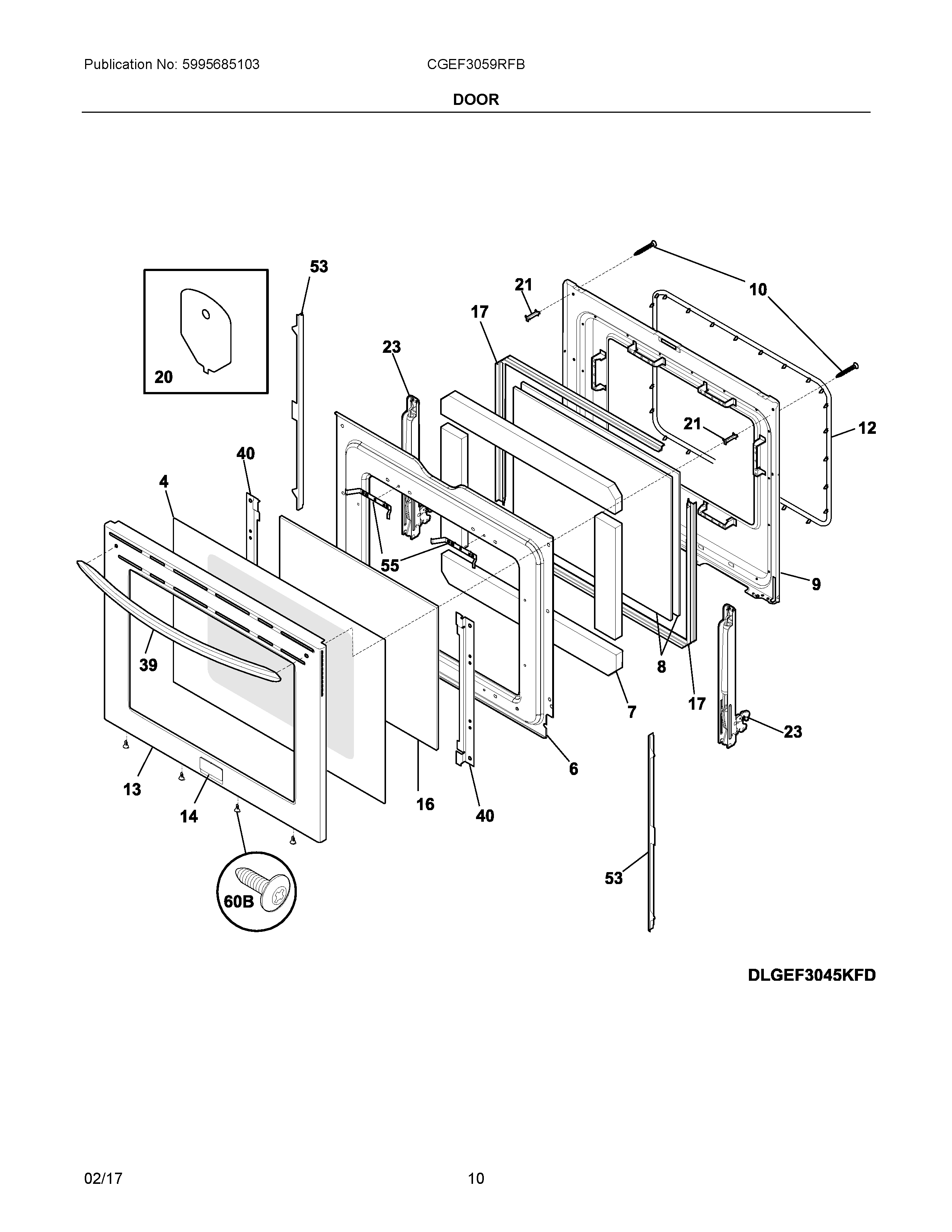

CGEF3059RFB 05 – DOOR

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIA	316418900 Frigidaire Oven Screw
NI	316483102 Frigidaire Oven Label
4	GLASS, OVEN DOOR, BLACK, W/FOIL
6	WCI 316503800
7	316513000 Frigidaire Insulation
8	316502500 Frigidaire Oven Range Door Inner Glass
9	316503620 Frigidaire Oven Liner
10	Screw,handle mtg. ,10-24 x 1.75“ ,(2)
12	316405000 Frigidaire Oven Seal
13	PANEL ASSEMBLY, DOOR, STAINLESS, OUTER, W/BADGE
14	316572700 Frigidaire Oven Nameplate
16	316502601 Frigidaire Oven Glass
17	5304503172 Frigidaire Door Glass Spacer
20	316533801 Frigidaire Oven Plate
21	316284100 Frigidaire Oven Spacer Assembly
23	316575908 Frigidaire Oven Hinge
39	316554010 Frigidaire Stainless Steel Handle
40	WCI 316530403
53	5304532042 Frigidaire Shield-Filler Door
55	BRACKET, GLASS SPACER, (4)
60B	316021109 Frigidaire Oven Screw
