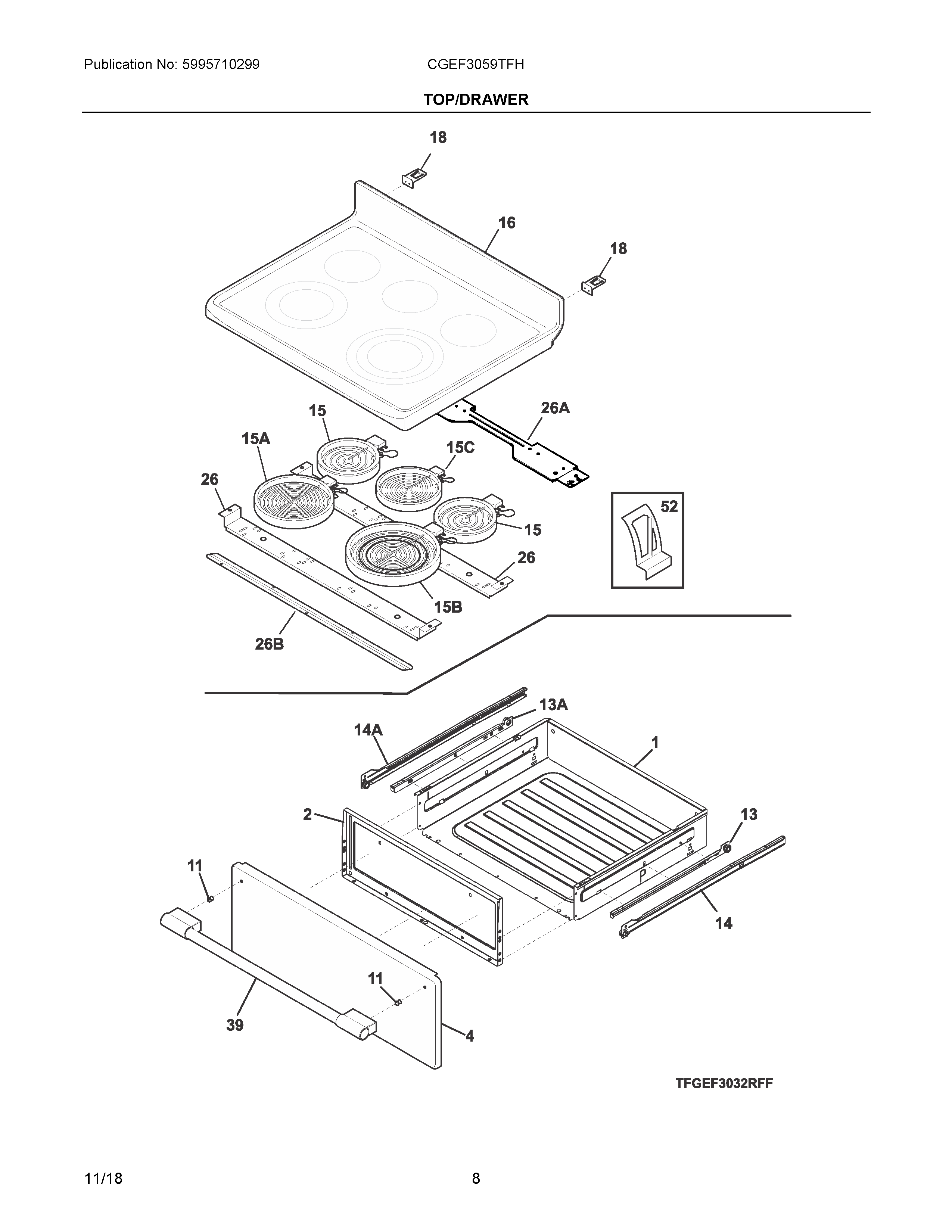

CGEF3059TFH 04 – TOP/DRAWER

CGEF3059TFH 04 – TOP/DRAWER

Written by

in

CGEF3059TFH 04 – TOP/DRAWER

Products

PositionProduct
NI5304517567 Frigidaire Oven Harness
NI316001017 Frigidaire Screw
NI316418900 Frigidaire Oven Screw
NI316418901 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI5304414648 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NIA5308014215 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304518011 Frigidaire Oven Panel
115304517906 Frigidaire Oven Bracket
135304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A5304517903 Frigidaire Oven Glide Drawer
14A5304517902 Frigidaire Oven Glide Drawer
145304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15316538904 Frigidaire Oven Lamp Light
15A318178110 Frigidaire Oven Range 6" Surface Element
15A5304533520 Frigidaire Element
15B318297810 Frigidaire Oven Triple Radiant Burner Element
15CELEMENT,RADIANT,100W,WARMER
165304513155 Frigidaire Smoothtop
18316580800 Frigidaire Hinge Bracket
26A316498200 Frigidaire Oven Bracket
26B316607600 Frigidaire Bracket
265304512926 Frigidaire Channel
39316554010 Frigidaire Stainless Steel Handle
435303285179 Frigidaire Oven Door Screw
52316461700 Frigidaire Oven Clip Assembly
60Screw,handle mtg. ,10-24 x 1.75“ ,(2)
