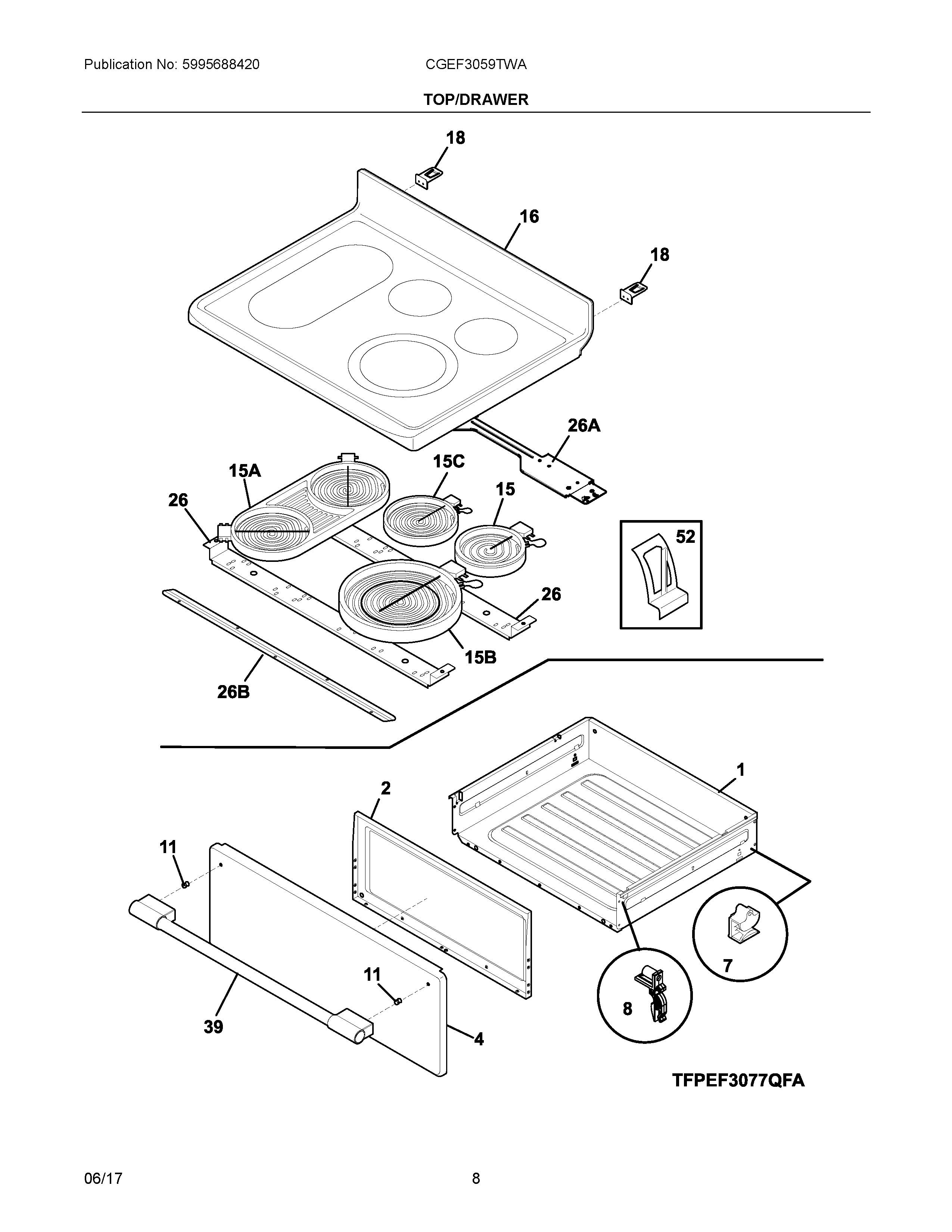

CGEF3059TWA 04 – TOP/DRAWER

CGEF3059TWA 04 – TOP/DRAWER

Written by

in

CGEF3059TWA 04 – TOP/DRAWER

Products

PositionProduct
NI316021132 Frigidaire Screw
NIA5308014215 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NI316418900 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NIHARNESS, SURFACE UNITS
NI316021109 Frigidaire Oven Screw
NI316418901 Frigidaire Oven Screw
NIA5303289910 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1316408706 Frigidaire Oven Drawer Assembly
25304527989 Frigidaire Liner
45304511973 Frigidaire Oven Panel
7316407402 Frigidaire Range Drawer Glide
85304490938 Frigidaire Glide Assembly
15CELEMENT,RADIANT,100W,WARMER
15B318297810 Frigidaire Oven Triple Radiant Burner Element
15A5304533520 Frigidaire Element
15A318178110 Frigidaire Oven Range 6" Surface Element
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
18316580800 Frigidaire Hinge Bracket
26B316607600 Frigidaire Bracket
265304500986 Frigidaire Oven Channel
26A316498200 Frigidaire Oven Bracket
39HANDLE, DOOR/DRAWER, WHITE
435303285179 Frigidaire Oven Door Screw
52316461700 Frigidaire Oven Clip Assembly
60Screw,handle mtg. ,10-24 x 1.75“ ,(2)
