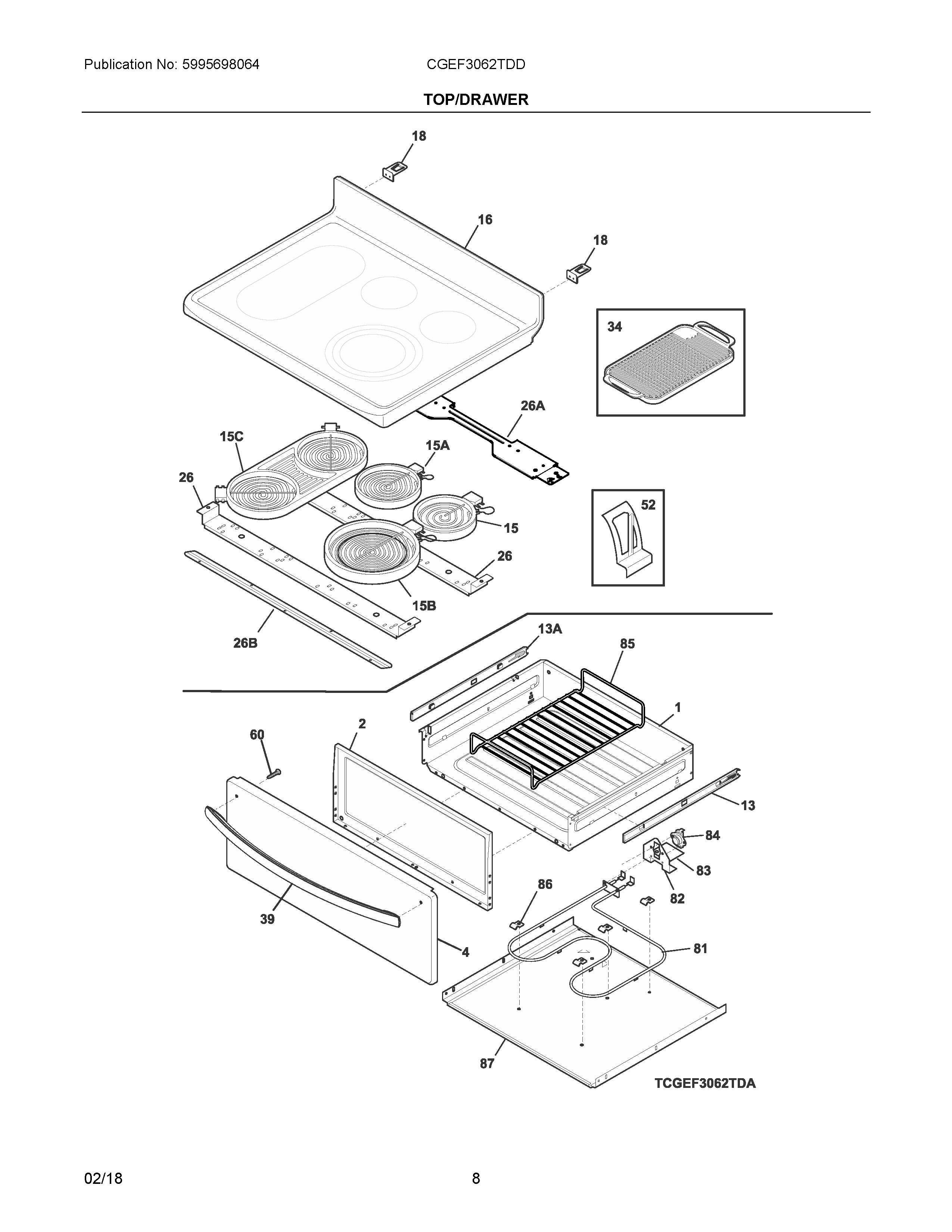

CGEF3062TDD 04 – TOP/DRAWER

CGEF3062TDD 04 – TOP/DRAWER

Written by

in

CGEF3062TDD 04 – TOP/DRAWER

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304517539 Frigidaire Harness
NIHARNESS, WIRING, SURFACE UNITS
NIA5308014215 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1316408905 Frigidaire Dsp Drawer
2WCI 316403303
45304516891 Frigidaire Oven Panel
13A316415001 Frigidaire Oven Glide
13316415002 Frigidaire Oven Glide
15318178110 Frigidaire Oven Range 6" Surface Element
15AELEMENT,RADIANT,100W,WARMER
15B318297810 Frigidaire Oven Triple Radiant Burner Element
15C316280701 Frigidaire Range Double 6" Surface Element 4400W with Bridge
16WCI 5304513834
18316580800 Frigidaire Hinge Bracket
26A316498200 Frigidaire Oven Bracket
265304512926 Frigidaire Channel
26B316607600 Frigidaire Bracket
345304495353 Frigidaire Oven Griddle
39316554009 Frigidaire Oven Handle
52316461700 Frigidaire Oven Clip Assembly
60Screw,handle mtg. ,10-24 x 1.75“ ,(2)
81316437300 Frigidaire Oven Element
82316093200 Frigidaire Bracket
83WCI 316093300
84316093502 Frigidaire Thermo Disc
85807328301 Frigidaire Oven Rack
86316095800 Frigidaire Oven Clip
87WCI 316091900
