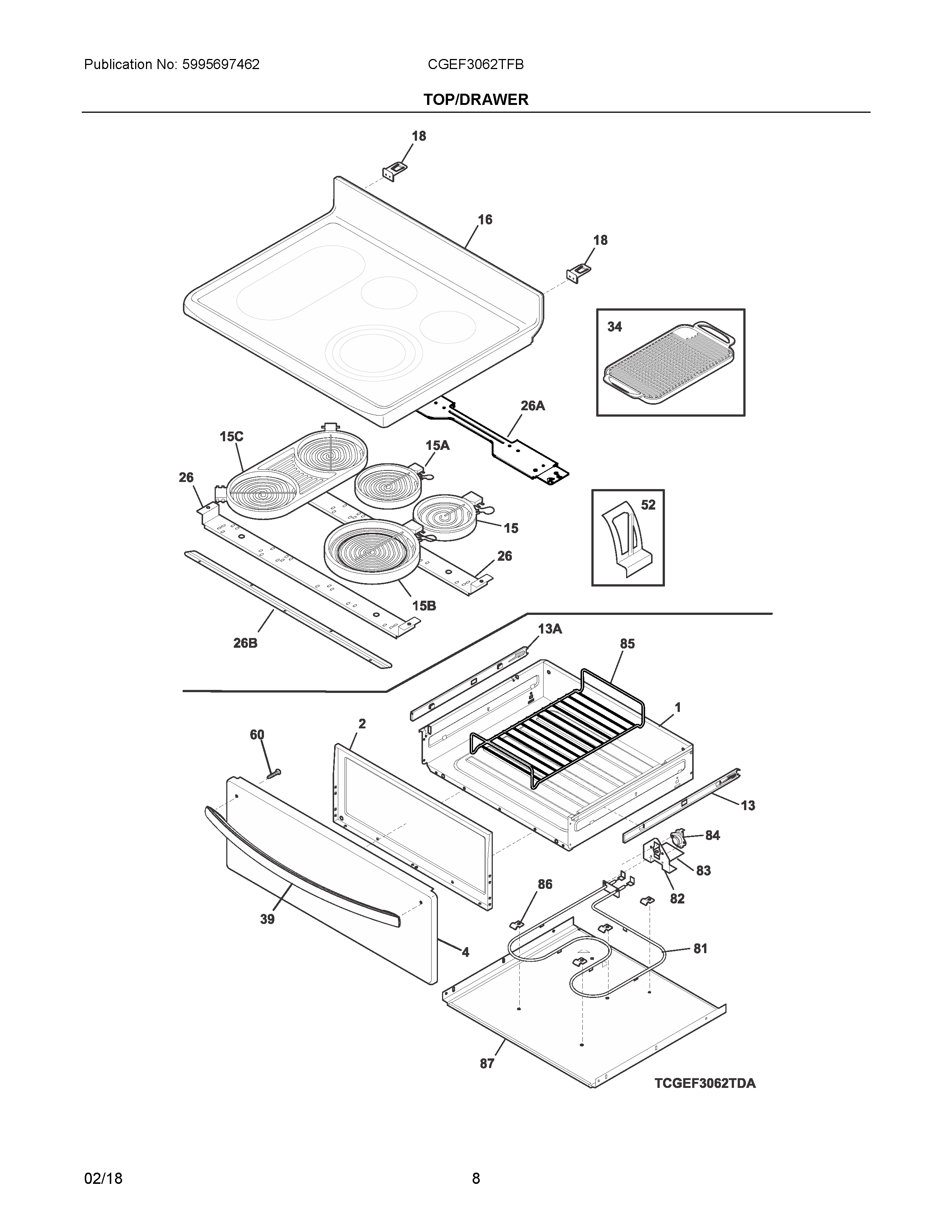

CGEF3062TFB 04 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIA	5308014215 Frigidaire Oven Screw
NI	316418901 Frigidaire Oven Screw
NI	5304517539 Frigidaire Harness
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	HARNESS, WIRING, SURFACE UNITS
1	316408905 Frigidaire Dsp Drawer
2	WCI 316403303
4	5304518011 Frigidaire Oven Panel
13	316415002 Frigidaire Oven Glide
13A	316415001 Frigidaire Oven Glide
15B	318297810 Frigidaire Oven Triple Radiant Burner Element
15C	316280701 Frigidaire Range Double 6" Surface Element 4400W with Bridge
15	318178110 Frigidaire Oven Range 6" Surface Element
15A	ELEMENT,RADIANT,100W,WARMER
16	MAINTOP ASSEMBLY, GLASS/FRAME, BLACK
18	316580800 Frigidaire Hinge Bracket
26B	316607600 Frigidaire Bracket
26	5304500986 Frigidaire Oven Channel
26A	316498200 Frigidaire Oven Bracket
34	5304495353 Frigidaire Oven Griddle
39	316554010 Frigidaire Stainless Steel Handle
52	316461700 Frigidaire Oven Clip Assembly
60	Screw,handle mtg. ,10-24 x 1.75`` ,(2)
81	316437300 Frigidaire Oven Element
82	316093200 Frigidaire Bracket
83	WCI 316093300
84	316093502 Frigidaire Thermo Disc
85	807328301 Frigidaire Oven Rack
86	316095800 Frigidaire Oven Clip
87	WCI 316091900
