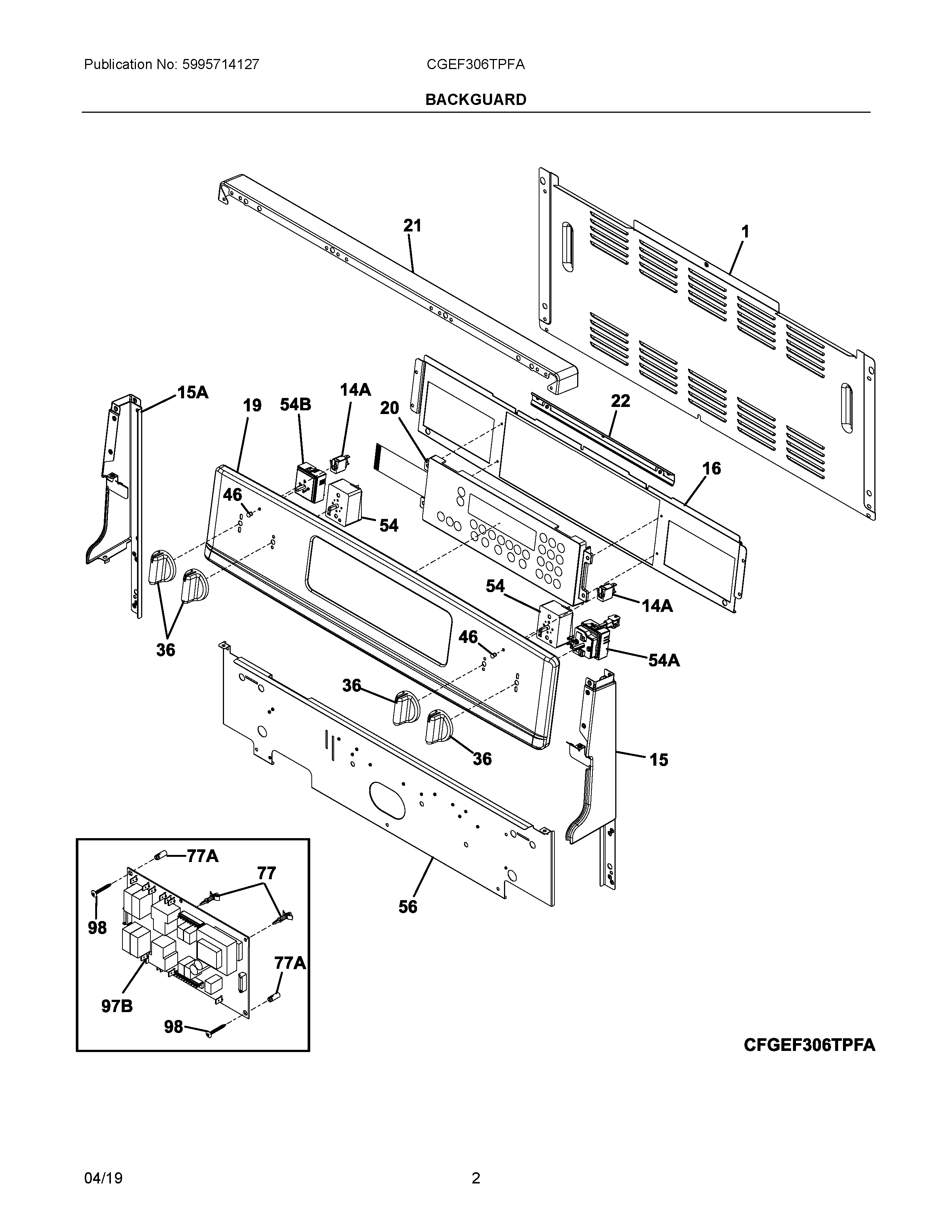

CGEF306TPFA 02 – BACKGUARD

CGEF306TPFA 02 – BACKGUARD

Written by

in

CGEF306TPFA 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI318578352 Frigidaire Harness
1WCI 316557600
14A316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15807437109 Frigidaire Endcap
15A807437110 Frigidaire Endcap
16BRACKET, TIMER SUPPORT
19316572447 Frigidaire Oven Panel
20139092900 Frigidaire Controller
21316546605 Frigidaire Oven Cap
22WCI 318573700
36KNOB, CONTROL, STAINLESS, (5)
46316557300 Frigidaire Range Indicator Light Lens
54A5304490134 Frigidaire Oven Switch
54B316238201 Frigidaire Oven Switch
54316436000 Frigidaire Oven Range Surface Element Switch
56SHIELD, BACKGUARD, BLACK, INNER
77A316114100 Frigidaire Oven Spacer
77316247900 Frigidaire Oven Spacer
97B316443939 Frigidaire Oven Board
985303289910 Frigidaire Oven Screw
