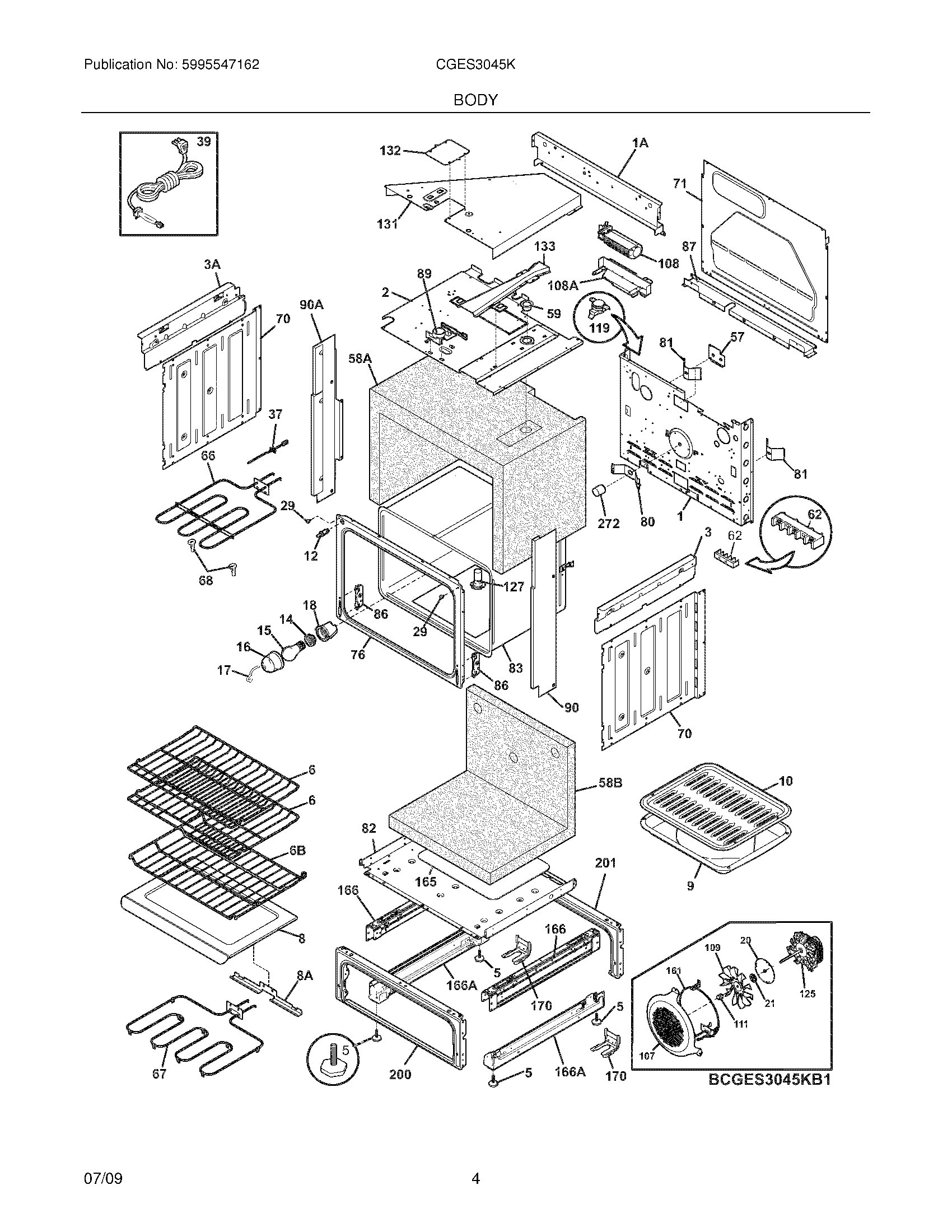

CGES3045KB1 05 – BODY

CGES3045KB1 05 – BODY

Written by

in

CGES3045KB1 05 – BODY

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NI5303324184 Frigidaire Wall Oven Range Screw
NIWCI 318368501
NI5303211311 Frigidaire Refrigerator Screw
NI5304461333 Frigidaire Oven Screw
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NIWCI 5304400192
NISCREW-SHOULDER
NI5303323129 Frigidaire Oven Screw
NI316205500 Frigidaire Oven Nut
NI5304480396 Frigidaire Screw
NI5304436875 Frigidaire Oven Screw
NIWCI 318384458
NI08002868 Frigidaire 0 Screw Assembly
NIWCI 5304440988
NI318531701 Frigidaire Spacer
NI5304415832 Frigidaire Oven Screw
NI5303323139 Frigidaire Oven Screw
1WCI 318259220
1AWCI 318225110
2WCI 318258957
3AWCI 318225211
3WCI 318225210
5Screw,leveling ,w/tee nut
6318922301 Frigidaire Oven Rack
6BWCI 318919801
8WCI 318262001
8AWCI 318318600
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
18WCI 318222400
20WCI 318389400
21318389000 Frigidaire Oven Seal
29316517600 Frigidaire Oven Spacer
37316217002 Frigidaire Oven Temperature Probe
39WCI 318113111
57WCI 318402800
58AWCI 318536600
58BInsulation,oven wrapper ,back/bottom
59318072577 Frigidaire Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
66WCI 318255801
67318254906 Frigidaire Oven Range Bake Element 3400W
685304403015 Frigidaire Oven Support
70WCI 318259105
71WCI 318260007
76WCI 318056292
80WCI 5303320846
81WCI 318192400
82WCI 318258765
83WCI 318261437
86318561100 Frigidaire Receptacle
87WCI 318260625
89318261229 Frigidaire Oven Motor
905304511889 Frigidaire Oven Panel
90A5304511890 Frigidaire Oven Panel
107WCI 318219405
108318073028 Frigidaire Oven Motor
108WCI 318251300
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004902 Frigidaire Oven Switch
1255304463302 Frigidaire Convection Motor
125Washer,motor ,RH ,convection
127WCI 318357001
131WCI 318272901
132318003000 Frigidaire Plate
133WCI 318347800
161318255504 Frigidaire Oven Element
165318300102 Frigidaire Oven Panel
166WCI 318298403
166318298410 Frigidaire Oven Bracket
170WCI 318335500
200WCI 318298226
201318298233 Frigidaire Oven Frame
272WCI 318249409
