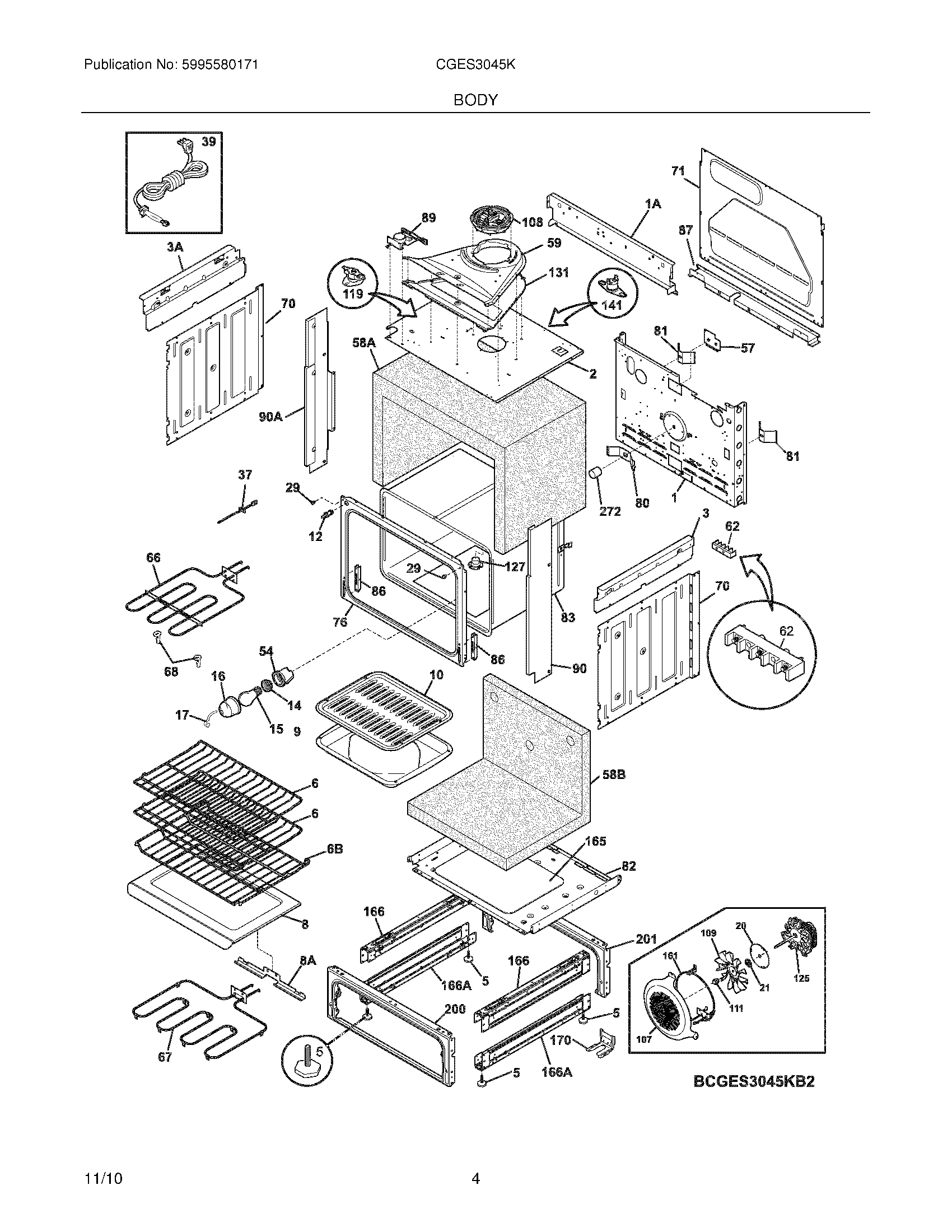

CGES3045KB2 05 – BODY

CGES3045KB2 05 – BODY

Written by

in

CGES3045KB2 05 – BODY

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NIScrew,No.8-18 x 3/8 ,(10)
NISCREW-SHOULDER
NIWCI 318579001
NIWCI 5304400192
NI5303211311 Frigidaire Refrigerator Screw
NI5304461333 Frigidaire Oven Screw
NI5303324184 Frigidaire Wall Oven Range Screw
NI316205500 Frigidaire Oven Nut
NI5304480396 Frigidaire Screw
NI5304415832 Frigidaire Oven Screw
NI5304436875 Frigidaire Oven Screw
NIWCI 5304440988
NI08002868 Frigidaire 0 Screw Assembly
NIWCI 318368501
NIWCI 318384474
NI318531701 Frigidaire Spacer
NI5303323139 Frigidaire Oven Screw
NI5303323129 Frigidaire Oven Screw
1WCI 318259220
1AWCI 318225110
2WCI 318570500
3WCI 318225210
3AWCI 318225211
5Screw,leveling ,w/tee nut
6BWCI 318919801
6318922301 Frigidaire Oven Rack
8AWCI 318318600
8WCI 318262001
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
20WCI 318389400
21318389000 Frigidaire Oven Seal
29316517600 Frigidaire Oven Spacer
37SENSOR
39WCI 318113111
54WCI 318222400
57WCI 318402800
58AWCI 318386113
58BInsulation,oven wrapper ,back/bottom
59WCI 318570602
625304409888 Frigidaire Oven Terminal Block with Hardware
66WCI 318255801
67318254906 Frigidaire Oven Range Bake Element 3400W
685304403015 Frigidaire Oven Support
70WCI 318259105
71WCI 318260007
76WCI 318056292
80WCI 5303320846
81WCI 318192400
82WCI 318258765
83WCI 318261451
86318561100 Frigidaire Receptacle
87WCI 318260625
89318261229 Frigidaire Oven Motor
905304511889 Frigidaire Oven Panel
90A5304511890 Frigidaire Oven Panel
107WCI 318219405
108318575600 Frigidaire Oven Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318578506 Frigidaire Oven High Limit Thermostat
1255304463302 Frigidaire Convection Motor
127WCI 318317105
131WCI 318574805
141318005229 Frigidaire Oven Switch
161318255504 Frigidaire Oven Element
165WCI 318322600
166WCI 318298403
166318298410 Frigidaire Oven Bracket
170WCI 318335500
200WCI 318298226
201318298233 Frigidaire Oven Frame
272WCI 318249409
