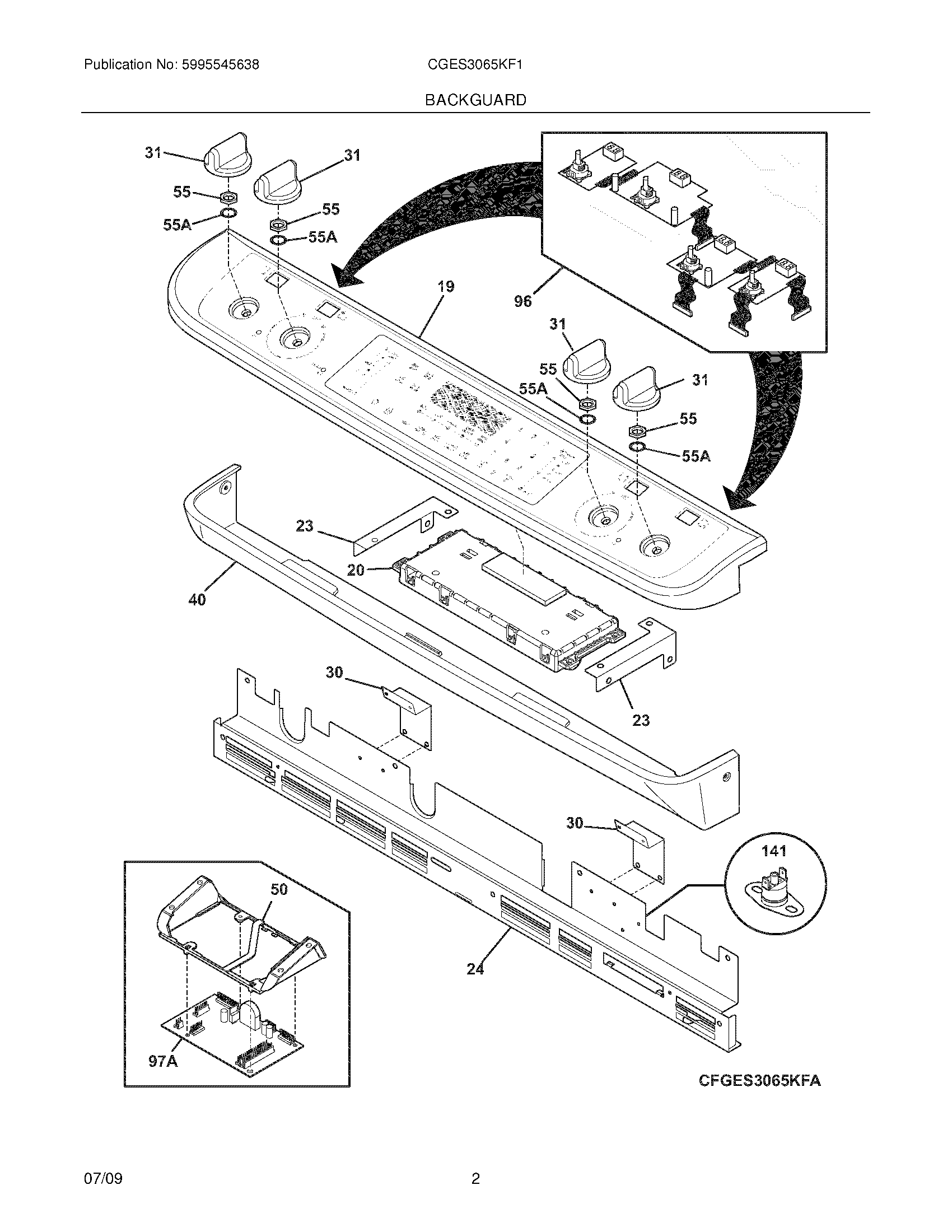

CGES3065KF1 03 – BACKGUARD

CGES3065KF1 03 – BACKGUARD

Written by

in

CGES3065KF1 03 – BACKGUARD

Products

PositionProduct
NI5304436875 Frigidaire Oven Screw
NIWCI 318224861
NIWCI 318402315
NIScrew,No.8-18 x 3/8 ,(10)
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5304453707 Frigidaire Oven Screw
19WCI 318922150
20316462881 Frigidaire CONTROLLER
23WCI 318921300
24WCI 318913101
30318928502 Frigidaire Oven Bracket
31WCI 316564406
40318912908 Frigidaire Oven Panel
50WCI 318917700
55316247700 Frigidaire Oven Nut
55A316247800 Frigidaire Oven Washer
96WCI 318411400
97A316442061 Frigidaire Oven Board
141WCI 318005228
