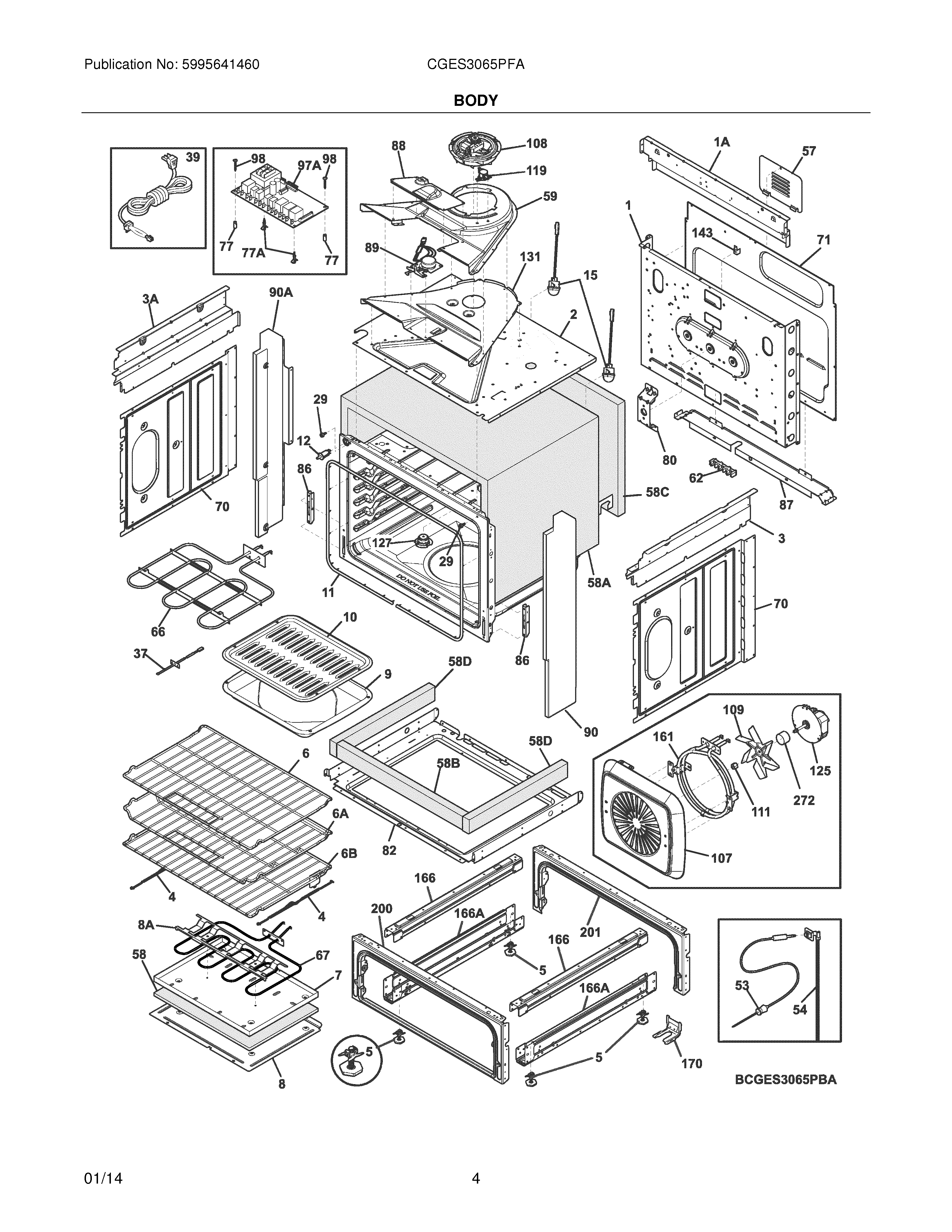

CGES3065PFA 05 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NISCREW-SHOULDER
NIWCI 318579001
NI316418900 Frigidaire Oven Screw
NI316001017 Frigidaire Screw
NI316205500 Frigidaire Oven Nut
NI318264200 Frigidaire Oven Plate
NIWCI 808195801
NIWCI 807641602
NI316021109 Frigidaire Oven Screw
1A139004600 Frigidaire Oven Panel
1139017306 Frigidaire Oven Panel
2139028107 Frigidaire Shield
3AWCI 318225231
3WCI 318225230
4WCI 318927600
5Screw,leveling ,w/tee nut
6A139012400 Frigidaire Oven Rack
6B139013101 Frigidaire Oven Rack
65304514983 Frigidaire Oven Rack
7318297303 Frigidaire Oven Box
8318359500 Frigidaire Oven Panel
8A318313601 Frigidaire Oven Bracket
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
11807545502 Frigidaire Oven Seal
12316445501 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
39WCI 318113111
535304504202 Frigidaire Red Meat Temperature Probe
54139017201 Frigidaire Assembly Receptacle
57316283600 Frigidaire Oven Cover
58CWCI 139020201
58D139020301 Frigidaire INSULATION
58BWCI 139020300
58A139001700 Frigidaire Insulation
58318294912 Frigidaire Insullation
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521498 Frigidaire Element
675304521880 Frigidaire Element
70139000601 Frigidaire Oven Shield
71139014001 Frigidaire Oven Shield
77316247900 Frigidaire Oven Spacer
77A316114100 Frigidaire Oven Spacer
80139021101 Frigidaire Bracket Assembly
82139008201 Frigidaire Shield
86318561100 Frigidaire Receptacle
87WCI 318260625
885304506964 Frigidaire Oven Cover
895304528836 Frigidaire Motor
90A5304511890 Frigidaire Oven Panel
905304511889 Frigidaire Oven Panel
97A316442112 Frigidaire Oven Control Board
985303289910 Frigidaire Oven Screw
107139013903 Frigidaire Oven Vent Hood Cover
108318575612 Frigidaire Oven Cooling Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119807144901 Frigidaire Thermostat
125139008500 Frigidaire Oven Motor
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
161139006500 Frigidaire Oven Element
166WCI 318298403
166318298410 Frigidaire Oven Bracket
1705304486410 Frigidaire Oven Kit
200WCI 318335600
201318298233 Frigidaire Oven Frame
272139021700 Frigidaire Oven Tube
