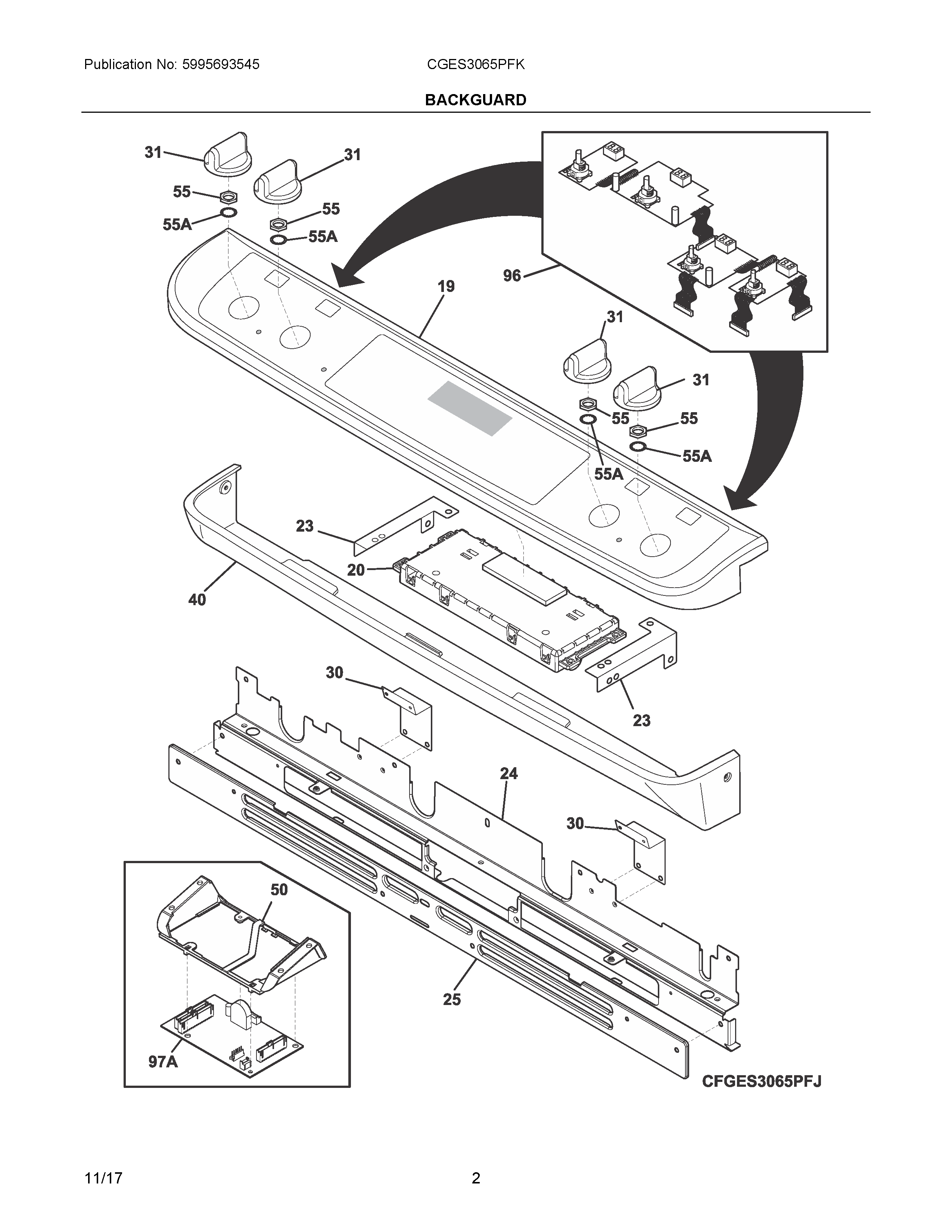

CGES3065PFK 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	5304517733 Frigidaire Harness
NI	5304517731 Frigidaire Oven Harness
NIAA	WCI 5304497426
NI	HARNESS, WIRING, DISPLAY
NI	316021109 Frigidaire Oven Screw
19	PANEL ASSEMBLY, CONTROL, BLACK/STAINLESS
20	5304503758 Frigidaire Controller
23	WCI 318921300
24	139074902 Frigidaire Vent Trim Frame
25	139075001 Frigidaire Oven Cover
30	318928502 Frigidaire Oven Bracket
31	WCI 316564406
40	318912908 Frigidaire Oven Panel
50	WCI 318917700
55	316247700 Frigidaire Oven Nut
55A	316247800 Frigidaire Oven Washer
96	WCI 318411400
97A	316578340 Frigidaire Oven Board
