CGES3065PWC 09 – DOOR

CGES3065PWC 09 – DOOR

Written by

in

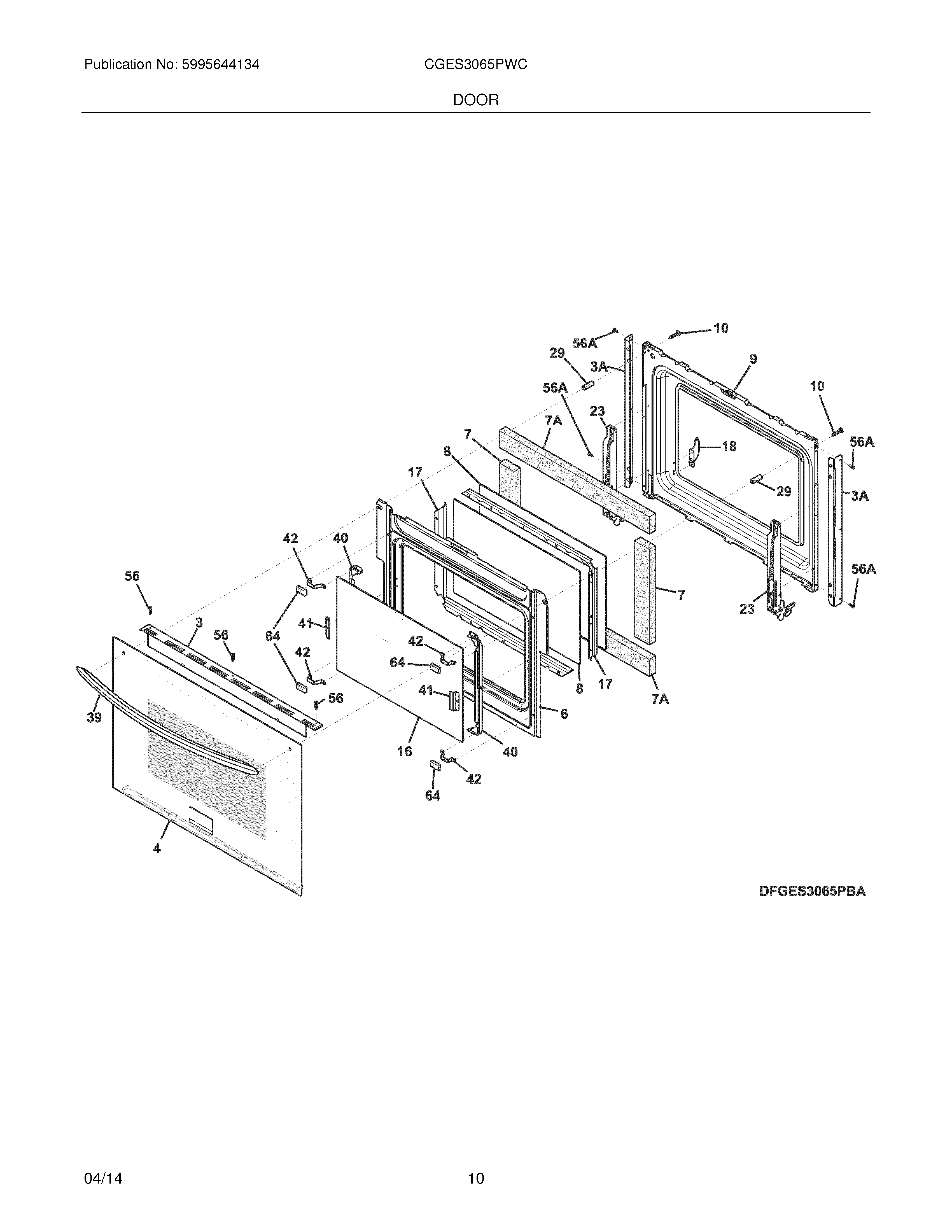

CGES3065PWC 09 – DOOR

Products

PositionProduct
NI316418900 Frigidaire Oven Screw
NI316483102 Frigidaire Oven Label
3139023301 Frigidaire Oven Trim
3A139014401 Frigidaire Oven Trim
4808950005 Frigidaire Door Assembly
6139006905 Frigidaire Oven Baffle
7A318372016 Frigidaire Insulation
7318372017 Frigidaire Insulation
85304503232 Frigidaire Oven Inner Door Glass
9Liner,oven door
10SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
16316446401 Frigidaire Oven Glass
17318264731 Frigidaire Oven Spacer
18WCI 316547900
23316575912 Frigidaire Lime Green Oven Door Hinge
29139023400 Frigidaire Oven Spacer
39WCI 318927400
40318242702 Frigidaire Oven Bracket Assembly
41318370602 Frigidaire Oven Bracket
42318382302 Frigidaire Bracket
56A5303324184 Frigidaire Wall Oven Range Screw
56316021109 Frigidaire Oven Screw
64318165800 Frigidaire Oven Door Glass Spacer with Screw
