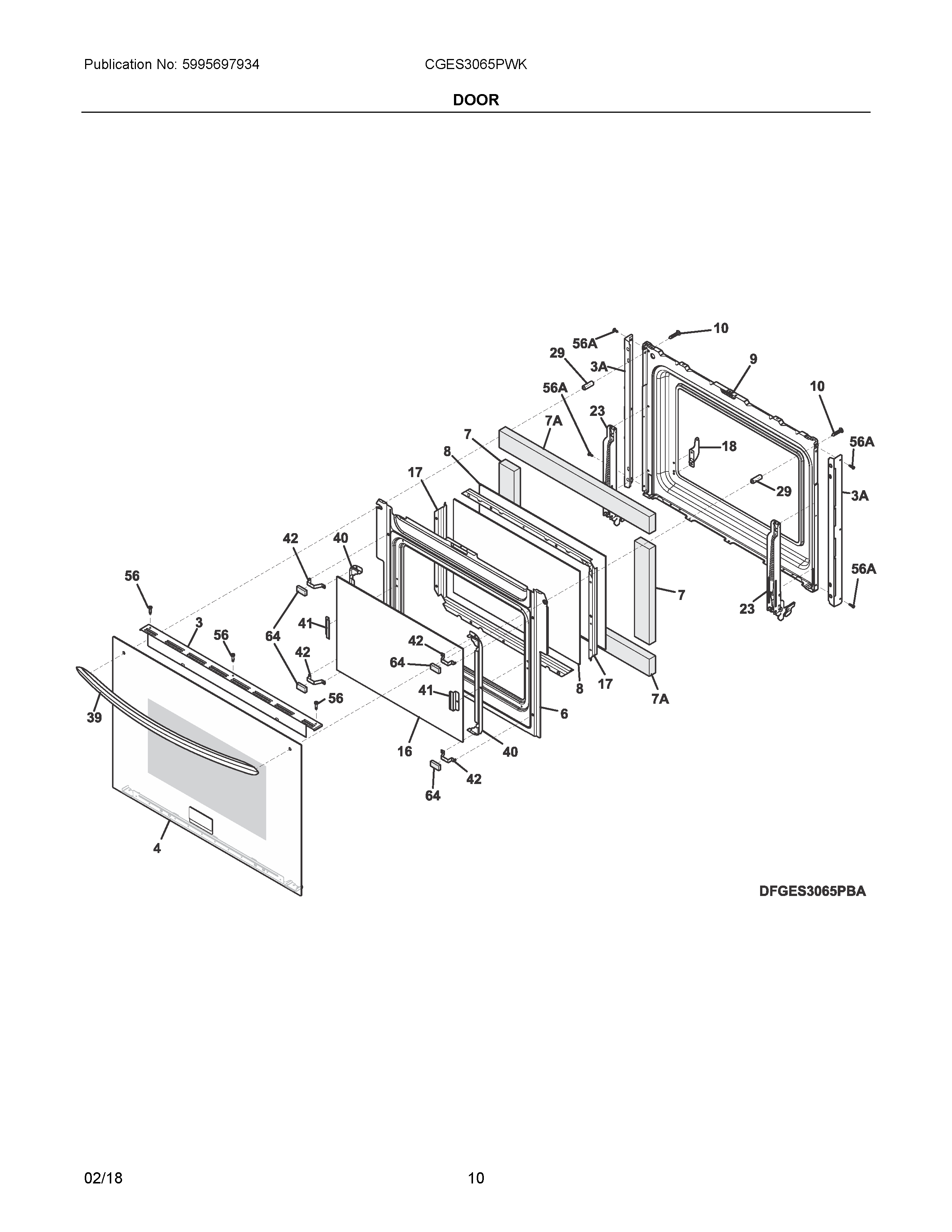

CGES3065PWK 05 – DOOR

Products

Position	Product
NI	316021109 Frigidaire Oven Screw
NIA	316418900 Frigidaire Oven Screw
NI	316483102 Frigidaire Oven Label
3	139023301 Frigidaire Oven Trim
3A	139014401 Frigidaire Oven Trim
4	5304513291 Frigidaire Glass Assembly
6	139006905 Frigidaire Oven Baffle
7	318372017 Frigidaire Insulation
7A	318372016 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	Liner,oven door
10	SCREW-OVEN DOOR, WASHER HEAD, 10-24 X 1.81
16	316446401 Frigidaire Oven Glass
17	318264731 Frigidaire Oven Spacer
18	WCI 316547900
23	316575915 Frigidaire Oven Hinge
29	139023400 Frigidaire Oven Spacer
39	WCI 318927400
40	318242702 Frigidaire Oven Bracket Assembly
41	318370602 Frigidaire Oven Bracket
42	318382302 Frigidaire Bracket
56A	5304480396 Frigidaire Screw
56	5303324184 Frigidaire Wall Oven Range Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
