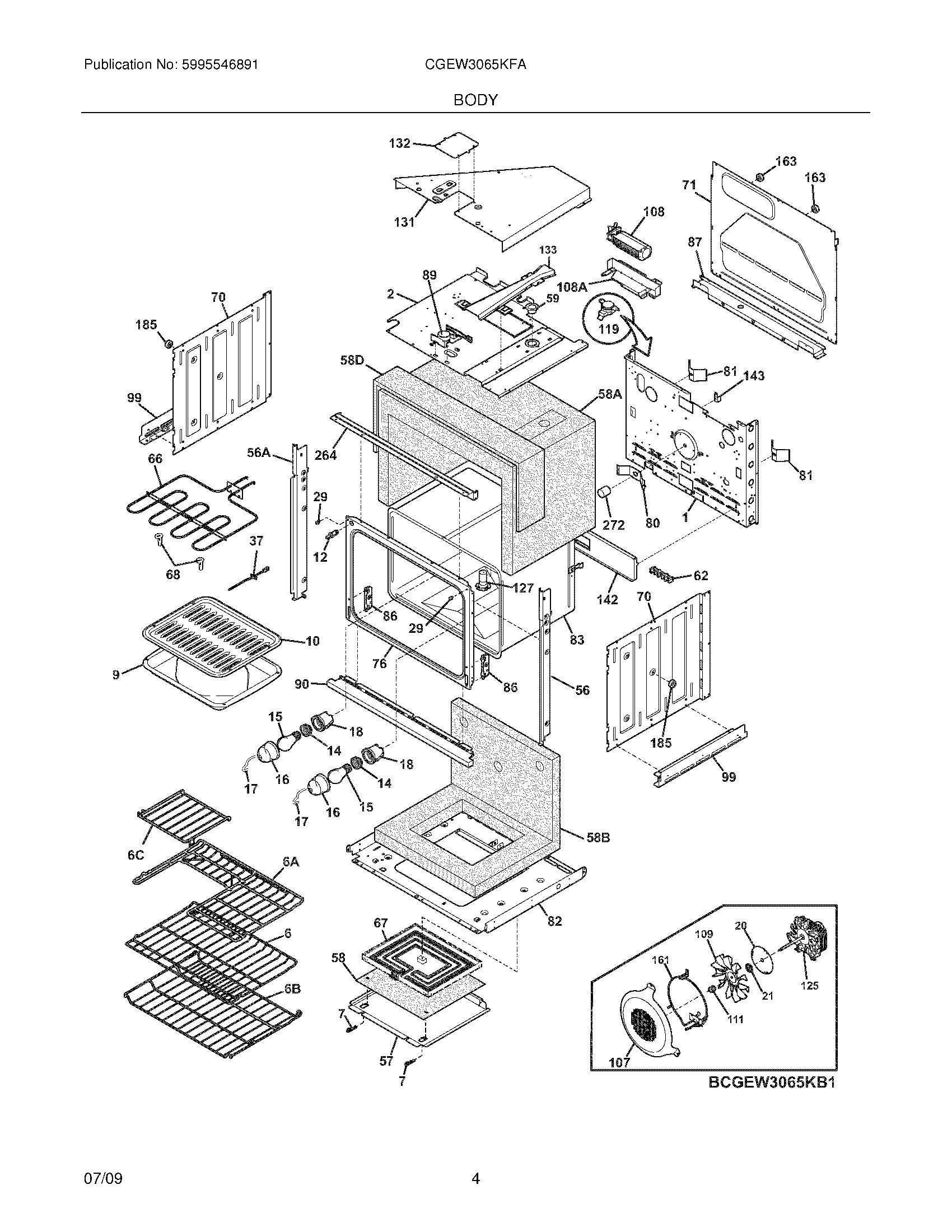

CGEW3065KFA 05 – BODY

CGEW3065KFA 05 – BODY

Written by

in

CGEW3065KFA 05 – BODY

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	5303324184 Frigidaire Wall Oven Range Screw
NI	5304506983 Frigidaire Harness Assembly
NI	WCI 318532182
NI	WCI 318368501
NI	5303211311 Frigidaire Refrigerator Screw
NI	5304470882 Frigidaire Oven Screw
NI	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	5303323130 Frigidaire Oven Screw
NI	5304461333 Frigidaire Oven Screw
NI	316205500 Frigidaire Oven Nut
NI	5304480396 Frigidaire Screw
NI	5304436875 Frigidaire Oven Screw
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	WCI 318268099
NI	5303323129 Frigidaire Oven Screw
NI	WCI 318402209
NI	WCI 318231870
NI	5303323139 Frigidaire Oven Screw
NI	5304415832 Frigidaire Oven Screw
1	WCI 318259220
2	WCI 318258957
6B	WCI 318919801
6A	WCI 318926803
6C	WCI 318929702
6	318922301 Frigidaire Oven Rack
7	318368300 Frigidaire PIN
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	WCI 5304400195
18	WCI 318222400
20	WCI 318389400
21	318389000 Frigidaire Oven Seal
29	316517600 Frigidaire Oven Spacer
37	316217002 Frigidaire Oven Temperature Probe
56A	WCI 318903705
56	WCI 318903704
57	WCI 318361610
58	WCI 318330501
58B	WCI 318362100
58D	WCI 318372006
58A	WCI 318536600
59	318072577 Frigidaire Duct
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	318255807 Frigidaire Oven Element
67	WCI 318601601
68	5304403015 Frigidaire Oven Support
70	WCI 318259105
71	WCI 318260007
76	WCI 318056292
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258775
83	WCI 318261439
86	318561100 Frigidaire Receptacle
87	WCI 318260622
89	318261229 Frigidaire Oven Motor
90	WCI 318259828
99	318256201 Frigidaire Oven Bracket
107	WCI 318219405
108	WCI 318251300
108	318073028 Frigidaire Oven Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
119	318004900 Frigidaire Thermal Switch
125	5304467898 Frigidaire Oven Kit Assembly
125	Washer,motor ,RH ,convection
127	WCI 318357001
131	WCI 318272901
132	318003000 Frigidaire Plate
133	WCI 318347800
142	WCI 318123910
143	318172904 Frigidaire Bracket
161	318255504 Frigidaire Oven Element
163	Spacer,(4)
185	318531800 Frigidaire Oven Spacer
264	WCI 318257723
272	WCI 318249409
