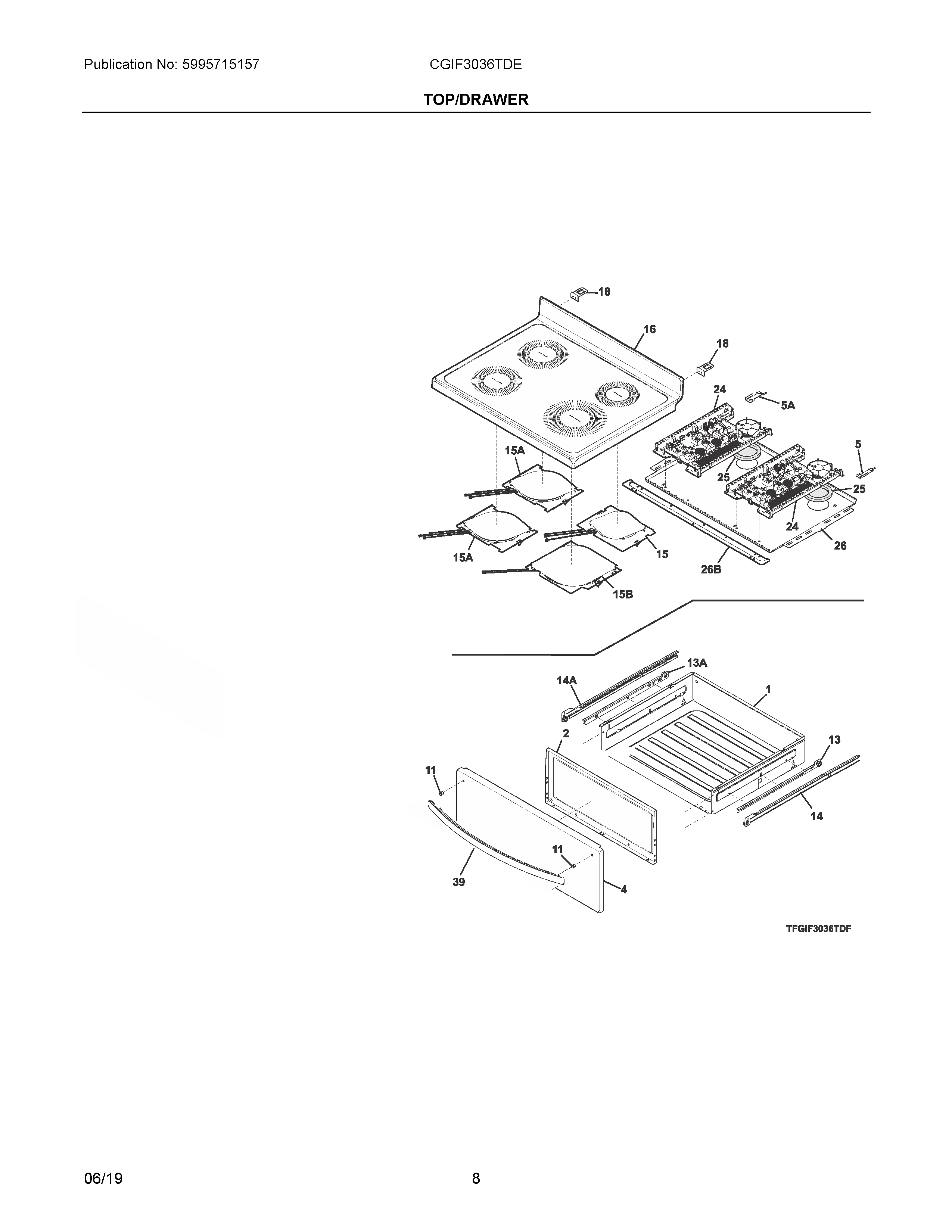

CGIF3036TDE 04 – TOP/DRAWER

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	5304517540 Frigidaire Harness
NI	5304517544 Frigidaire Oven Harness
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
1	316408706 Frigidaire Oven Drawer Assembly
2	5304527989 Frigidaire Liner
4	5304516891 Frigidaire Oven Panel
5A	BRACKET, COOKTOP, LH REAR
5	BRACKET, COOKTOP, RH REAR
11	5304517906 Frigidaire Oven Bracket
13	5304517905 Frigidaire Oven Inner Right Hand Drawer Glide (Black)
13A	5304517903 Frigidaire Oven Glide Drawer
14A	5304517902 Frigidaire Oven Glide Drawer
14	5304517904 Frigidaire Oven Outer Right Hand Drawer Glide (Black)
15B	5304511268 Frigidaire Oven Induction Coil Surface Element Assembly
15A	387404870 Frigidaire Range Element Assembly
15	387404760 Frigidaire Range Element Assembly
16	5304511258 Frigidaire Smoothtop Assembly
18	316580800 Frigidaire Hinge Bracket
24	5304531890 Frigidaire Assembly Generator
25	SEALS, RING, FANS, (2)
26B	316607600 Frigidaire Bracket
26	PANEL, INDUCTION MTG.
39	316554009 Frigidaire Oven Handle
60	5304414648 Frigidaire Oven Screw
