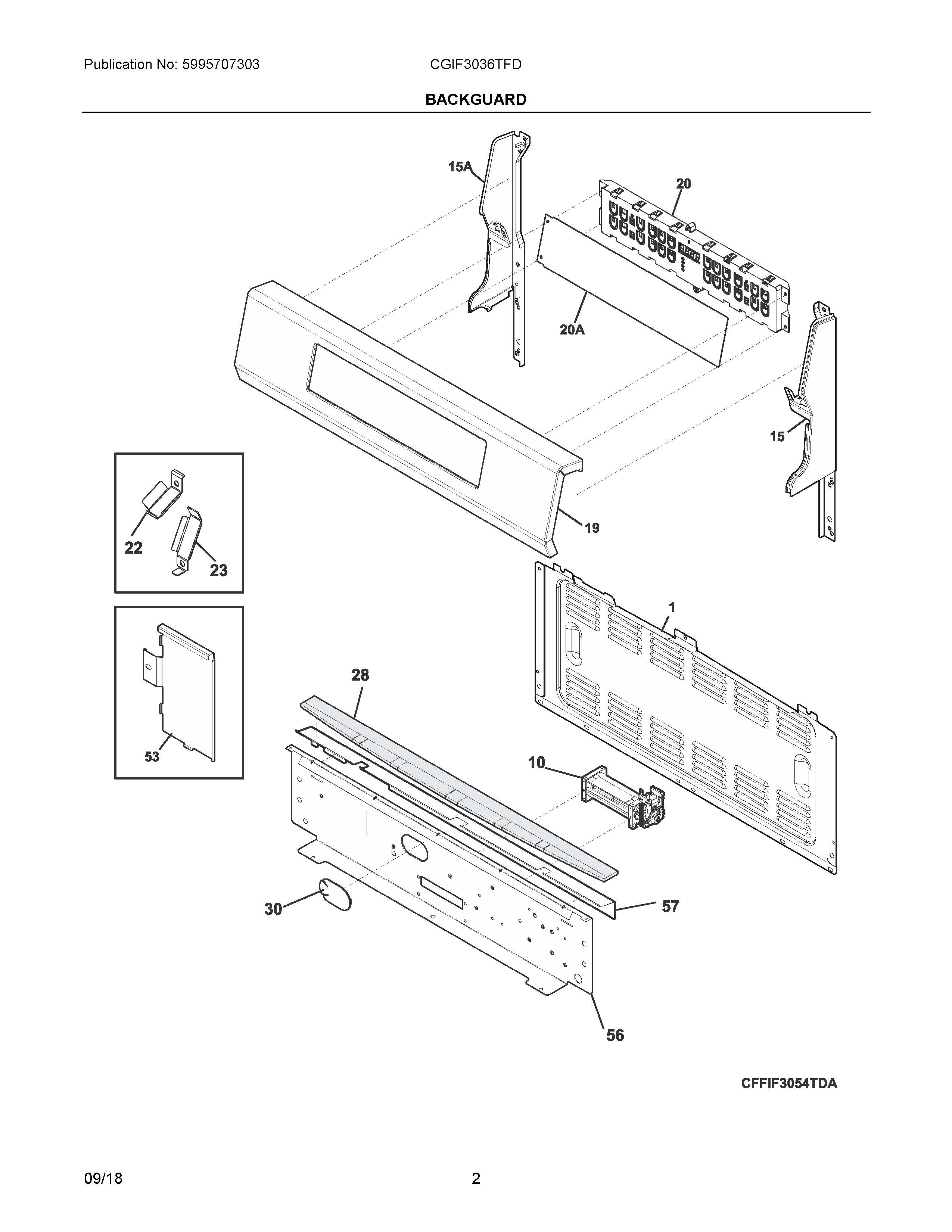

CGIF3036TFD 02 – BACKGUARD

CGIF3036TFD 02 – BACKGUARD

Written by

in

CGIF3036TFD 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NIA318165800 Frigidaire Oven Door Glass Spacer with Screw
1316281802 Frigidaire Oven Shield
105304511092 Frigidaire Fan Assembly
15A5304493646 Frigidaire Oven Cap
155304493644 Frigidaire Oven Cap
195304511254 Frigidaire Oven Panel
205304514664 Frigidaire Oven Range Controller
20A5304511261 Frigidaire Oven Overlay Assembly
225304512931 Frigidaire Bracket
23BRACKET, CONTROL SUPPORT, LOWER, LCI
28316528700 Frigidaire Insulation Assembly
30316577600 Frigidaire Plug
53SHIELD, FLUE, INNER
56SHIELD, BACKGUARD, WHITE, INNER
57808950203 Frigidaire Shield
