CGIF3061NFF 02 – BACKGUARD

CGIF3061NFF 02 – BACKGUARD

Written by

in

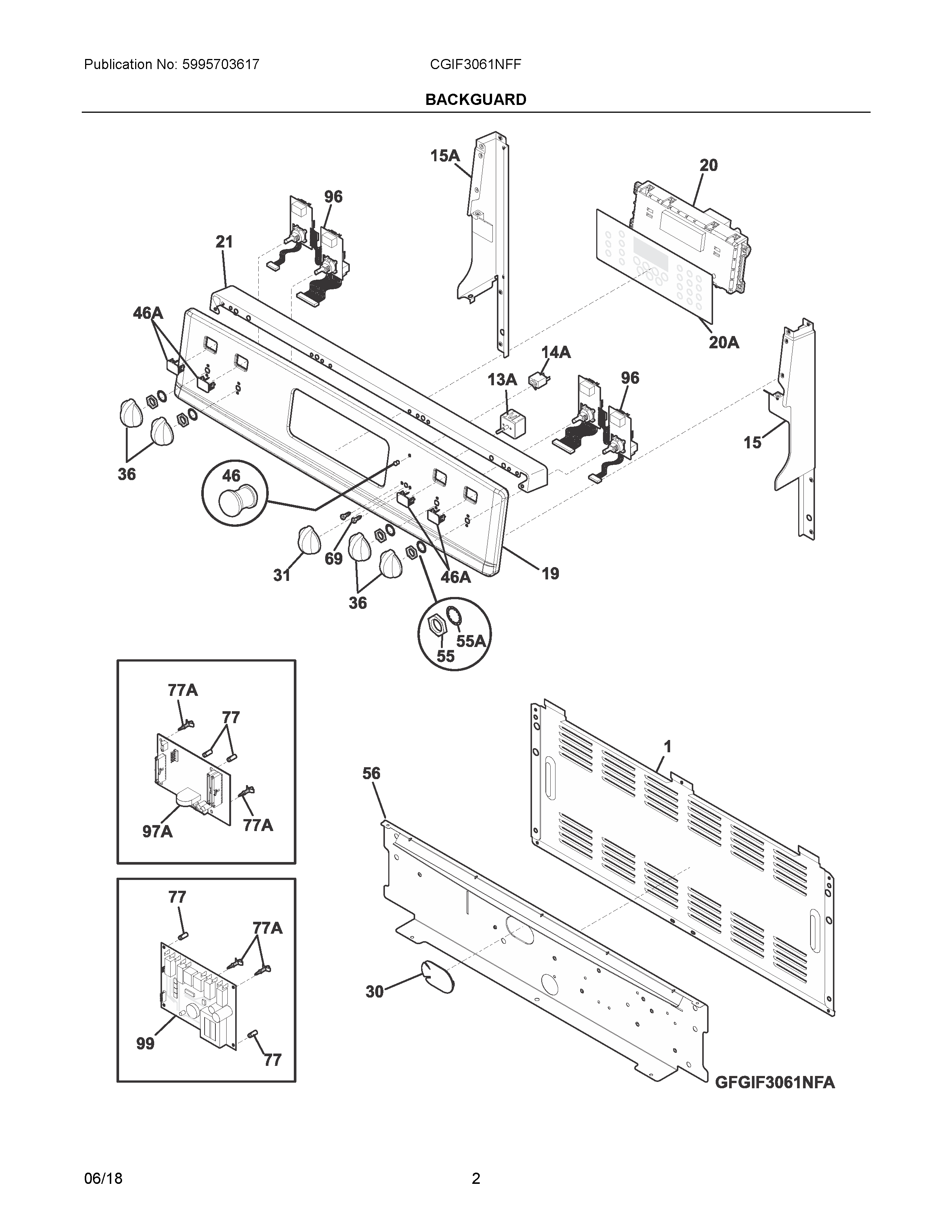

CGIF3061NFF 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316580520 Frigidaire Harness Assembly
NI5304517542 Frigidaire Harness
NI5304517543 Frigidaire Harness
NI5303289910 Frigidaire Oven Screw
NIBUSHING, OPEN HOLE, INDUCTION LEADS
1WCI 316557600
13A5304508926 Frigidaire Oven Temperature Control Switch
14A316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15ACAP, BACKGUARD, BLACK, LH END
15316546710 Frigidaire Oven Cap
19PANEL, BACKGUARD, BR ALUM
20A316419836 Frigidaire Range Overlay, Black
205304495522 Frigidaire Oven Kit
21316546605 Frigidaire Oven Cap
30316577600 Frigidaire Plug
31KNOB, CONTROL, STAINLESS, (5)
36KNOB, CONTROL, STAINLESS, MINI OVEN
46AWCI 316448000
46316557300 Frigidaire Range Indicator Light Lens
55A316247800 Frigidaire Oven Washer
55316247700 Frigidaire Oven Nut
56SHIELD, BACKGUARD, BLACK
695303288565 Frigidaire Screw
77316247900 Frigidaire Oven Spacer
77A316114100 Frigidaire Oven Spacer
96316445605 Frigidaire Oven Board
97A316578323 Frigidaire Oven Board
99316435703 Frigidaire Oven Board
