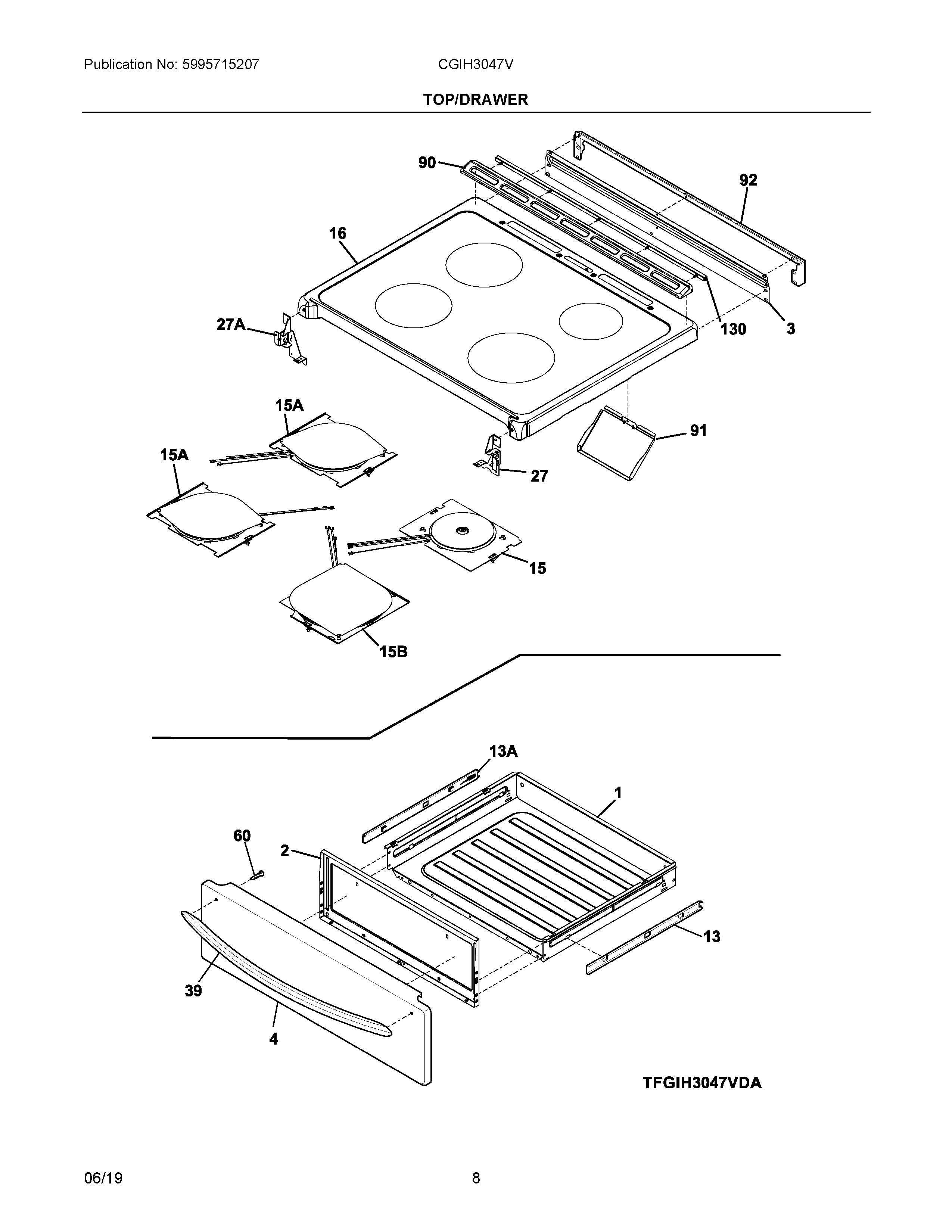

CGIH3047VDA 04 – TOP/DRAWER

CGIH3047VDA 04 – TOP/DRAWER

Written by

in

CGIH3047VDA 04 – TOP/DRAWER

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI5304517540 Frigidaire Harness
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1807108405 Frigidaire Drawer
25304527988 Frigidaire Liner
35304514133 Frigidaire Oven Shield
45304517133 Frigidaire Oven Panel
13A316415001 Frigidaire Oven Glide
13316415000 Frigidaire Oven Glide
15B387761249 Frigidaire Range Element Assembly
15A387404870 Frigidaire Range Element Assembly
15387404760 Frigidaire Range Element Assembly
165304519397 Frigidaire Smoothtop
275304514123 Frigidaire Bracket
27A5304514124 Frigidaire Bracket
395304518030 Frigidaire Handle
605304414648 Frigidaire Oven Screw
905304514157 Frigidaire Oven Trim
91DEFLECTOR, MOISTURE, (2)
925304520261 Frigidaire Rear Filler Kit
130808931802 Frigidaire Oven Seal
