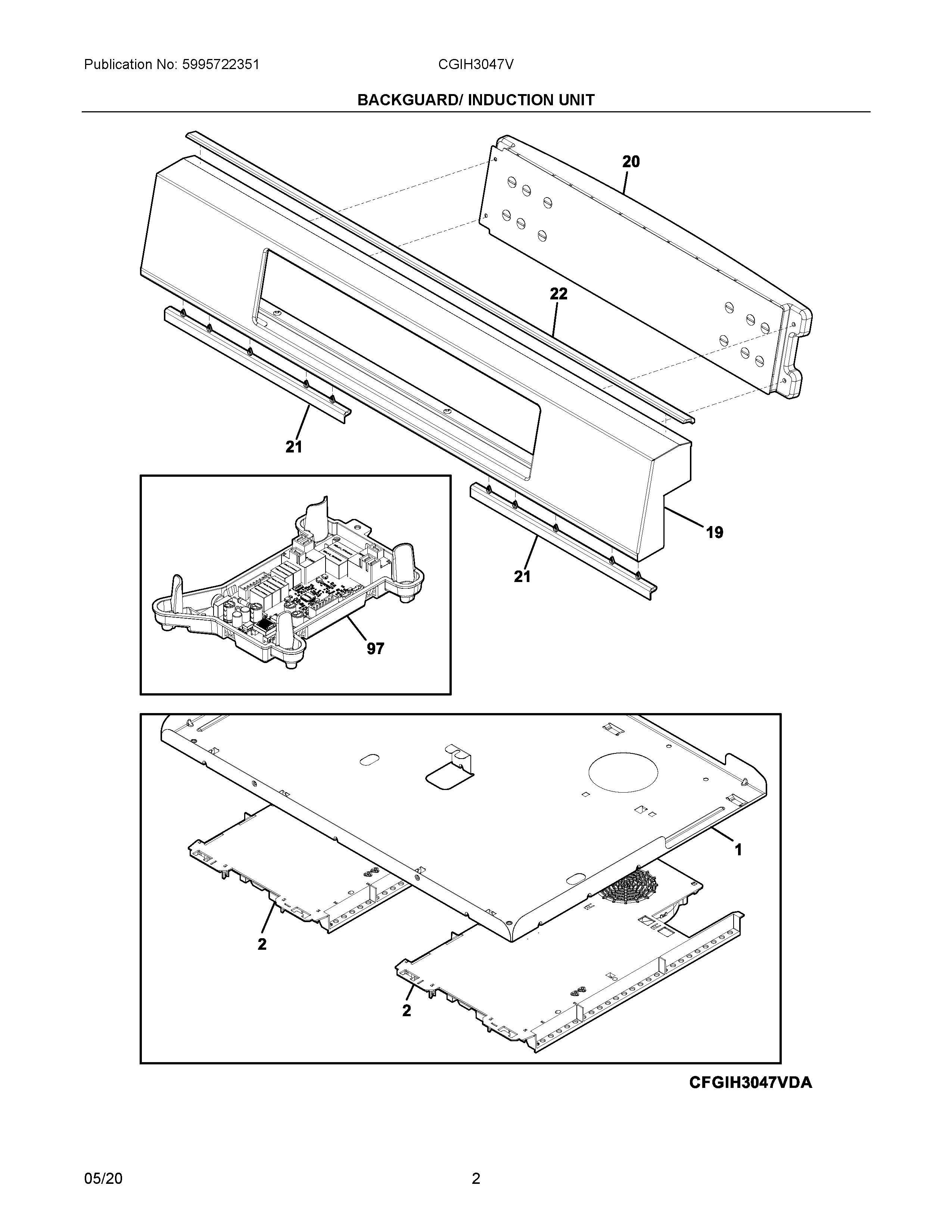

CGIH3047VDB 02 – BACKGUARD/ INDUCTION UNIT

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIA	5304521041 Frigidaire Insulator
NI	5304514353 Frigidaire Harness
NI	WCI 5304520393
NI	5304519440 Frigidaire Harness
NI	5304521814 Frigidaire Harness
NI	316021109 Frigidaire Oven Screw
NIA	5303289910 Frigidaire Oven Screw
1	PANEL, MOUNTING, INDUCTION
2	5304521812 Frigidaire Board Generator
19	5304519390 Frigidaire Control Panel
20	5304522786 Frigidaire Electric Control
21	5304521020 Frigidaire Oven Seal
22	5304521042 Frigidaire Guard Bumper
97	5304516862 Frigidaire Oven Board
