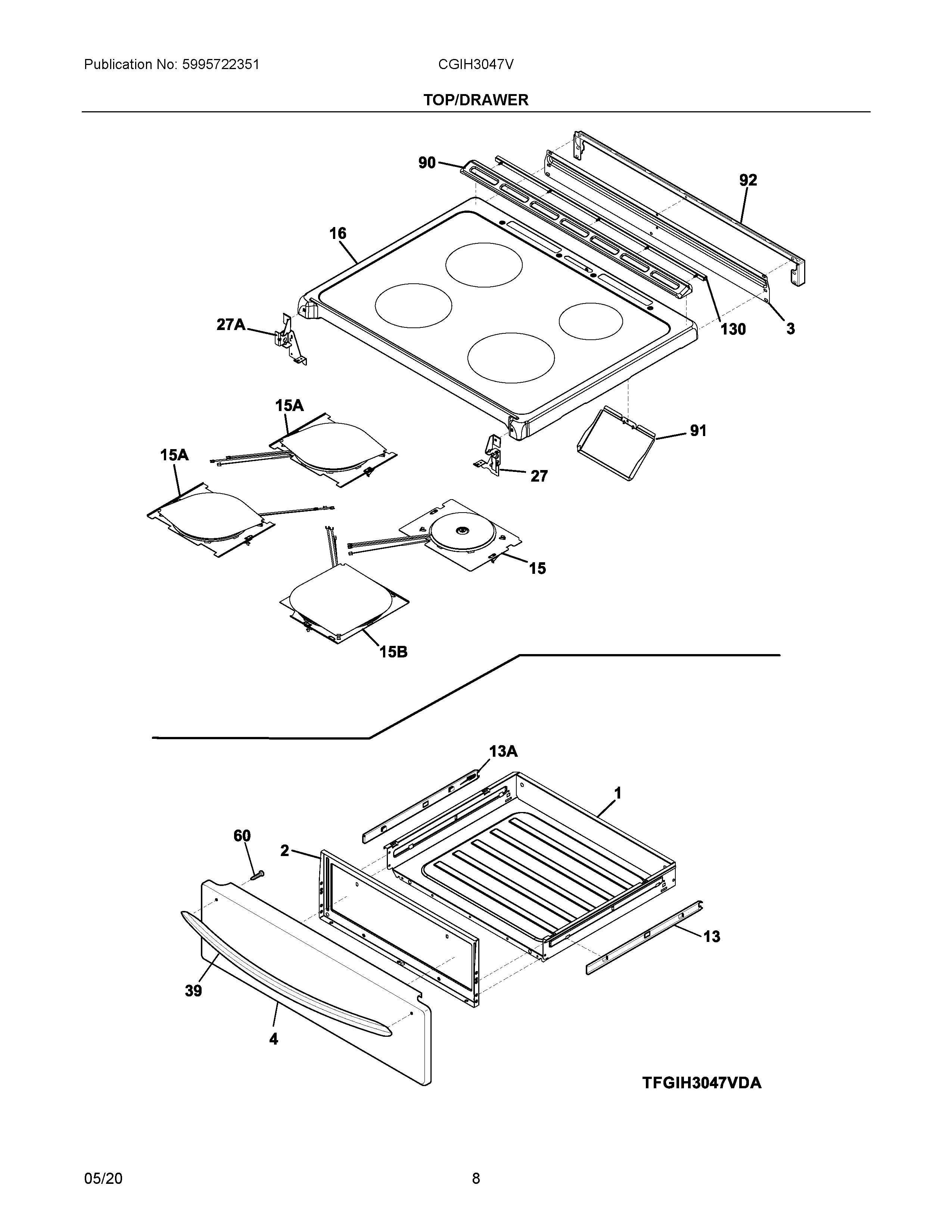

CGIH3047VDB 04 – TOP/DRAWER

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	316021105 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
1	807108405 Frigidaire Drawer
2	5304527988 Frigidaire Liner
3	5304514133 Frigidaire Oven Shield
4	5304517133 Frigidaire Oven Panel
13	316415000 Frigidaire Oven Glide
13A	316415001 Frigidaire Oven Glide
15B	387761249 Frigidaire Range Element Assembly
15A	387404870 Frigidaire Range Element Assembly
15	387404760 Frigidaire Range Element Assembly
16	5304519397 Frigidaire Smoothtop
27A	5304514124 Frigidaire Bracket
27	5304514123 Frigidaire Bracket
39	5304518030 Frigidaire Handle
60	5304414648 Frigidaire Oven Screw
90	5304514157 Frigidaire Oven Trim
91	DEFLECTOR, MOISTURE, (2)
92	5304520261 Frigidaire Rear Filler Kit
130	808931802 Frigidaire Oven Seal
