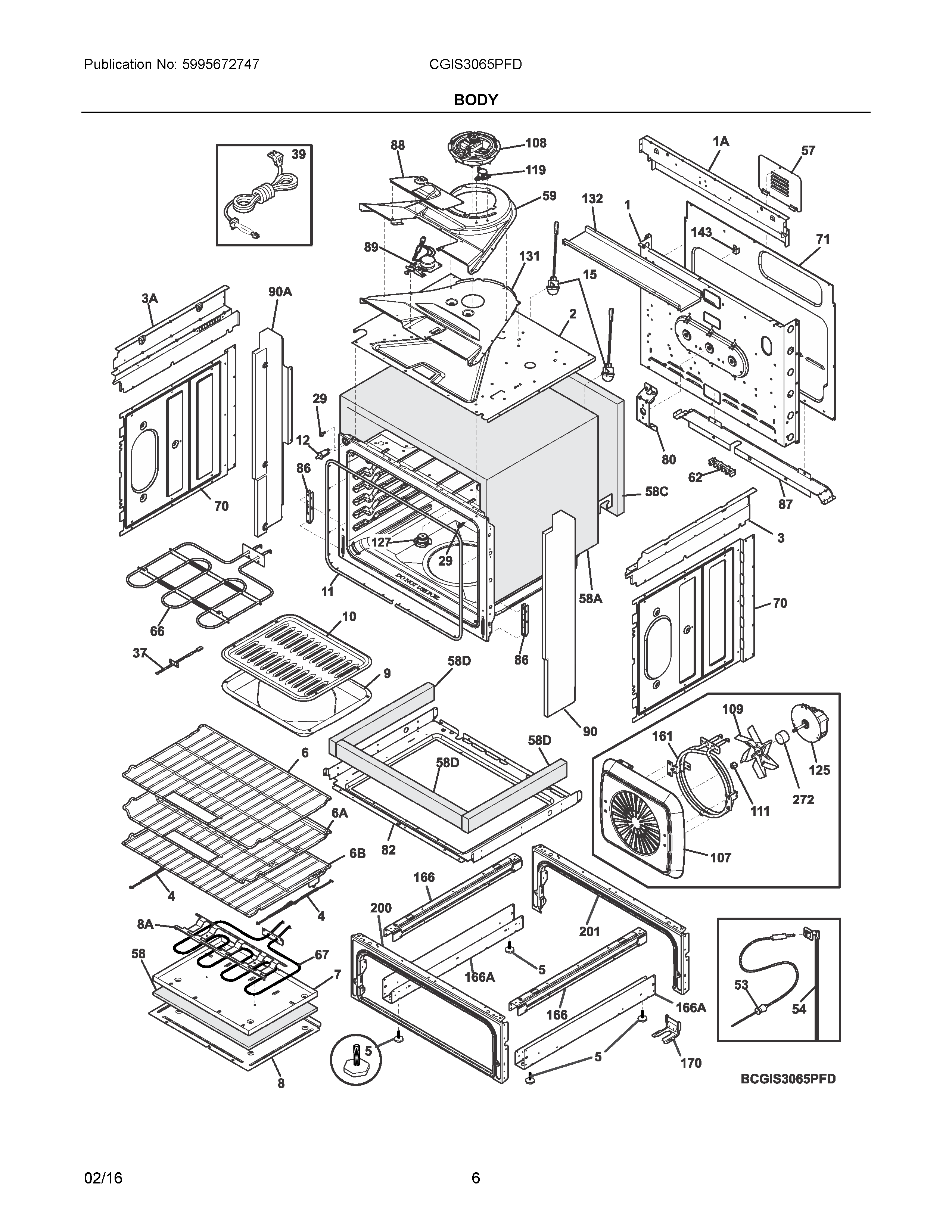

CGIS3065PFD 04 – BODY

CGIS3065PFD 04 – BODY

Written by

in

CGIS3065PFD 04 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA807597603 Frigidaire Oven Screw
NI318235301 Frigidaire Assembly Connector
NIA316418900 Frigidaire Oven Screw
NIAWCI 318579001
NI318531701 Frigidaire Spacer
NI5304517788 Frigidaire ES53 Main Harness
NIWCI 316581300
NI5304517813 Frigidaire Harness
NIA318946500 Frigidaire Oven Light Bulb Range/Wall
NI5303289910 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NIA316116000 Frigidaire Screw
NIA316001017 Frigidaire Screw
1A139004600 Frigidaire Oven Panel
1139017306 Frigidaire Oven Panel
2139028107 Frigidaire Shield
3A139087300 Frigidaire Oven Panel
3139087301 Frigidaire Oven Panel
4WCI 318927600
5318175503 Frigidaire Screw with Bolt
6A139012400 Frigidaire Oven Rack
65304514983 Frigidaire Oven Rack
6B139013101 Frigidaire Oven Rack
7318297303 Frigidaire Oven Box
8A318313601 Frigidaire Oven Bracket
8318359500 Frigidaire Oven Panel
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
39WCI 318113111
535304504202 Frigidaire Red Meat Temperature Probe
545304517721 Frigidaire Assembly Receptacle
57316283600 Frigidaire Oven Cover
58D139020301 Frigidaire INSULATION
58A139001700 Frigidaire Insulation
58318294912 Frigidaire Insullation
58CWCI 139020201
59139027600 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521498 Frigidaire Element
675304521880 Frigidaire Element
70139000601 Frigidaire Oven Shield
71139014001 Frigidaire Oven Shield
80139021101 Frigidaire Bracket Assembly
82139008201 Frigidaire Shield
86318561100 Frigidaire Receptacle
87WCI 318260625
885304506964 Frigidaire Oven Cover
895304528836 Frigidaire Motor
90A5304511890 Frigidaire Oven Panel
905304511889 Frigidaire Oven Panel
107139013903 Frigidaire Oven Vent Hood Cover
108318575612 Frigidaire Oven Cooling Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119807144901 Frigidaire Thermostat
125139008500 Frigidaire Oven Motor
127139042600 Frigidaire Tube Assembly
131139027700 Frigidaire Oven Duct
132WCI 318404704
143318172904 Frigidaire Bracket
161139006500 Frigidaire Oven Element
166318298410 Frigidaire Oven Bracket
166A5304511884 Frigidaire Oven Bracket
1705304486410 Frigidaire Oven Kit
200WCI 318298232
201318298233 Frigidaire Oven Frame
272139021700 Frigidaire Oven Tube
