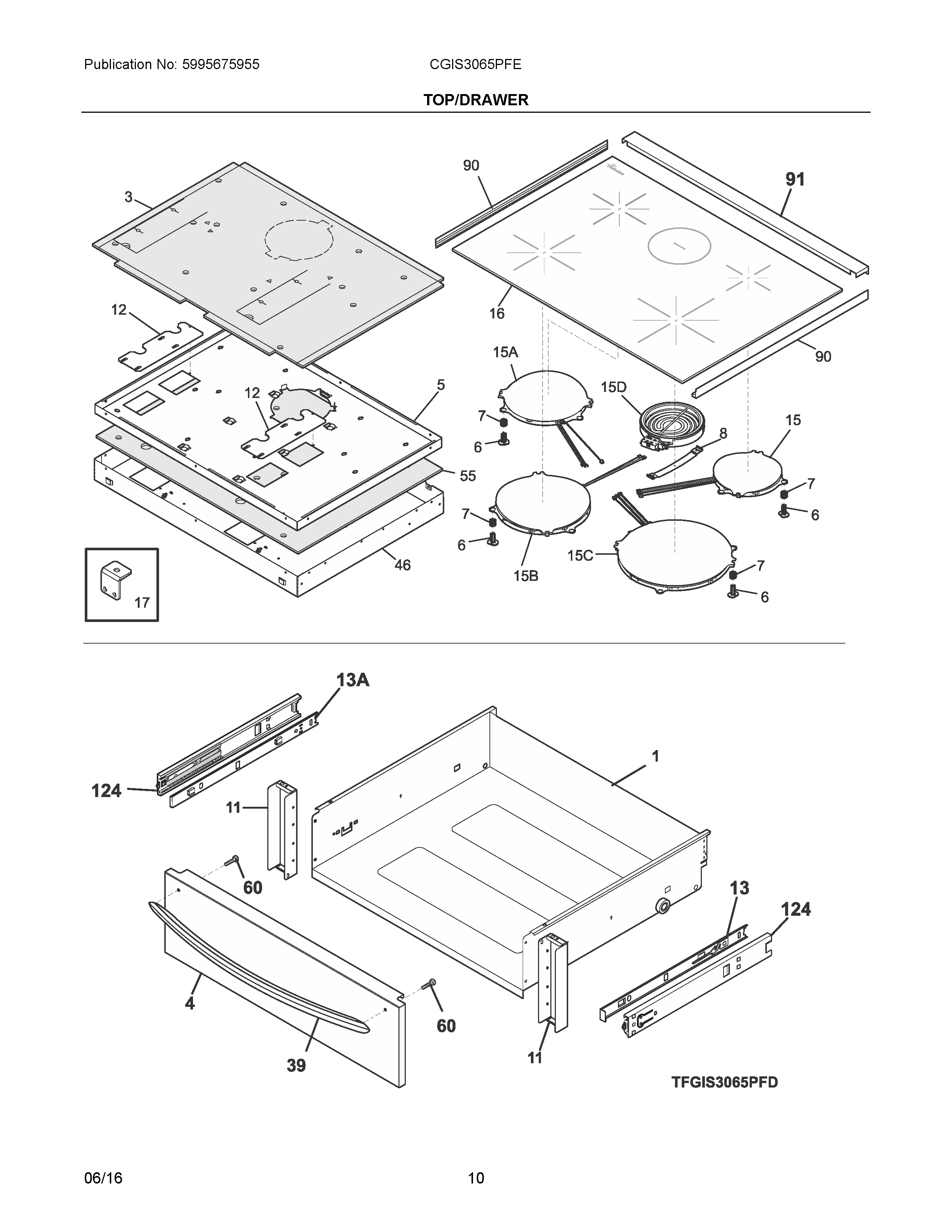

CGIS3065PFE 05 – TOP/DRAWERadmin2025-04-26T08:50:18+00:00CGIS3065PFE 05 – TOP/DRAWER
Products
| Position | Product |
|---|
| NI | 316021105 Frigidaire Oven Screw |
| NI | 5304517793 Frigidaire Generator 3 Harness |
| NI | NUT, KEPS, 8-32, (2) |
| NI | 5304501948 Frigidaire Screw |
| NI | 316021109 Frigidaire Oven Screw |
| 1 | 318107317 Frigidaire Oven Drawer |
| 3 | WCI 808318402 |
| 4 | 318298829 Frigidaire Oven Panel |
| 5 | PANEL, MOUNTING |
| 6 | 318405000 Frigidaire Oven Pin |
| 7 | 318534300 Frigidaire Spring |
| 8 | 318122006 Frigidaire Small Element Mounting Spring |
| 11 | WCI 318298600 |
| 12 | SHIELD, EMI |
| 13A | WCI 318259505 |
| 13 | WCI 318259504 |
| 15C | 318329244 Frigidaire Oven Element |
| 15B | 318329243 Frigidaire Oven Heating Element |
| 15A | 318329242 Frigidaire Oven Element |
| 15 | 318329241 Frigidaire Oven Element |
| 15D | ELEMENT,RADIANT,100W,WARMER |
| 16 | WCI 139033844 |
| 17 | BRACKET, TOP LATCH, (2) |
| 39 | 316554010 Frigidaire Stainless Steel Handle |
| 46 | BOX, BURNER |
| 55 | INSULATION, SERVICE PANEL |
| 60 | 5304414648 Frigidaire Oven Screw |
| 90 | WCI 318368001 |
| 91 | 903113-9010 Frigidaire Filler Kit Assembly |
| 124 | WCI 318330600 |
