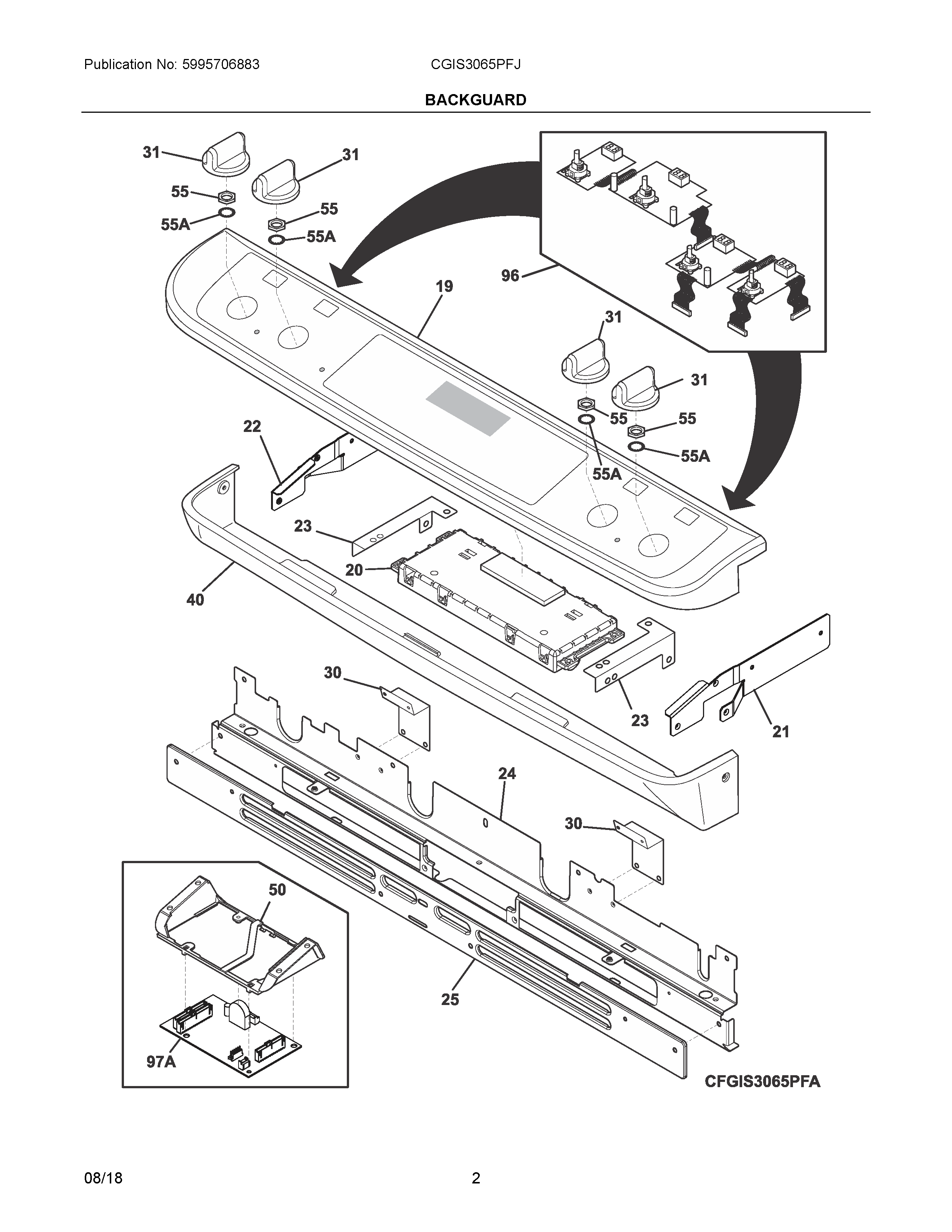

CGIS3065PFJ 02 – BACKGUARD

CGIS3065PFJ 02 – BACKGUARD

Written by

in

CGIS3065PFJ 02 – BACKGUARD

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304517733 Frigidaire Harness
NIWCI 5304517717
NIAAWCI 5304497426
NIHARNESS-BG COMM E ES530/575
NI316021109 Frigidaire Oven Screw
NIA5304453707 Frigidaire Oven Screw
19139059422 Frigidaire Panel Assembly
205304503758 Frigidaire Controller
21BRACKET, SUPPORT, RH, CONTROL PANEL
22808735904 Frigidaire Oven Bracket
23WCI 318921300
24139074902 Frigidaire Vent Trim Frame
25139075001 Frigidaire Oven Cover
30318928502 Frigidaire Oven Bracket
31KNOB, CONTROL, STAINLESS, (5)
40318912908 Frigidaire Oven Panel
50WCI 318917700
55316247700 Frigidaire Oven Nut
55A316247800 Frigidaire Oven Washer
96318411412 Frigidaire Control Assembly
97A316578339 Frigidaire Oven Control Board
