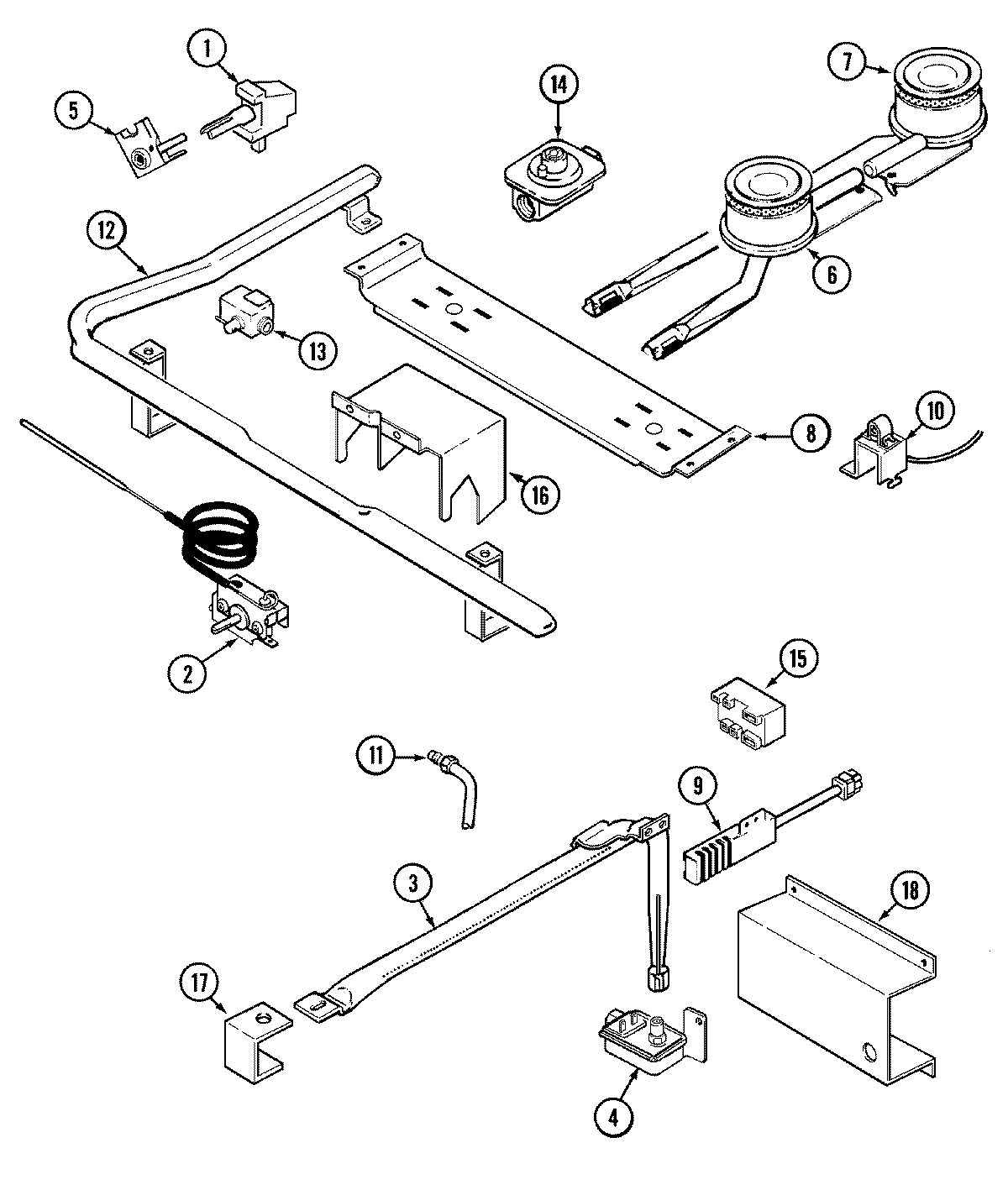

CGL1120ADH 03 – GAS CONTROLS
Written by
in
CGL1120ADH 03 – GAS CONTROLS
Products
Position
Product
NI
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1
MAY 74003303
1
MAY 12002244
1
WP8273096 Whirlpool Screw
2
WP74002390 Whirlpool Oven Thermostat
2
SCREW
3
MAY 3403D048-45
4
MAY 74003311
4
MAY 74007335
5
MAY 7101P356-60
5
MAY 74002384
5
MAY 74009415
6
WP74010145 Whirlpool Burner
6
MAY 74003299
7
W11218700 Whirlpool Top Burner Assembly
7
MAY 74003300
8
MAY 74010147
8
MAY 74003308
9
MAY 7432P076-60
10
MAY 74004467
10
MAY 74004468
10
MAY 7432P028-60
10
MAY 7432P029-60
11
MAY 3414F085-44
12
MAY 74003309
13
MAY 7502P002-60
14
MAY 7510P049-60
15
MAY 74004282
15
MAY 4005F319-45
15
MAY 7431P006-60
15
MAY 74006886
16
MAY 74003310
17
MAY 3807F336-51
18
MAY 3807F369-45
←
