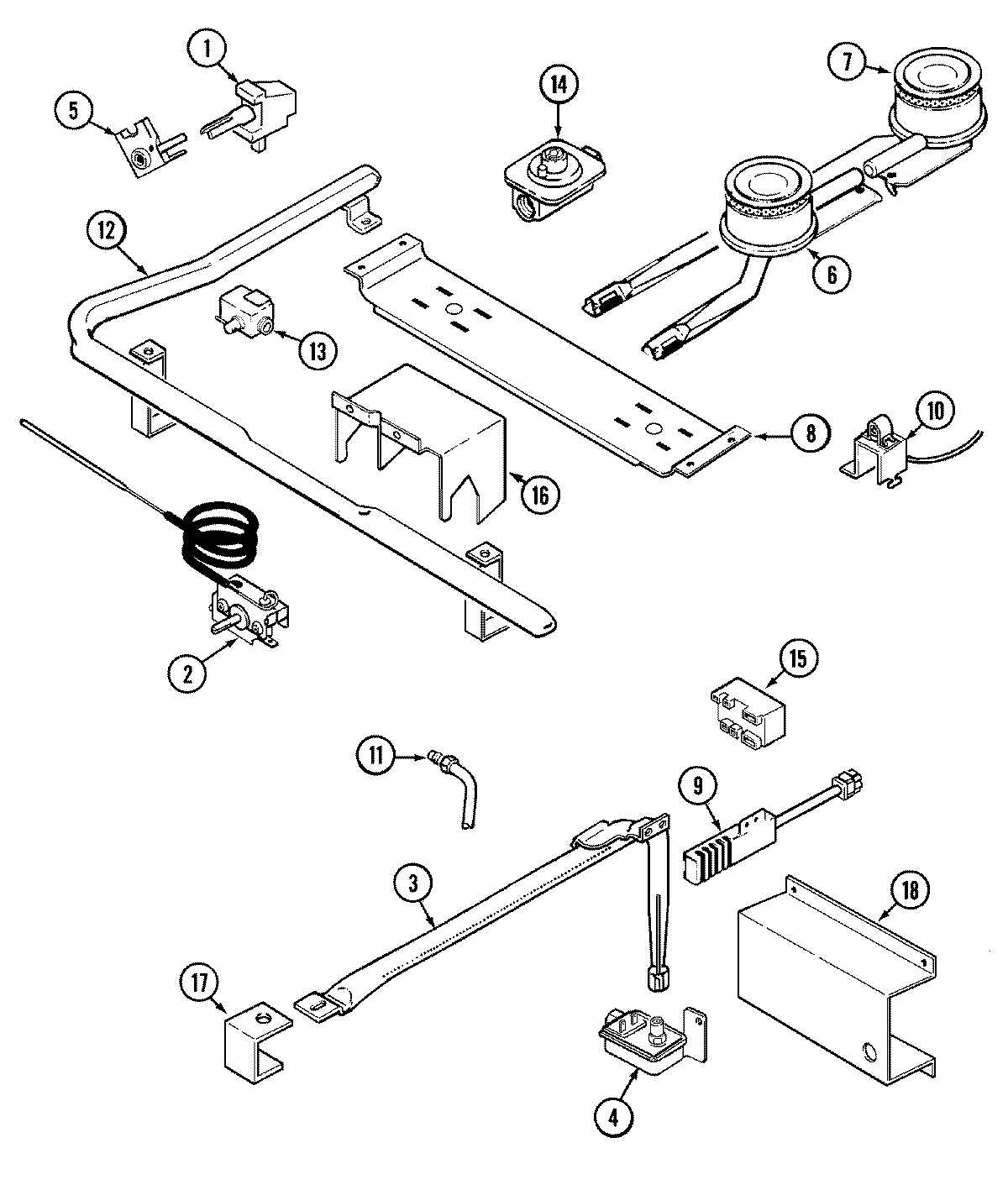

CGL1120ADT 03 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1	MAY 74003303
1	MAY 12002244
1	WP8273096 Whirlpool Screw
2	SCREW
2	WP74002390 Whirlpool Oven Thermostat
3	MAY 3403D048-45
4	MAY 74003311
4	MAY 74007335
5	MAY 74002384
5	MAY 7101P356-60
5	MAY 74009415
6	MAY 74003299
6	WP74010145 Whirlpool Burner
7	W11218700 Whirlpool Top Burner Assembly
7	MAY 74003300
8	MAY 74003308
8	MAY 74010147
9	MAY 7432P076-60
10	MAY 74004468
10	MAY 74004467
11	MAY 3414F085-44
12	MAY 74003309
13	MAY 7502P002-60
14	MAY 7510P049-60
15	MAY 74004282
15	MAY 4005F319-45
15	MAY 74006886
16	MAY 74003310
17	MAY 3807F336-51
18	MAY 3807F369-45
