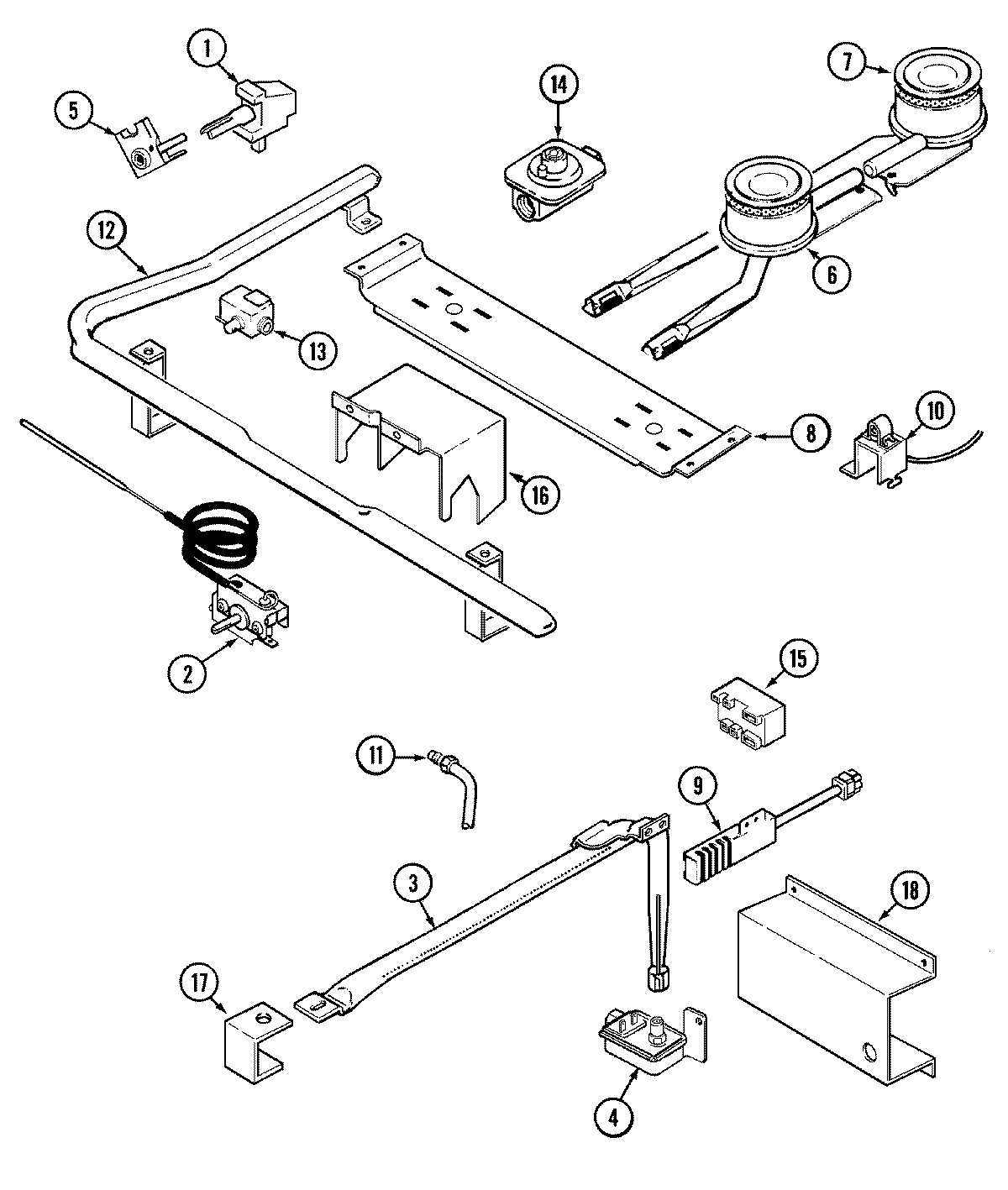

CGL1125ADH 02 – GAS CONTROLS

Products

Position	Product
NI	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
1	MAY 12002244
1	MAY 74003303
1	WP8273096 Whirlpool Screw
2	WP74002390 Whirlpool Oven Thermostat
2	MAY 7101P280-60
3	MAY 3403D048-45
4	WP4159193 Whirlpool Screw
4	MAY 3807F370-45
4	MAY 74003311
5	MAY 74009415
5	MAY 74002384
6	MAY 74003299
6	WP74010145 Whirlpool Burner
7	MAY 74003300
7	W11218700 Whirlpool Top Burner Assembly
8	MAY 74003308
8	MAY 74010147
9	SCREW No.10 X 2
9	WP59002061 Whirlpool Microwave Screw
9	MAY 7432P076-60
10	MAY 74004468
10	MAY 74004467
10	MAY 7101P313-60
10	WP7101P072-60 Whirlpool Screw
10	MAY 7103P071-60
10	MAY 7432P029-60
10	MAY 7432P028-60
11	MAY 3414F085-44
12	MAY 74003309
13	MAY 7502P002-60
14	MAY 7510P049-60
15	MAY 74004282
15	MAY 7431P006-60
16	MAY 74003310
17	MAY 3807F336-51
17	MAY 7101P356-60
18	MAY 3807F369-45
