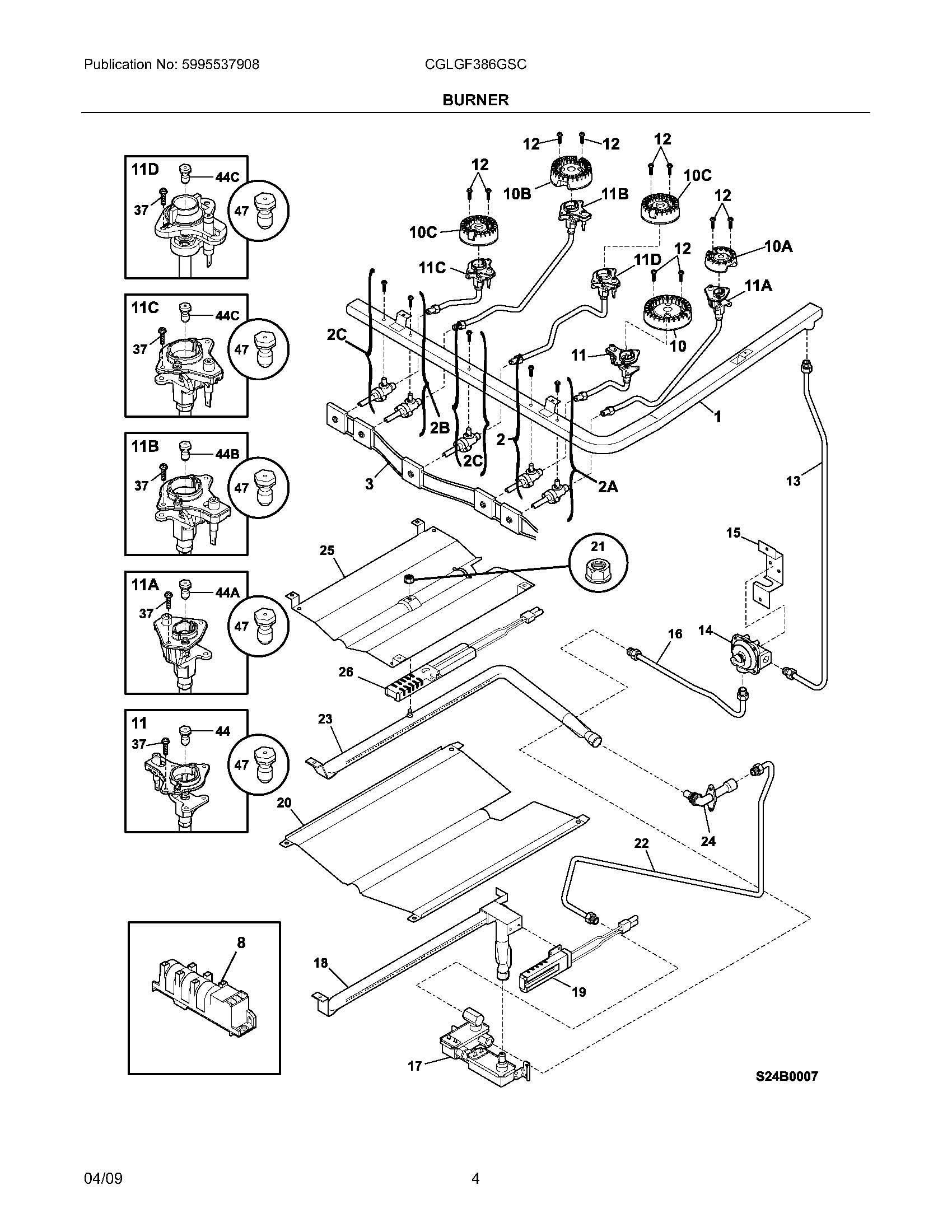

CGLGF386GSC 05 – BURNER

CGLGF386GSC 05 – BURNER

Written by

in

CGLGF386GSC 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NIWCI 316253702
NI316001017 Frigidaire Screw
NIWCI 316064103
NI316498100 Frigidaire Shield
NI5303271648 Frigidaire Oven Screw
NI316417518 Frigidaire Instructions
NI316401500 Frigidaire Oven Cover
NI316215600 Frigidaire Oven Screw
1WCI 316551202
2B5303935306 Frigidaire Oven Valve
2C5303935305 Frigidaire Oven Valve
2A5303935308 Frigidaire Oven Valve
2WCI 5303935233
3WCI 316219017
8SPARK MODULE
10B316438000 Frigidaire Sealed Burner 12K Assembly
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
10316438400 Frigidaire Range Sealed Burner, 16/17K
11B316536612 Frigidaire Igniter Assembly/Orifice
11D316536623 Frigidaire Igniter/Orifice Assembly
11C316536602 Frigidaire Oven Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
11316536621 Frigidaire Igniter and Orifice Assembly
12WCI 316529700
13WCI 316545700
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17316404901 Frigidaire Oven Valve
18316404400 Frigidaire Oven Burner
195304534663 Frigidaire Igniter
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23WCI 316404300
245304516894 Frigidaire Oven Elbow
25WCI 316401301
26316489401 Frigidaire Igniter Assembly
37316240600 Frigidaire Igniter Mounting Screw
44316527508 Frigidaire Oven Orifice
44B316527502 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
44A316527504 Frigidaire Oven Orifice
47GRLP3 Frigidaire Oven LP Conversion Kit
