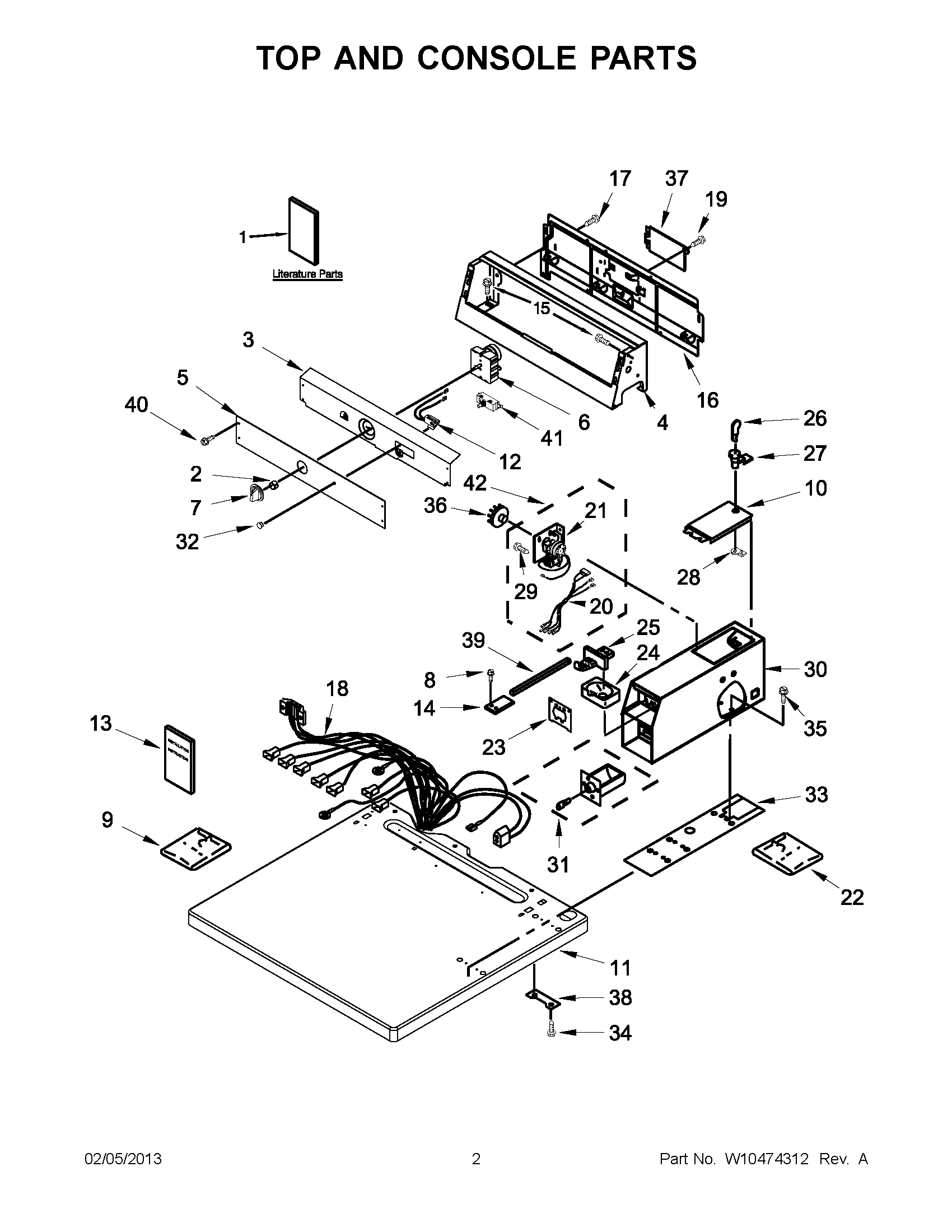

CGM2743BQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Wiring Diagram
1	INSTALLATION INSTRUCTIONS
2	Clip, Knob
3	W10461070 Whirlpool Bracket
4	W10461094 Whirlpool Control Panel
5	W10461113 Whirlpool Overlay
6	WPW10327105 Whirlpool Cycle Switch
7	W10492415 Whirlpool Knob
8	WP3400029 Whirlpool Dishwasher Nut
9	WPL 8316532
10	WP693995 Whirlpool Screw
11	WPW10136707 Whirlpool Top Assembly
11	W10492412 Whirlpool Top
12	W10662107 Whirlpool Light Bulb
13	WPL 8316524
14	3390424 Whirlpool Extension
15	WP90767 Whirlpool Screw
16	W11089934 Whirlpool Rear Panel
17	WP488729 Whirlpool Refrigerator Door Screw
18	W10153108 Whirlpool Wire Harness
19	303776 Whirlpool Dishwasher Screw
20	W10177793 Whirlpool Wire Harness
21	W11451464 Whirlpool Dryer Timer
22	WP3406965 Whirlpool Coin Chute
23	279950 Whirlpool Funnel
24	WP385421 Whirlpool Coin Operated Laundry Funnel
25	WPL 8316265
25	W11126319 Whirlpool Washer Dryer Coin Chute
25	Inserts (Not Shown
26	KEY
27	W11315637 Whirlpool Lock Assembly
28	WP90406 Whirlpool Nut
29	339805 Whirlpool Screw
30	WPW10461200 Whirlpool Case
31	W11190039 Whirlpool Coin Box Assembly
32	WPW10133502 Whirlpool Lens
33	WP3954812 Whirlpool Cushion
34	W10841059 Whirlpool Screw
35	W11715721 Whirlpool Screw Assembly
36	WP343777 Whirlpool Cam
36	WP3387974 Whirlpool Cam
37	W10819767 Whirlpool Cover
38	3347825 Whirlpool Plate
39	WP8576635 Whirlpool Bolt
40	WPW10131119 Whirlpool Screw
41	W11097274 Whirlpool Push-To-Start Switch
42	W11596043 Whirlpool Wire Harness
