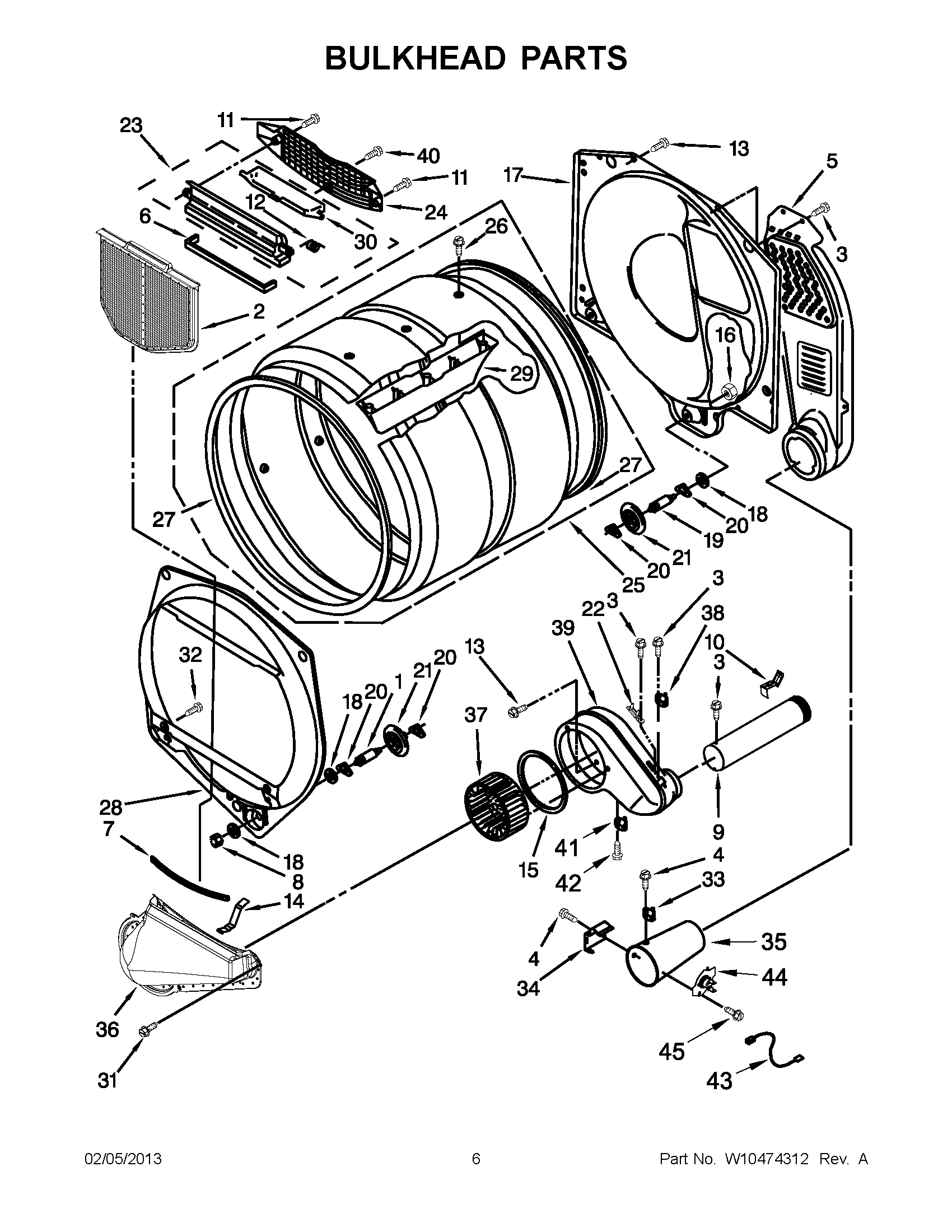

CGM2743BQ0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	W10120998 Whirlpool Dryer Lint Screen Filter
3	WP90767 Whirlpool Screw
5	W11168650 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	279936 Whirlpool Exhaust Pipe
10	W11684573 Whirlpool Clip Assembly
11	WP3387230 Whirlpool Screw
12	WP3394986 Whirlpool Spring
13	WP488729 Whirlpool Refrigerator Door Screw
14	WP8066208 Whirlpool Clip
15	WP697770 Whirlpool Blower Cover Plate Seal
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP3392519 Whirlpool Dryer Thermal Fuse
23	W11197085 Whirlpool Outer Housing
24	W11086603 Whirlpool Dryer Link Screen Air Grille
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WP697557 Whirlpool Bulkhead Assembly
29	WPW10113136 Whirlpool Drum Baffle
30	W10181925 Whirlpool Door
31	WP489463 Whirlpool Refrigerator Screw
32	WP308685 Whirlpool Microwave Screw
33	THRMST-FIX
34	WP338906 Whirlpool Dryer Gas Sensor
35	WP8573824 Whirlpool Funnel
36	WPW10128606 Whirlpool Lint Duct
37	WHEEL
38	W10178810 Whirlpool Thermostat
39	W10888146 Whirlpool Housing
41	WPW10131836 Whirlpool Thermostat
42	WP693995 Whirlpool Screw
43	WP3401707 Whirlpool Wire Assembly
