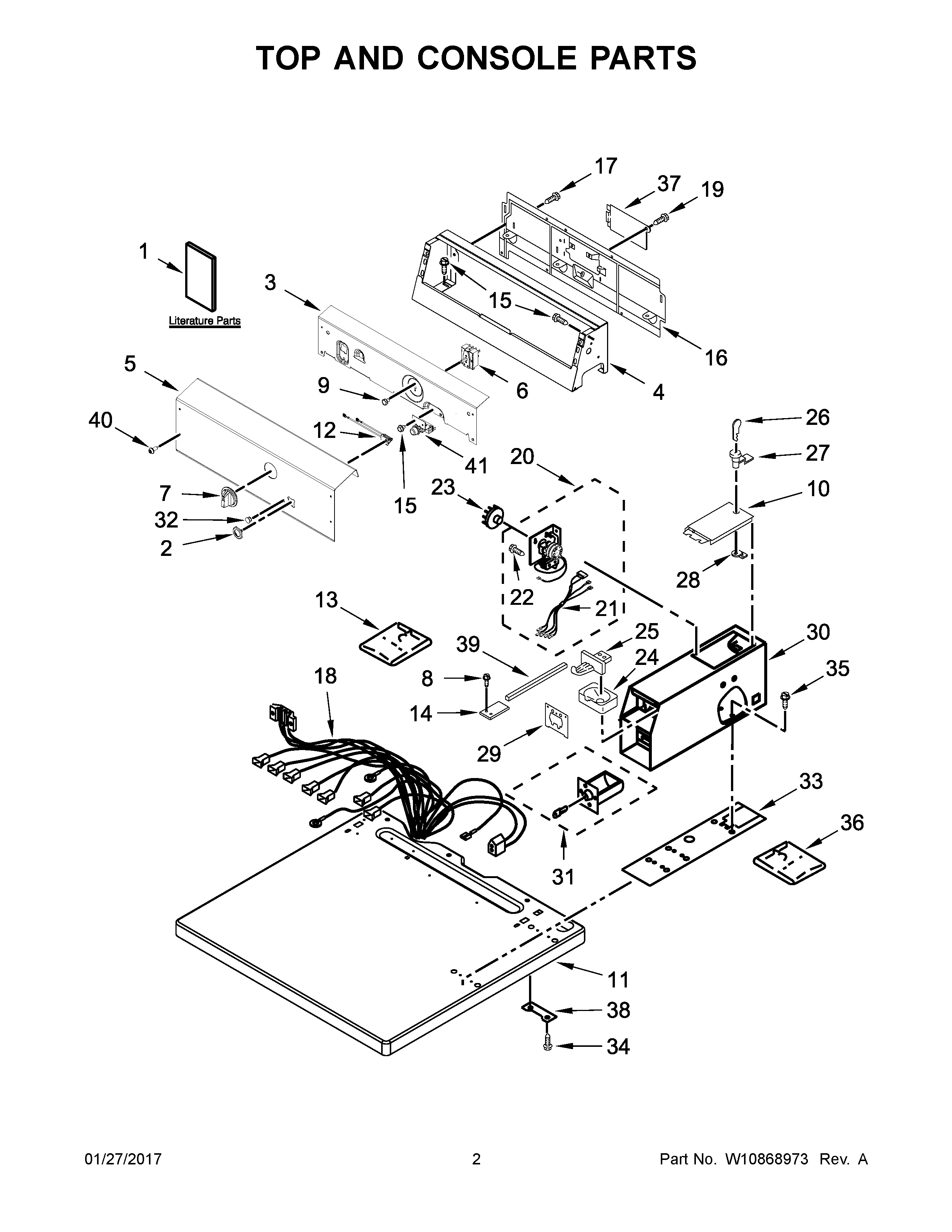

CGM2745FQ0 02 – TOP AND CONSOLE PARTS

CGM2745FQ0 02 – TOP AND CONSOLE PARTS

Written by

in

CGM2745FQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWiring Diagram
12745 MODEL, INSTALLATION INSTRUCTIONS
1A2765 MODEL, INSTALLATION INSTRUCTIONS
2W10510149 Whirlpool Bezel
3W10461070 Whirlpool Bracket
4W10461094 Whirlpool Control Panel
5W10845275 Whirlpool Dryer Overlay
6WPW10327105 Whirlpool Cycle Switch
7W10492415 Whirlpool Knob
8WP3400029 Whirlpool Dishwasher Nut
9SCREW
10W11283272 Whirlpool Washer Dryer Meter Case Access Door
11AWPW10136707 Whirlpool Top Assembly
11W10492412 Whirlpool Top
12W10662107 Whirlpool Light Bulb
13WPL 8316524
143390424 Whirlpool Extension
15WP90767 Whirlpool Screw
16W11089934 Whirlpool Rear Panel
17WP488729 Whirlpool Refrigerator Door Screw
18W10153108 Whirlpool Wire Harness
19303776 Whirlpool Dishwasher Screw
20W11596043 Whirlpool Wire Harness
21W10177793 Whirlpool Wire Harness
22339805 Whirlpool Screw
23AWP343777 Whirlpool Cam
23WP3387974 Whirlpool Cam
24WP385421 Whirlpool Coin Operated Laundry Funnel
25AWPL 8316265
25W11126319 Whirlpool Washer Dryer Coin Chute
26KEY
27W11315637 Whirlpool Lock Assembly
28WP90406 Whirlpool Nut
29279950 Whirlpool Funnel
30WPW10461200 Whirlpool Case
31W11190039 Whirlpool Coin Box Assembly
32WPW10133502 Whirlpool Lens
33WP3954812 Whirlpool Cushion
34W10841059 Whirlpool Screw
35W11715721 Whirlpool Screw Assembly
36WP3406965 Whirlpool Coin Chute
37W10819767 Whirlpool Cover
383347825 Whirlpool Plate
39WP8576635 Whirlpool Bolt
40WPW10131119 Whirlpool Screw
41W11097274 Whirlpool Push-To-Start Switch
