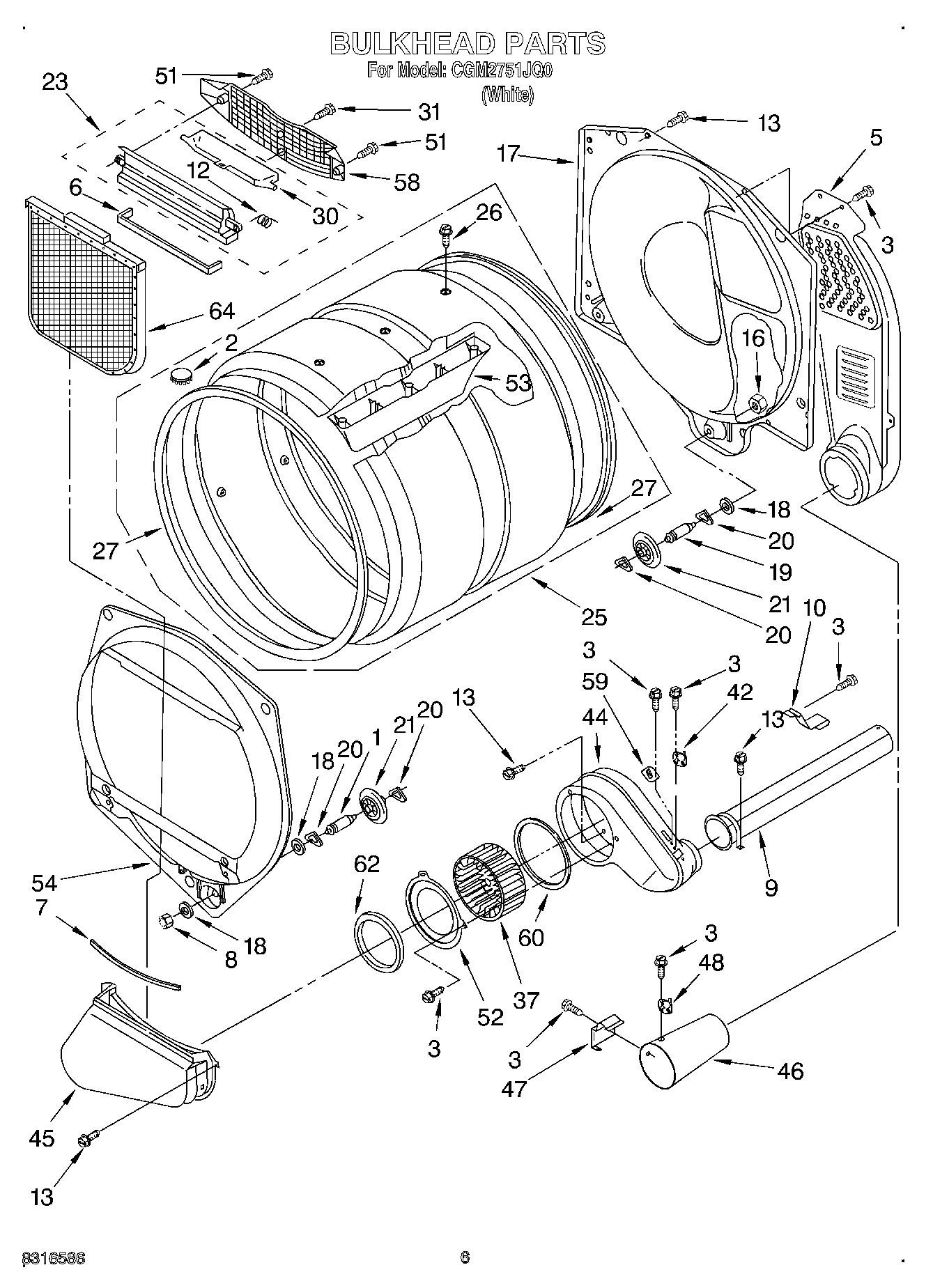

CGM2751JQ0 04 – BULKHEAD

Products

Position	Product
1	SHAFT
2	8066086 Whirlpool Plug
3	WPW10139210 Whirlpool Screw
5	W11168650 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WP3359452 Whirlpool Nut
9	279936 Whirlpool Exhaust Pipe
10	WP3395536 Whirlpool Clip Assembly
12	WP3394986 Whirlpool Spring
13	WP488729 Whirlpool Refrigerator Door Screw
16	Nut, 3/8-16 (L.H.)
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
23	W11129408 Whirlpool Out Housing
25	W10545924 Whirlpool Drum Assembly
26	WPW10109200 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
30	W11222846 Whirlpool Door
37	WP697772 Whirlpool Dryer Blower Wheel
42	WP3387138 Whirlpool Cycling Thermostat
44	WP8544363 Whirlpool Housing
45	Lint Duct Assembly
46	WP8066047 Whirlpool Funnel
47	WP338906 Whirlpool Dryer Gas Sensor
48	THRMST-FIX
51	WP3387230 Whirlpool Screw
52	279780 Whirlpool Plate Cover
53	WPW10113136 Whirlpool Drum Baffle
54	WP697557 Whirlpool Bulkhead Assembly
58	W11086603 Whirlpool Dryer Link Screen Air Grille
59	WP3390719 Whirlpool Dryer Thermal Fuse
60	WP697770 Whirlpool Blower Cover Plate Seal
62	WP8566209 Whirlpool Seal
64	799344 Whirlpool Refrigerator Paint
64	W10120998 Whirlpool Dryer Lint Screen Filter
64	72017 Whirlpool Appliance Touch-Up Paint White
64	350930 Whirlpool White Spray Paint
