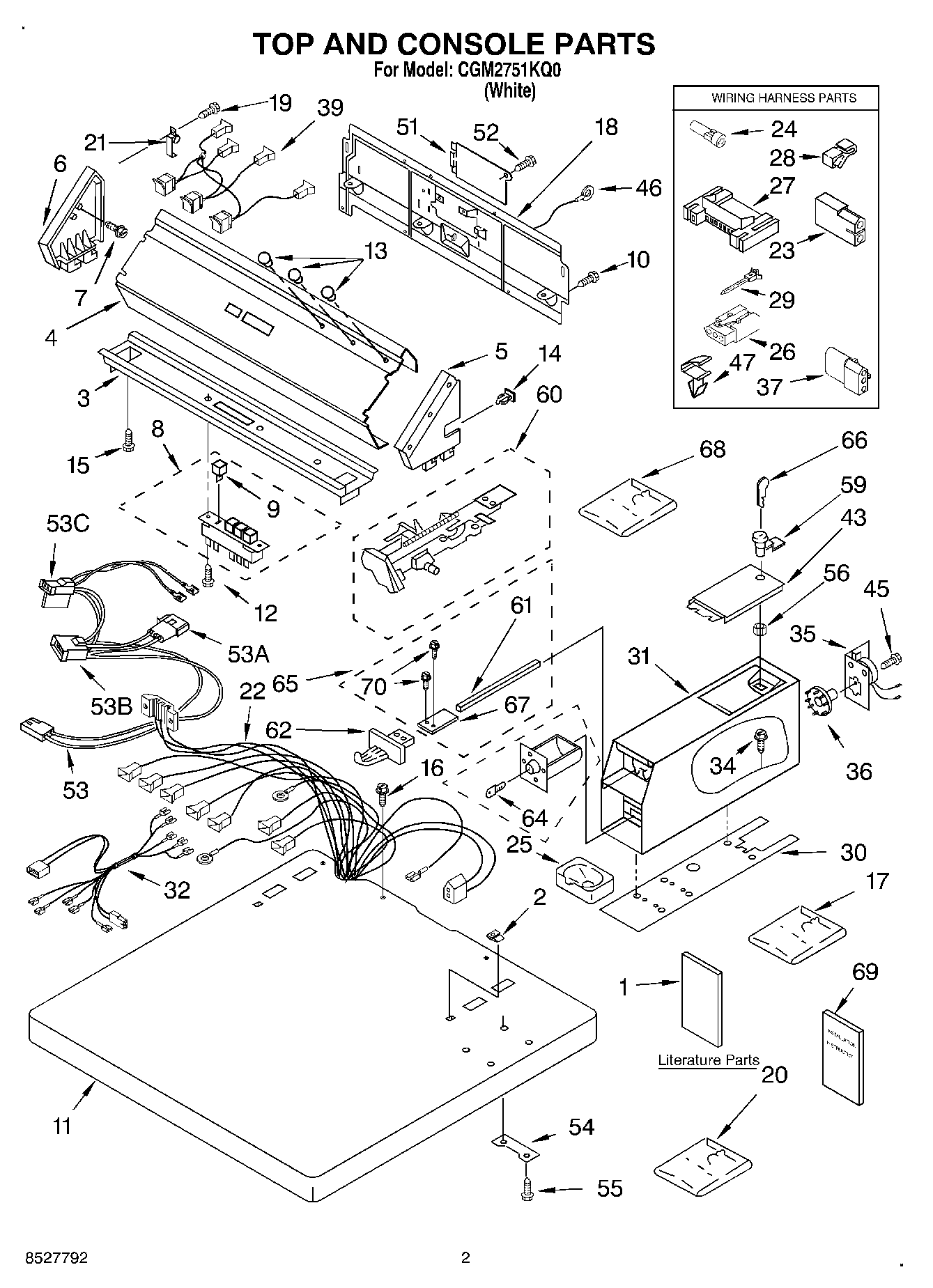

CGM2751KQ0 02 – TOP AND CONSOLE, LITERATURE

CGM2751KQ0 02 – TOP AND CONSOLE, LITERATURE

Written by

in

CGM2751KQ0 02 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
1Literature Parts (Repair Parts List)
1Literature Parts (Instructions. Installation)
1Literature Parts (Label, Wiring Diagram)
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
9SWITCH-PB
10WP693995 Whirlpool Screw
11Top
12WP355214 Whirlpool Screw
13WP3348109 Whirlpool Light Lens
14WP689559 Whirlpool Nut
15WPW10139210 Whirlpool Screw
16SCREW
17279950 Whirlpool Funnel
18W11089934 Whirlpool Rear Panel
19WP488729 Whirlpool Refrigerator Door Screw
20WP3406965 Whirlpool Coin Chute
21Hinge, Console (2)
22Harness, Main
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24Plug
25WP385421 Whirlpool Coin Operated Laundry Funnel
26WPL 717315
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
30WP3954812 Whirlpool Cushion
31WPW10461200 Whirlpool Case
323401126 Whirlpool Wire Harness
34W11715721 Whirlpool Screw Assembly
35279737 Whirlpool Dryer Load Timer
36WP3387974 Whirlpool Cam
36WP339855 Whirlpool Cam
36WP343777 Whirlpool Cam
373936144 Whirlpool Connector
39Lights, Indicator Assembly
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
45339805 Whirlpool Screw
46Wire, Ground
47WP3394427 Whirlpool Clip
51W10819767 Whirlpool Cover
52WP90767 Whirlpool Screw
53APlug, 3-Way
53WP3401850 Whirlpool Wire Harness
53CWP3403499 Whirlpool Connector
53BWP3403498 Whirlpool Connector
543347825 Whirlpool Plate
55W10841059 Whirlpool Screw
56WP90406 Whirlpool Nut
59W11315637 Whirlpool Lock Assembly
60Slide & Extension
61WP8576635 Whirlpool Bolt
62WPL 8316265
62W11126319 Whirlpool Washer Dryer Coin Chute
62Inserts (Not Shown
62W11190039 Whirlpool Coin Box Assembly
64WPL ARI144774A
65HARNS-WIRE
66WPL ARI144775A
673390424 Whirlpool Extension
68WPL 8316524
69WPL 8316532
70WPL 3400086
