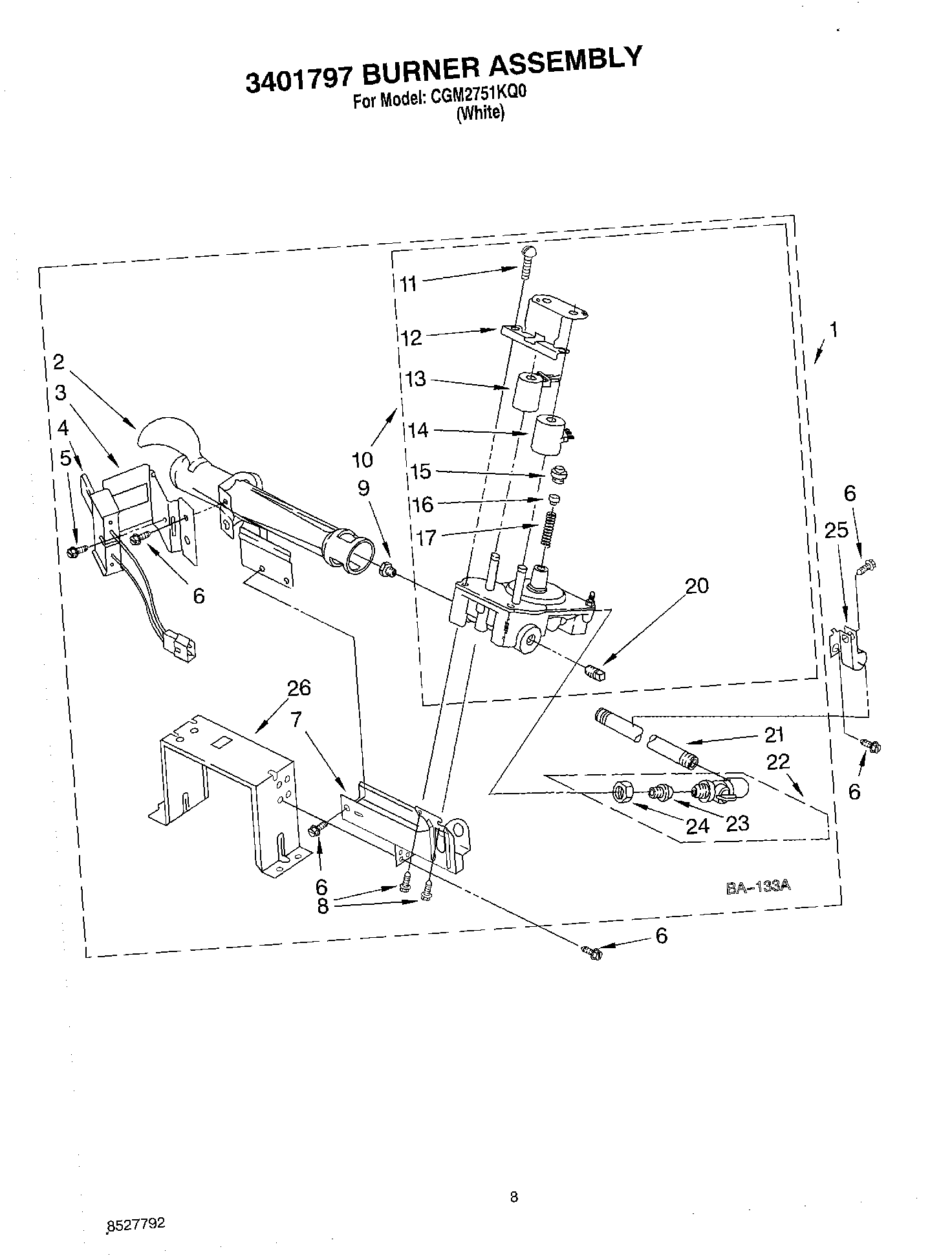

CGM2751KQ0 05 – 3401797 BURNER, OPTIONAL

Products

Position	Product
1	Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Base, Burner
8	WP693995 Whirlpool Screw
9	Orifice, Burner (Type 1)
9	Orifice, Burner (Type 2)
10	279923 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
20	W10295523 Whirlpool Plug
21	Pipe, Gas Supply
22	697441 Whirlpool Valve
23	3393767 Whirlpool Pipe
24	Nut, Compression
25	3387561 Whirlpool Clamp
26	49572A Whirlpool Dryer Propane Gas Conversion Kit
26	Bracket, Support
