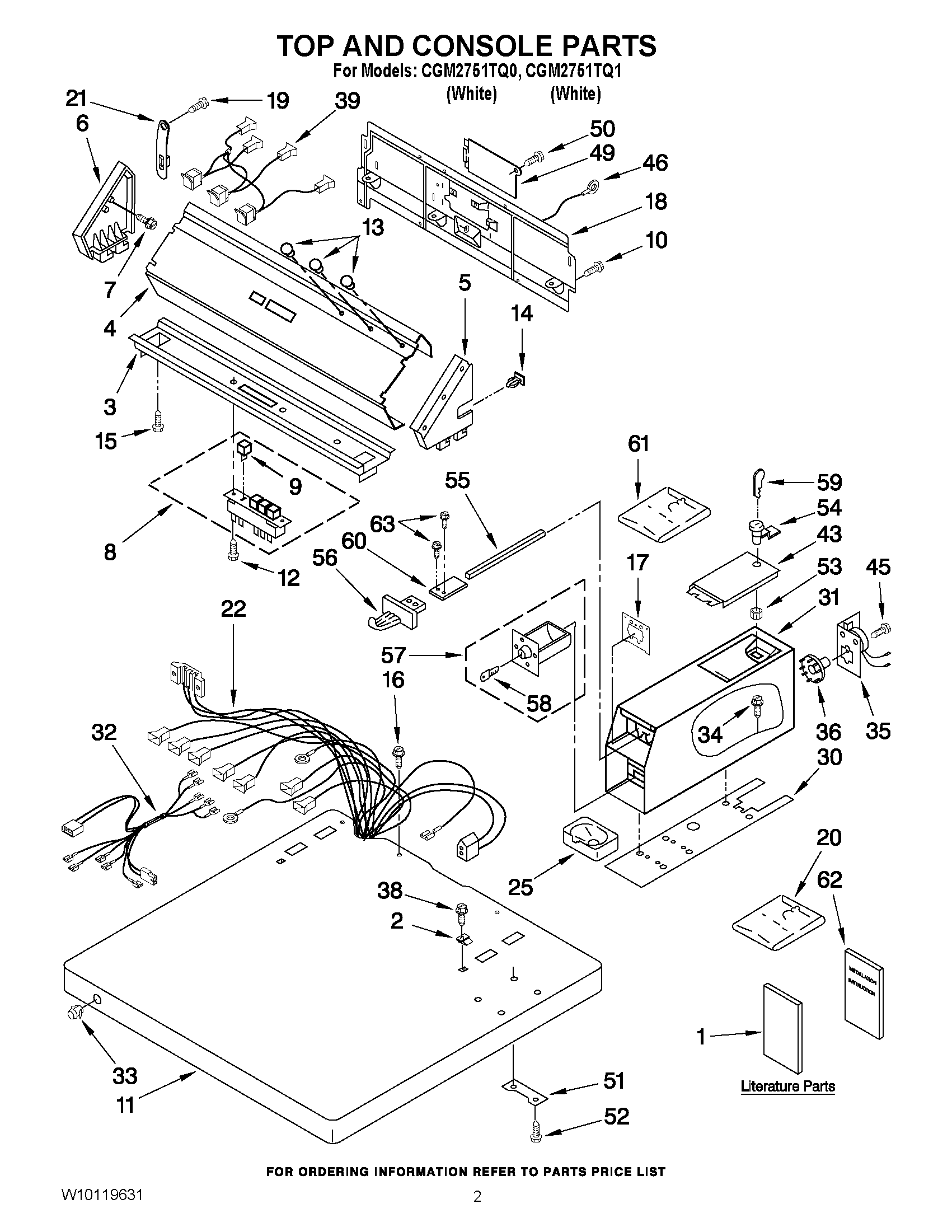

CGM2751TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Instructions Installation
1	Wiring Diagram
1	Repair Parts List
2	WP357213 Whirlpool Hinge Stopper
3	Bracket, Control
4	Panel, Control
5	Cap, End (R.H.)
6	W11686050 Whirlpool Drive Motor
7	WPW10109200 Whirlpool Screw
9	SWITCH-PB
10	WP693995 Whirlpool Screw
11	Top
12	WP489128 Whirlpool Refrigerator Screw
13	WP3348109 Whirlpool Light Lens
14	WP689559 Whirlpool Nut
16	SCREW
17	279950 Whirlpool Funnel
18	W11089934 Whirlpool Rear Panel
19	WP488729 Whirlpool Refrigerator Door Screw
20	WP3406965 Whirlpool Coin Chute
21	WP8568314 Whirlpool Strap
22	WP8529870 Whirlpool Wire Harness
25	WP385421 Whirlpool Coin Operated Laundry Funnel
30	WP3954812 Whirlpool Cushion
31	WPW10461200 Whirlpool Case
32	3401126 Whirlpool Wire Harness
33	WP387371 Whirlpool Plug
34	W11715721 Whirlpool Screw Assembly
35	W11451464 Whirlpool Dryer Timer
36	WP3387974 Whirlpool Cam
36	WP343777 Whirlpool Cam
38	WP8281182 Whirlpool Screw Assembly
39	Lights, Indicator Assembly
43	W11283272 Whirlpool Washer Dryer Meter Case Access Door
45	339805 Whirlpool Screw
46	Wire, Ground
49	W10819767 Whirlpool Cover
50	WP90767 Whirlpool Screw
51	3347825 Whirlpool Plate
52	W10841059 Whirlpool Screw
53	WP90406 Whirlpool Nut
54	W11315637 Whirlpool Lock Assembly
55	WP8576635 Whirlpool Bolt
56	WPL 8316265
56	W11126319 Whirlpool Washer Dryer Coin Chute
56	Inserts (Not Shown
57	W11190039 Whirlpool Coin Box Assembly
59	CABINET (NOT A SERVICEABLE PART)
60	3390424 Whirlpool Extension
61	WPL 8316524
62	WPL 8316532
63	WPL 3400086
