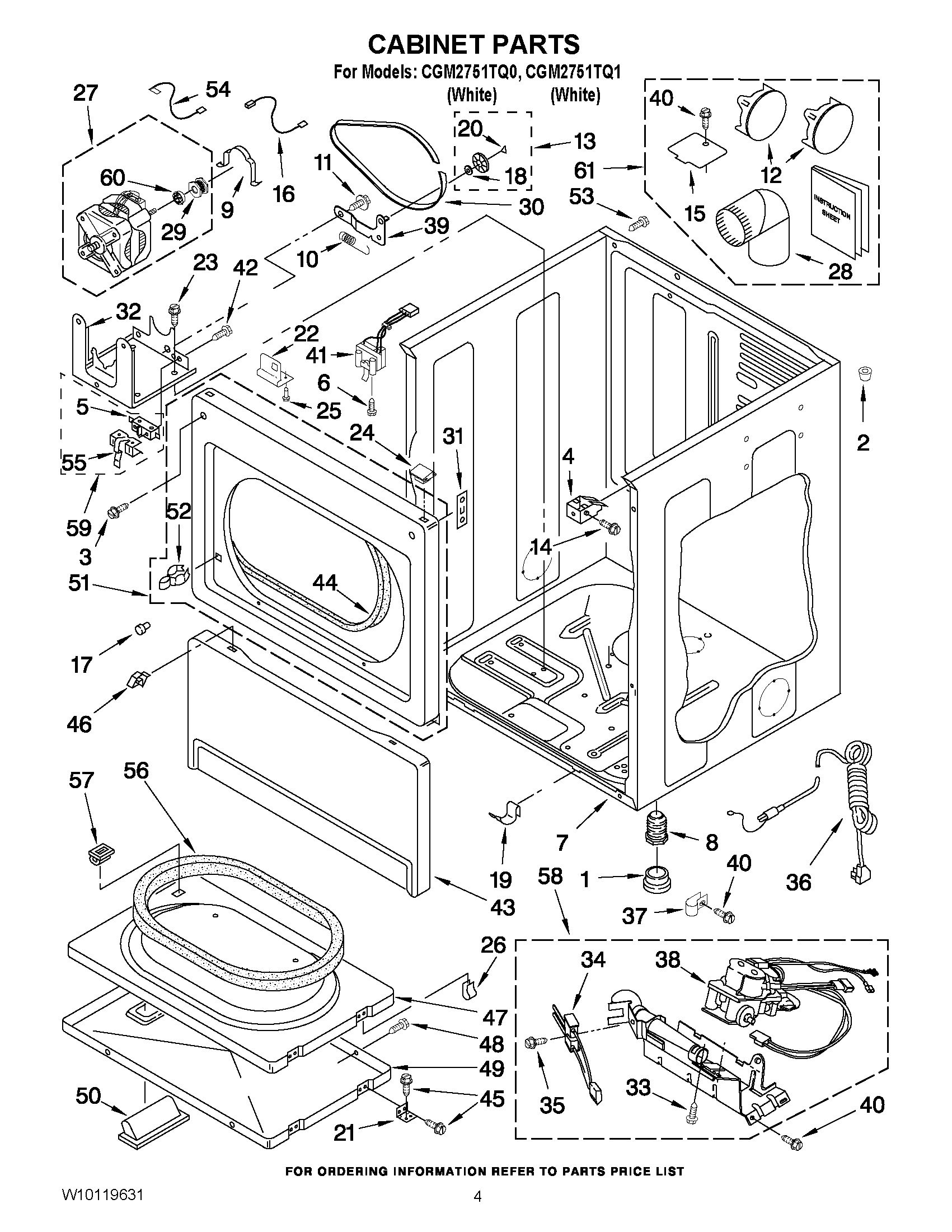

CGM2751TQ1 02 – CABINET PARTS

CGM2751TQ1 02 – CABINET PARTS

Written by

in

CGM2751TQ1 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WP3391943 Whirlpool Foot Boot
2WPL 356674
3Screw, 10-16 x 1/2
43391846 Whirlpool Clip
5279782 Whirlpool Lid Switch
6WP3395530 Whirlpool Screw
7W11417441 Whirlpool Cabinet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
14681615 Whirlpool Screw
15WPW10354249 Whirlpool Cover
16W10167612 Whirlpool Wire
17693152 Whirlpool Bumper
18WPW10121334 Whirlpool Washer
19WP297092 Whirlpool Clip
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21W11175815 Whirlpool Hinge
22Bracket, Lock
23SCREW
24WP345670 Whirlpool Lock
25Rivet (2)
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
284“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33WP693995 Whirlpool Screw
34279311 Whirlpool Dryer Flat Igniter with Bracket
35WPW10366705 Whirlpool Screw
36W11628810 Whirlpool Power Cord
373387561 Whirlpool Clamp
38279923 Whirlpool Gas Valve
39W10837240 Whirlpool Dryer Idler Pulley
40WP488729 Whirlpool Refrigerator Door Screw
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
43WP3406797 Whirlpool Toe Panel
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47280083 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W11663440 Whirlpool Door
50W11209427 Whirlpool Handle
51Front Panel
53W10850756 Whirlpool Screw
543398948 Whirlpool Wire
55WP8066120 Whirlpool Lever Assembly
56WP3390735 Whirlpool Door Seal
57279570 Whirlpool Dryer Door Latch Kit
58Burner Assembly 60 Hz. (Refer To Pages 8 & 9 For Further Breakdown)
60WP3393657 Whirlpool Belt Retainer
61W10470674 Whirlpool Dryer Side Vent Exhaust Kit
