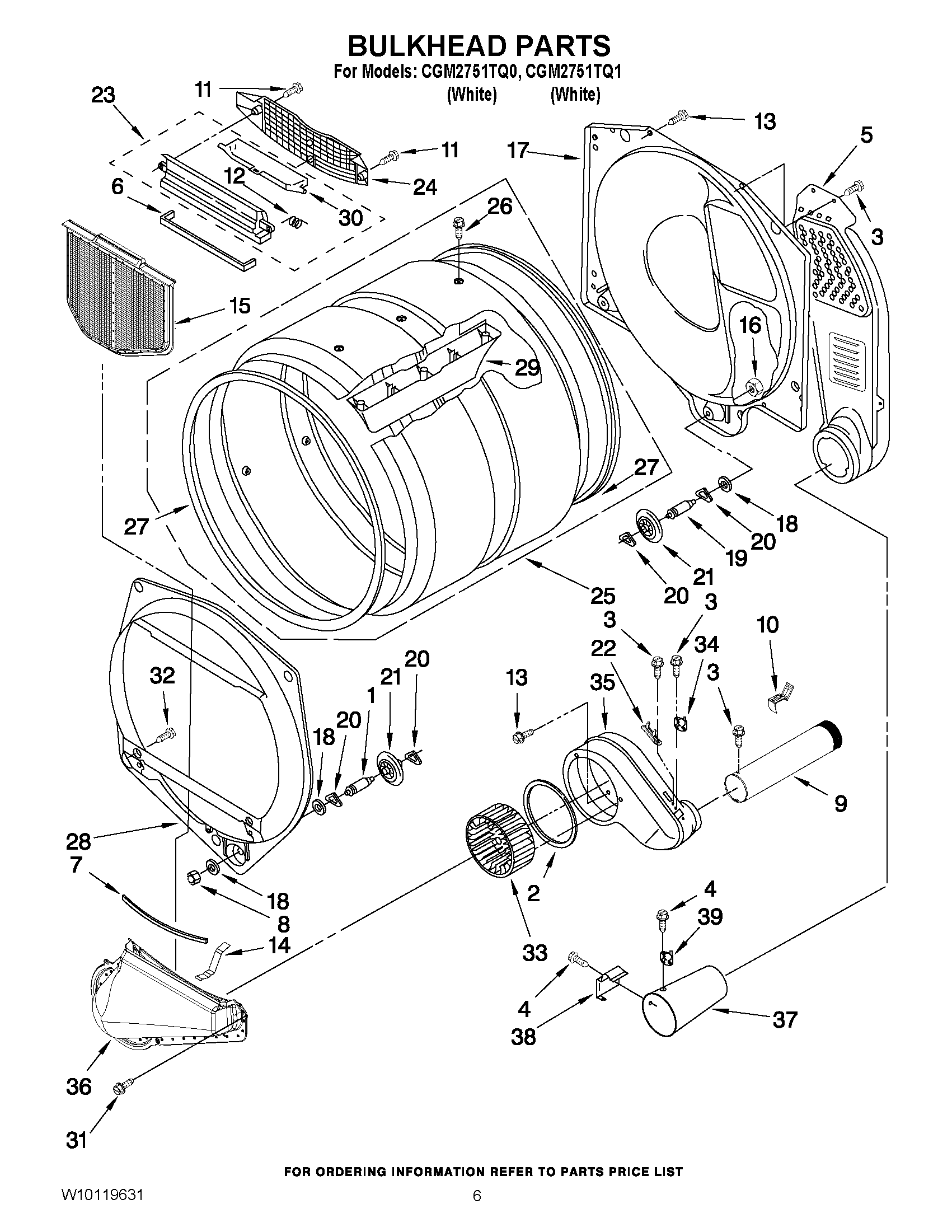

CGM2751TQ1 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP697770 Whirlpool Blower Cover Plate Seal
3	WP90767 Whirlpool Screw
5	W11168650 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	279936 Whirlpool Exhaust Pipe
10	W11684573 Whirlpool Clip Assembly
11	WP3387230 Whirlpool Screw
12	WP3394986 Whirlpool Spring
13	WP488729 Whirlpool Refrigerator Door Screw
14	WP8066208 Whirlpool Clip
15	W10120998 Whirlpool Dryer Lint Screen Filter
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP3392519 Whirlpool Dryer Thermal Fuse
23	W11129408 Whirlpool Out Housing
24	W11086603 Whirlpool Dryer Link Screen Air Grille
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WP697557 Whirlpool Bulkhead Assembly
29	WPW10113136 Whirlpool Drum Baffle
30	W11222846 Whirlpool Door
32	WP308685 Whirlpool Microwave Screw
33	WHEEL
34	WP3387138 Whirlpool Cycling Thermostat
35	W10888146 Whirlpool Housing
36	WPW10128606 Whirlpool Lint Duct
37	WP8066047 Whirlpool Funnel
38	WP338906 Whirlpool Dryer Gas Sensor
39	THRMST-FIX
