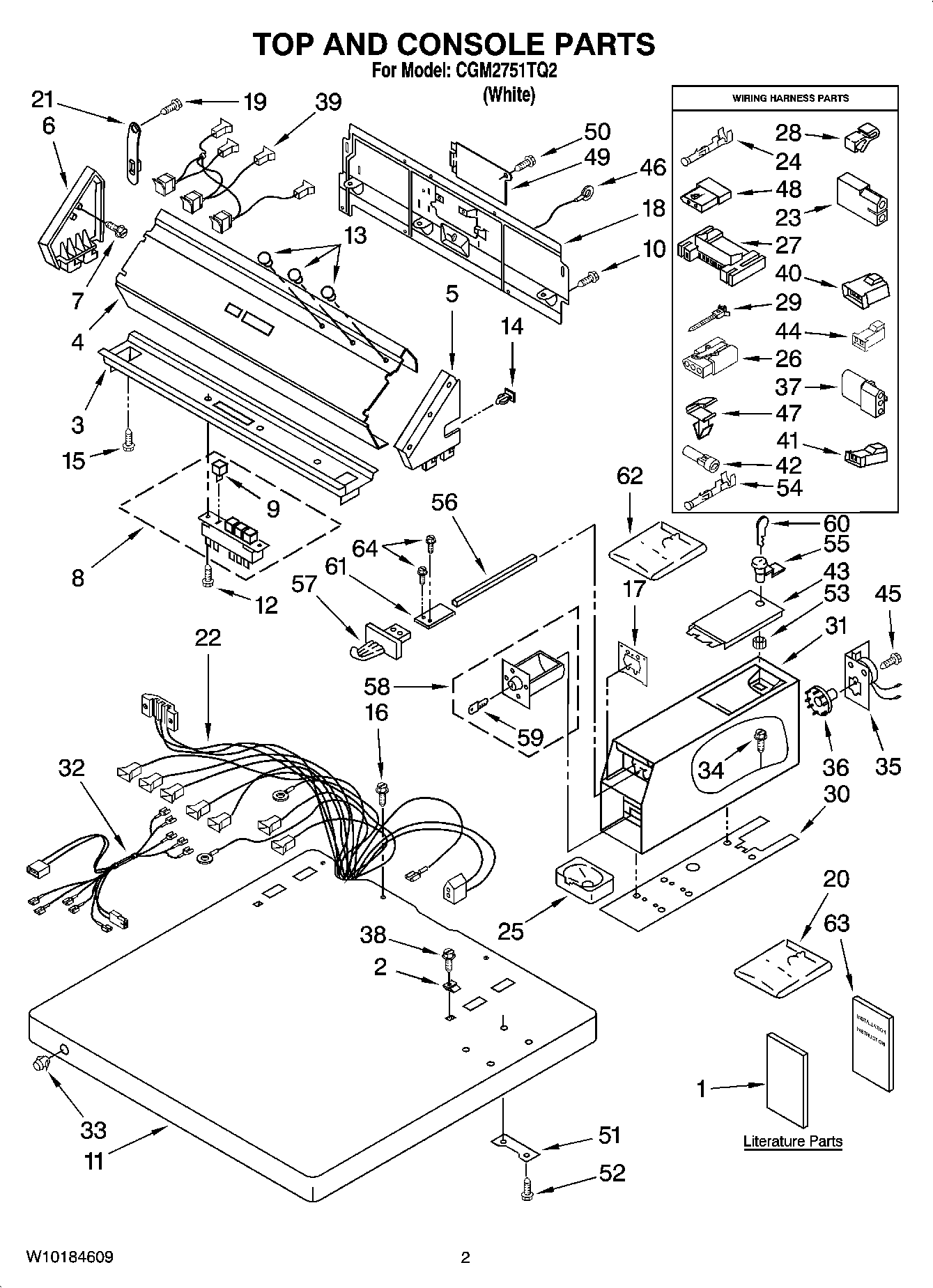

CGM2751TQ2 01 – TOP AND CONSOLE PARTS

CGM2751TQ2 01 – TOP AND CONSOLE PARTS

Written by

in

CGM2751TQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Repair Parts List
1Wiring Diagram
1Instructions, Installation
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
9SWITCH-PB
10WP693995 Whirlpool Screw
11Top
12WP489128 Whirlpool Refrigerator Screw
13WP3348109 Whirlpool Light Lens
14WP689559 Whirlpool Nut
16SCREW
17279950 Whirlpool Funnel
18W11089934 Whirlpool Rear Panel
19WP488729 Whirlpool Refrigerator Door Screw
20WP3406965 Whirlpool Coin Chute
21WP8568314 Whirlpool Strap
22WP8529870 Whirlpool Wire Harness
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24WP94614 Whirlpool Terminal
25WP385421 Whirlpool Coin Operated Laundry Funnel
26WPL 717315
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
30WP3954812 Whirlpool Cushion
31WPW10461200 Whirlpool Case
323401126 Whirlpool Wire Harness
33WP387371 Whirlpool Plug
33Top Lock
33Also Available
34W11715721 Whirlpool Screw Assembly
35W11451464 Whirlpool Dryer Timer
36WP339854 Whirlpool Cam
36WP339853 Whirlpool Cam
36WP339855 Whirlpool Cam
36WP343777 Whirlpool Cam
36WP3387974 Whirlpool Cam
373936144 Whirlpool Connector
38WP8281182 Whirlpool Screw Assembly
39Lights, Indicator Assembly
40WP3403498 Whirlpool Connector
41WP3403499 Whirlpool Connector
42Plug
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
44Receptacle
45339805 Whirlpool Screw
46Wire, Ground
47WP3394427 Whirlpool Clip
48WP717253 Whirlpool Dishwasher Connector
49W10819767 Whirlpool Cover
50WP90767 Whirlpool Screw
513347825 Whirlpool Plate
52W10841059 Whirlpool Screw
53WP90406 Whirlpool Nut
54WPL ARI144787A
54WP596797 Whirlpool Terminal
55W11315637 Whirlpool Lock Assembly
56WP8576635 Whirlpool Bolt
57WPL 8316265
57Inserts (Not Shown
57W11126319 Whirlpool Washer Dryer Coin Chute
58W11190039 Whirlpool Coin Box Assembly
59WPL ARI144788A
60WPL ARI144789A
613390424 Whirlpool Extension
62WPL 8316524
63WPL 8316532
64WPL 3400086
