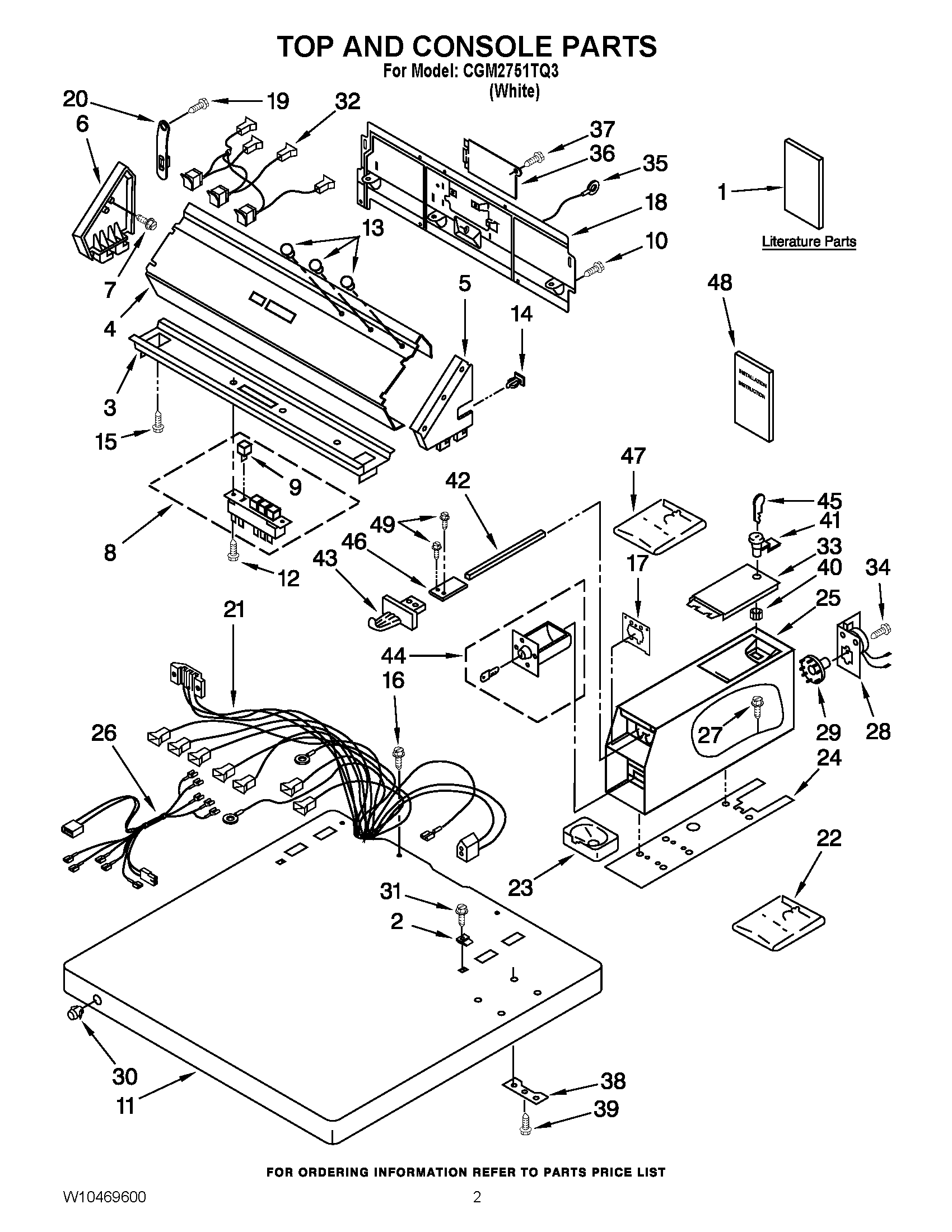

CGM2751TQ3 01 – TOP AND CONSOLE PARTS

Products

Position	Product
NI	Inserts (Not Shown
NI	WPL 8316265
1	REPAIR PARTS LIST
1	Wiring Diagram
1	Instructions, Installation
2	WP357213 Whirlpool Hinge Stopper
3	Bracket, Control
4	Panel, Control
5	Cap, End (R.H.)
6	W11686050 Whirlpool Drive Motor
7	WPW10109200 Whirlpool Screw
9	SWITCH-PB
10	WP693995 Whirlpool Screw
11	Top
12	WP489128 Whirlpool Refrigerator Screw
13	WP3348109 Whirlpool Light Lens
14	WP689559 Whirlpool Nut
16	SCREW
17	279950 Whirlpool Funnel
18	W11089934 Whirlpool Rear Panel
19	WP488729 Whirlpool Refrigerator Door Screw
20	WP8568314 Whirlpool Strap
21	WP8529870 Whirlpool Wire Harness
22	WP3406965 Whirlpool Coin Chute
23	WP385421 Whirlpool Coin Operated Laundry Funnel
24	WP3954812 Whirlpool Cushion
25	WPW10461200 Whirlpool Case
26	3401126 Whirlpool Wire Harness
27	W11715721 Whirlpool Screw Assembly
28	W11451464 Whirlpool Dryer Timer
29	WP3387974 Whirlpool Cam
29	WP343777 Whirlpool Cam
30	WP387371 Whirlpool Plug
31	WP8281182 Whirlpool Screw Assembly
32	Lights, Indicator Assembly
33	W11283272 Whirlpool Washer Dryer Meter Case Access Door
34	339805 Whirlpool Screw
35	GROUND WIRE
36	W10819767 Whirlpool Cover
37	WP90767 Whirlpool Screw
38	3347825 Whirlpool Plate
39	W10841059 Whirlpool Screw
40	WP90406 Whirlpool Nut
41	W11315637 Whirlpool Lock Assembly
42	WP8576635 Whirlpool Bolt
43	W11126319 Whirlpool Washer Dryer Coin Chute
44	W11190039 Whirlpool Coin Box Assembly
45	CABINET (NOT A SERVICEABLE PART)
46	3390424 Whirlpool Extension
47	WPL 8316524
48	WPL 8316532
49	WPL 3400086
