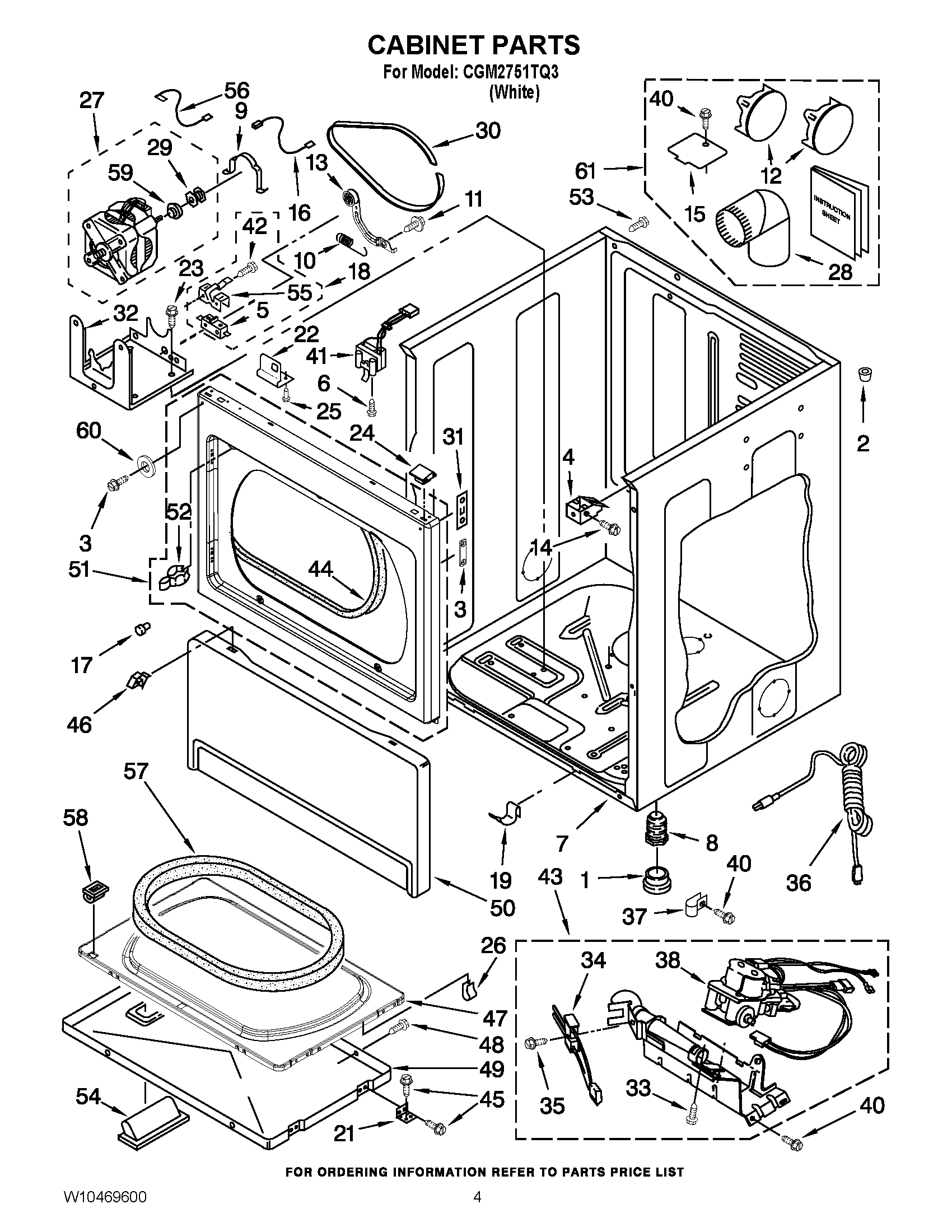

CGM2751TQ3 02 – CABINET PARTS

CGM2751TQ3 02 – CABINET PARTS

Written by

in

CGM2751TQ3 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
NIW10470674 Whirlpool Dryer Side Vent Exhaust Kit
1WP3391943 Whirlpool Foot Boot
2WPL 356674
3W10191265 Whirlpool Plug
43391846 Whirlpool Clip
5279782 Whirlpool Lid Switch
6WP3395530 Whirlpool Screw
7W11417441 Whirlpool Cabinet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13WPW10344193 Whirlpool Idler Pulley
14681615 Whirlpool Screw
15WPW10354249 Whirlpool Cover
16W10167612 Whirlpool Wire
17693152 Whirlpool Bumper
19WPW10291934 Whirlpool Clip
21WPW10279703 Whirlpool Hinge Assembly
22Bracket, Lock
23SCREW
24WP345670 Whirlpool Lock
25Rivet (2)
26Nut, “U“ (4)
27W10841144 Whirlpool Drive Motor
284“ – 90 Elbow Optional Parts Not Included Dryer Exhaust Kit (For Side
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31WP3390902 Whirlpool Clip
32WP3387118 Whirlpool Base Assembly
33WP693995 Whirlpool Screw
34279311 Whirlpool Dryer Flat Igniter with Bracket
35WPW10366705 Whirlpool Screw
36W11222083 Whirlpool Power Cord
373387561 Whirlpool Clamp
38279923 Whirlpool Gas Valve
40WP488729 Whirlpool Refrigerator Door Screw
41SWITCH-DOOR DRYER
42WP98129 Whirlpool Screw
43BURNER ASSEMBLY 60 HZ. (REFER TO PAGES 8 & 9 FOR FURTHER BREAKDOWN)
44WP3387242 Whirlpool Seal
45WP488627 Whirlpool Refrigerator Screw
46WP3388229 Whirlpool Dryer Spring Clip
47280083 Whirlpool Rear Door
48WP694091 Whirlpool Screw
49W11663440 Whirlpool Door
50WP3406797 Whirlpool Toe Panel
51W10242810 Whirlpool Panel
53W10850756 Whirlpool Screw
543389522 Whirlpool Handle
55WP8066120 Whirlpool Lever Assembly
563398948 Whirlpool Wire
57WP3390735 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
59WP3393657 Whirlpool Belt Retainer
60Washer
