CGM2751TQ3 04 – BURNER ASSEMBLY
Written by
in

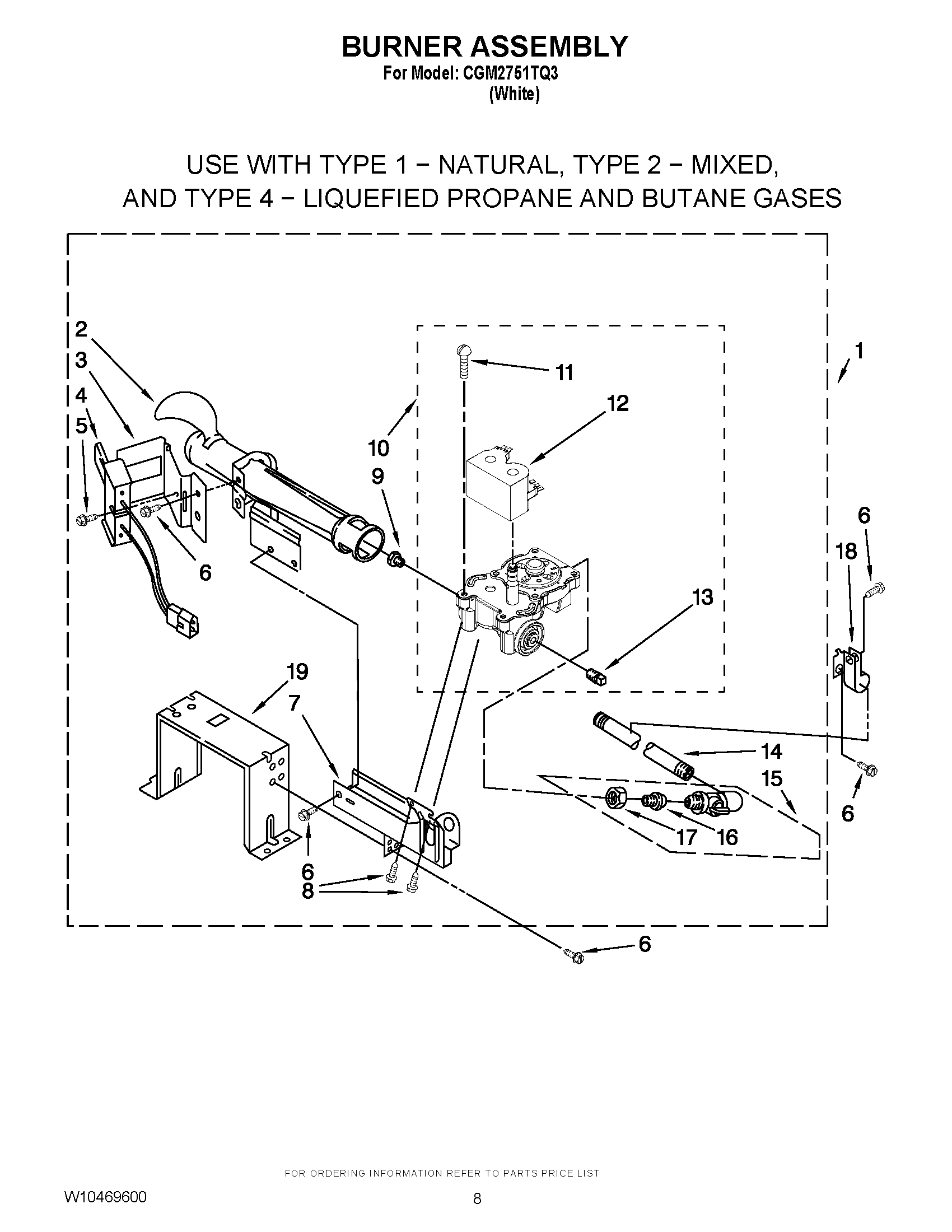

CGM2751TQ3 04 – BURNER ASSEMBLY
Products
Position
Product
NI
49572A Whirlpool Dryer Propane Gas Conversion Kit
1
BURNER ASSEMBLY 60 HZ. (REFER TO PAGES 8 & 9 FOR FURTHER BREAKDOWN)
2
WP693140 Whirlpool Burner
3
WP694298 Whirlpool Bracket
4
279311 Whirlpool Dryer Flat Igniter with Bracket
5
WPW10366705 Whirlpool Screw
6
SCREW
7
Base, Burner
8
WP693995 Whirlpool Screw
9
Orifice, Burner (Type 1)
9
WP234868 Whirlpool Gas Orifice
10
279923 Whirlpool Gas Valve
11
326049536 Whirlpool Screw
12
WPW10328463 Whirlpool Valve Coil
13
W10295523 Whirlpool Plug
14
W10110395 Whirlpool Pipe
15
697441 Whirlpool Valve
16
3393767 Whirlpool Pipe
17
Nut, Compression
18
3387561 Whirlpool Clamp
19
Bracket, Support
←
