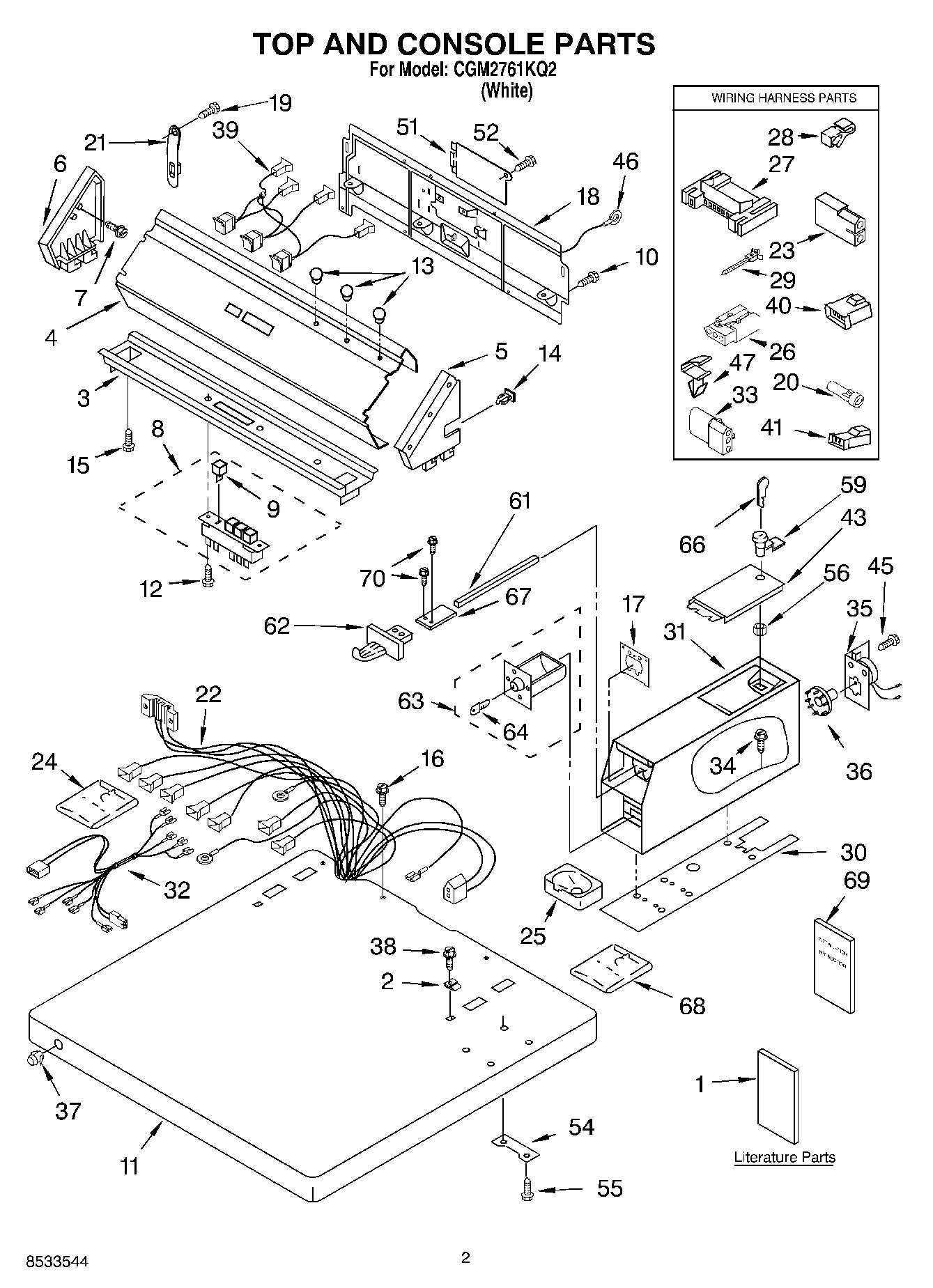

CGM2761KQ2 01 – TOP AND CONSOLE PARTS

CGM2761KQ2 01 – TOP AND CONSOLE PARTS

Written by

in

CGM2761KQ2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Literature Parts (Wiring Diagram)
1Literature Parts (Instructions. Installation)
1Literature Parts (Repair Parts List)
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
9SWITCH-PB
10WP693995 Whirlpool Screw
11Top
12WP489128 Whirlpool Refrigerator Screw
13WP3348109 Whirlpool Light Lens
14WP689559 Whirlpool Nut
15WPW10139210 Whirlpool Screw
16SCREW
17279950 Whirlpool Funnel
18W11089934 Whirlpool Rear Panel
19WP488729 Whirlpool Refrigerator Door Screw
20Plug
21WP8568314 Whirlpool Strap
22WP8529870 Whirlpool Wire Harness
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24WP3406965 Whirlpool Coin Chute
25WP385421 Whirlpool Coin Operated Laundry Funnel
26WPL 717315
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
30WP3954812 Whirlpool Cushion
31WPW10461200 Whirlpool Case
323401126 Whirlpool Wire Harness
333936144 Whirlpool Connector
34W11715721 Whirlpool Screw Assembly
35279737 Whirlpool Dryer Load Timer
36WP339853 Whirlpool Cam
36WP339854 Whirlpool Cam
36WP3387974 Whirlpool Cam
36WP339855 Whirlpool Cam
36WP343777 Whirlpool Cam
37WP387371 Whirlpool Plug
37Top Lock
38WP8281182 Whirlpool Screw Assembly
39Lights, Indicator Assembly
40WP3403498 Whirlpool Connector
41WP3403499 Whirlpool Connector
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
45339805 Whirlpool Screw
46Wire, Ground
47WP3394427 Whirlpool Clip
51W10819767 Whirlpool Cover
52WP90767 Whirlpool Screw
543347825 Whirlpool Plate
55W10841059 Whirlpool Screw
56WP90406 Whirlpool Nut
59W11315637 Whirlpool Lock Assembly
61WP8576635 Whirlpool Bolt
62W11126319 Whirlpool Washer Dryer Coin Chute
62Inserts (Not Shown
62WPL 8316265
63W11190039 Whirlpool Coin Box Assembly
64WPL ARI144799A
66WPL 67001048
673390424 Whirlpool Extension
68WPL 8316524
69WPL 8316532
70WPL 3400086
70WPL B0592401
70WPL C4889201
