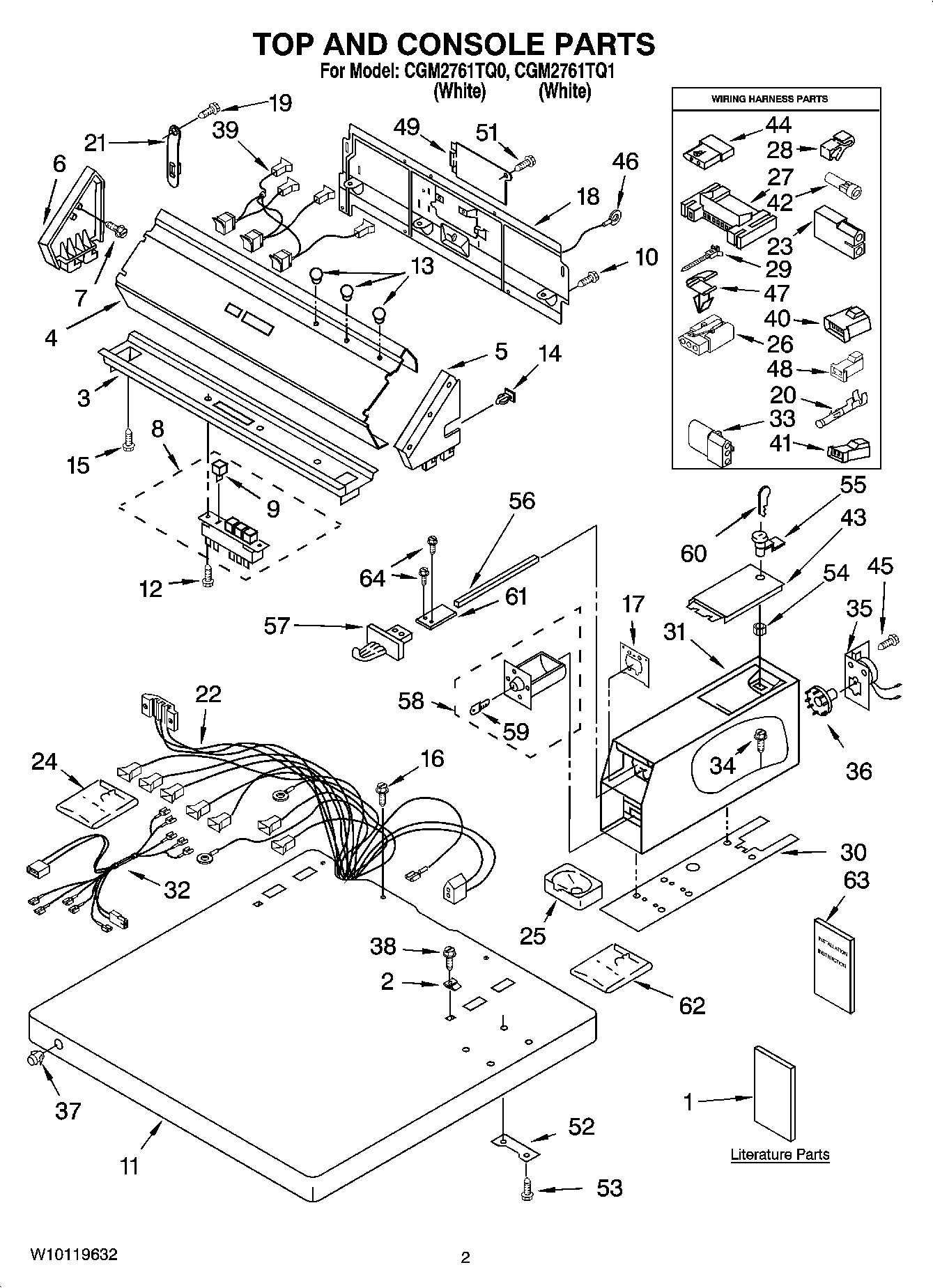

CGM2761TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Instructions Installation
1	Wiring Diagram
1	Repair Parts List
2	WP357213 Whirlpool Hinge Stopper
3	Bracket, Control
4	Panel, Control
5	Cap, End (R.H.)
6	W11686050 Whirlpool Drive Motor
7	WPW10109200 Whirlpool Screw
9	SWITCH-PB
10	WP693995 Whirlpool Screw
11	Top
12	WP489128 Whirlpool Refrigerator Screw
13	WP3348109 Whirlpool Light Lens
14	WP689559 Whirlpool Nut
16	SCREW
17	279950 Whirlpool Funnel
18	W11089934 Whirlpool Rear Panel
19	WP488729 Whirlpool Refrigerator Door Screw
20	WP94614 Whirlpool Terminal
21	WP8568314 Whirlpool Strap
22	WP8529870 Whirlpool Wire Harness
23	Receptacle, Latching (2-Way) (Uses Terminal 94614)
24	WP3406965 Whirlpool Coin Chute
25	WP385421 Whirlpool Coin Operated Laundry Funnel
26	WPL 717315
27	3395683 Whirlpool Connector
28	W10113937 Whirlpool Clamp
29	WP3391018 Whirlpool Wire Tie
30	WP3954812 Whirlpool Cushion
31	WPW10461200 Whirlpool Case
32	3401126 Whirlpool Wire Harness
33	3936144 Whirlpool Connector
34	W11715721 Whirlpool Screw Assembly
35	W11451464 Whirlpool Dryer Timer
36	WP343777 Whirlpool Cam
36	WP339855 Whirlpool Cam
36	WP339853 Whirlpool Cam
36	WP339854 Whirlpool Cam
36	WP3387974 Whirlpool Cam
37	Also Available
37	Top Lock
37	WP387371 Whirlpool Plug
38	WP8281182 Whirlpool Screw Assembly
39	Lights, Indicator Assembly
40	WP3403498 Whirlpool Connector
41	WP3403499 Whirlpool Connector
42	Plug
43	W11283272 Whirlpool Washer Dryer Meter Case Access Door
44	WP717253 Whirlpool Dishwasher Connector
45	339805 Whirlpool Screw
46	Wire, Ground
47	WP3394427 Whirlpool Clip
48	Receptacle
49	W10819767 Whirlpool Cover
51	WP90767 Whirlpool Screw
52	3347825 Whirlpool Plate
53	W10841059 Whirlpool Screw
54	WPL ARI144805A
54	WP90406 Whirlpool Nut
55	W11315637 Whirlpool Lock Assembly
56	WP8576635 Whirlpool Bolt
57	W11126319 Whirlpool Washer Dryer Coin Chute
57	Inserts (Not Shown
57	WPL 8316265
58	W11190039 Whirlpool Coin Box Assembly
59	WPL ARI144806A
60	WPL ARI144807A
61	3390424 Whirlpool Extension
62	WPL 8316524
63	WPL 8316532
64	WP3400029 Whirlpool Dishwasher Nut
