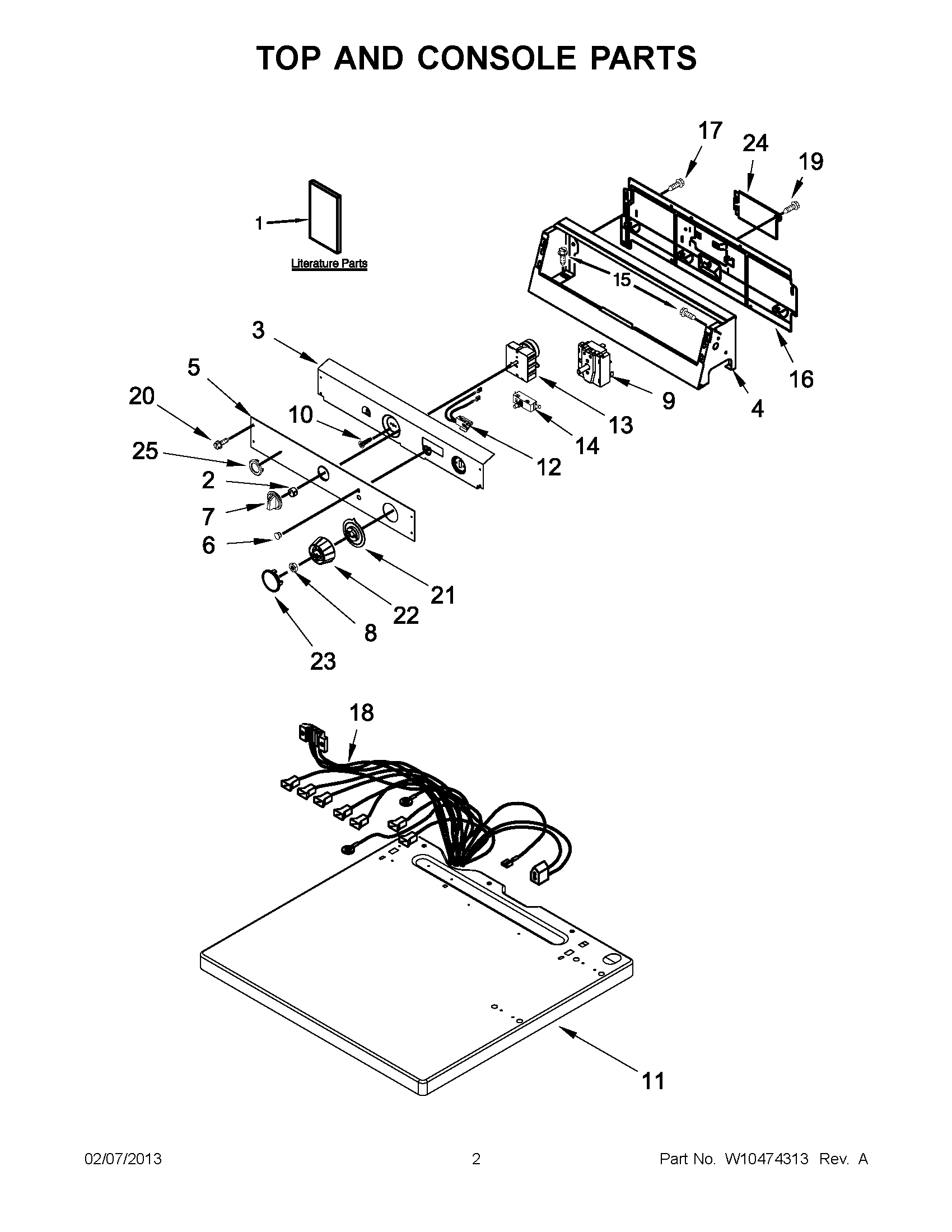

CGM2793BQ0 01 – TOP AND CONSOLE PARTS

CGM2793BQ0 01 – TOP AND CONSOLE PARTS

Written by

in

CGM2793BQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
2Clip, Knob
3BACK BRACKET, NON-COIN
4W11124005 Whirlpool Console
5W10461114 Whirlpool Overlay
6WPW10133502 Whirlpool Lens
7W10492415 Whirlpool Knob
8W10155650 Whirlpool Nut
9WPW10157942 Whirlpool Timer
10SCREW
11W10492414 Whirlpool Top
12W10662107 Whirlpool Light Bulb
13WPW10327105 Whirlpool Cycle Switch
14W11097274 Whirlpool Push-To-Start Switch
15WP90767 Whirlpool Screw
16285909 Whirlpool Rear Panel
17WP488729 Whirlpool Refrigerator Door Screw
18HARNESS, MAIN
19303776 Whirlpool Dishwasher Screw
20WPW10131119 Whirlpool Screw
21W10492417 Whirlpool Dial
22W10492416 Whirlpool Knob
23CAP, KNOB
24W10819767 Whirlpool Cover
25W10510149 Whirlpool Bezel
